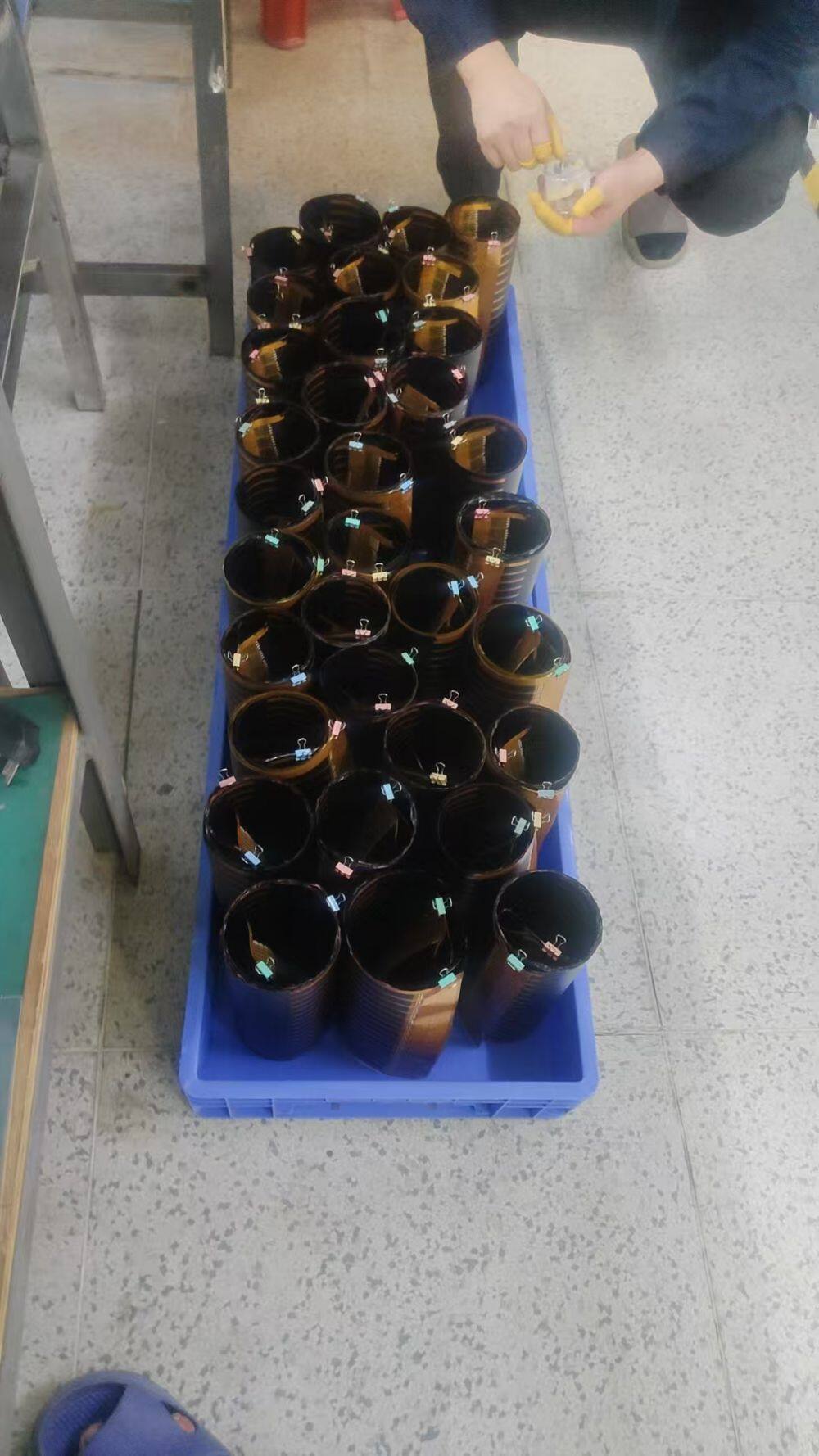

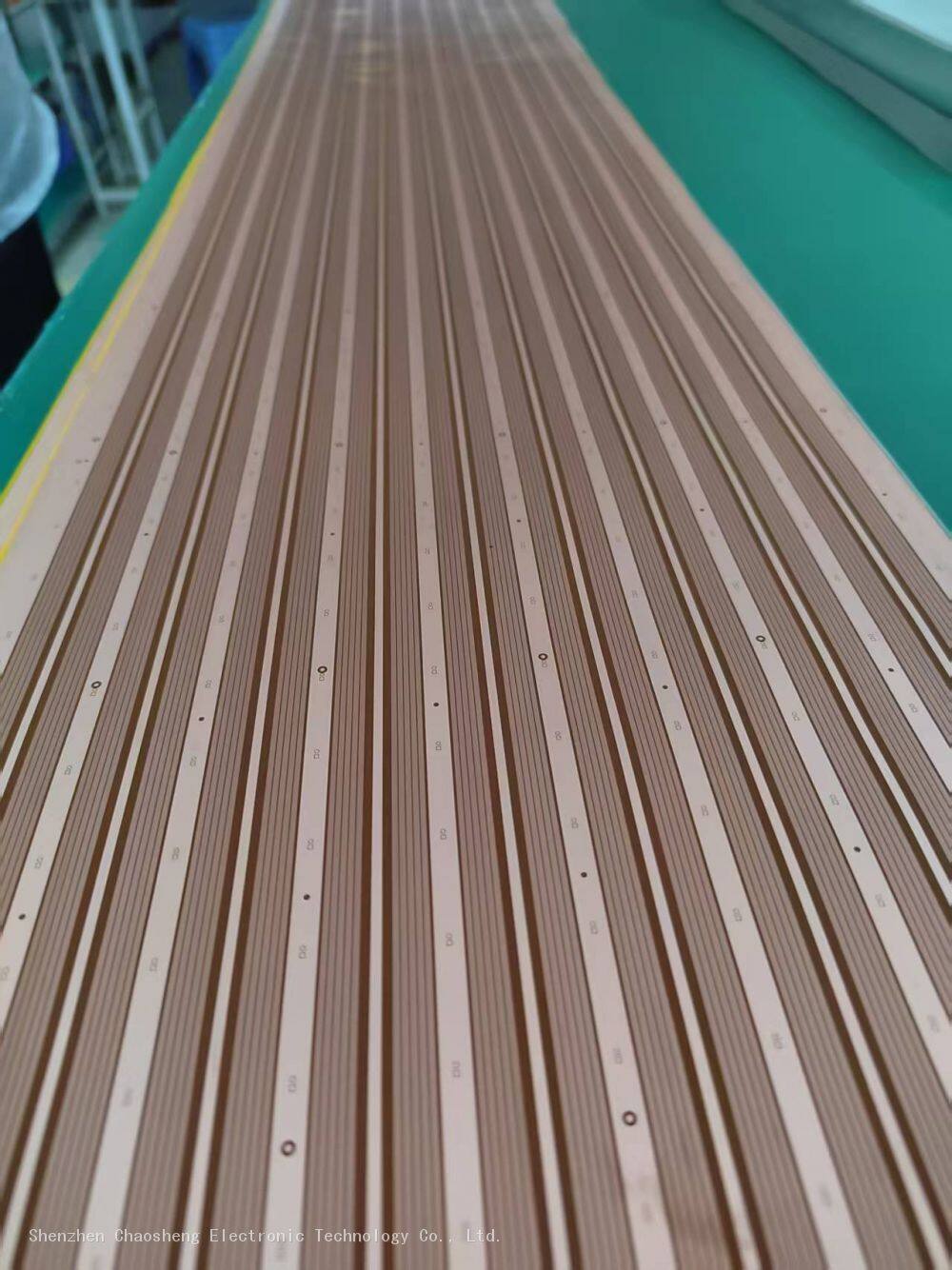

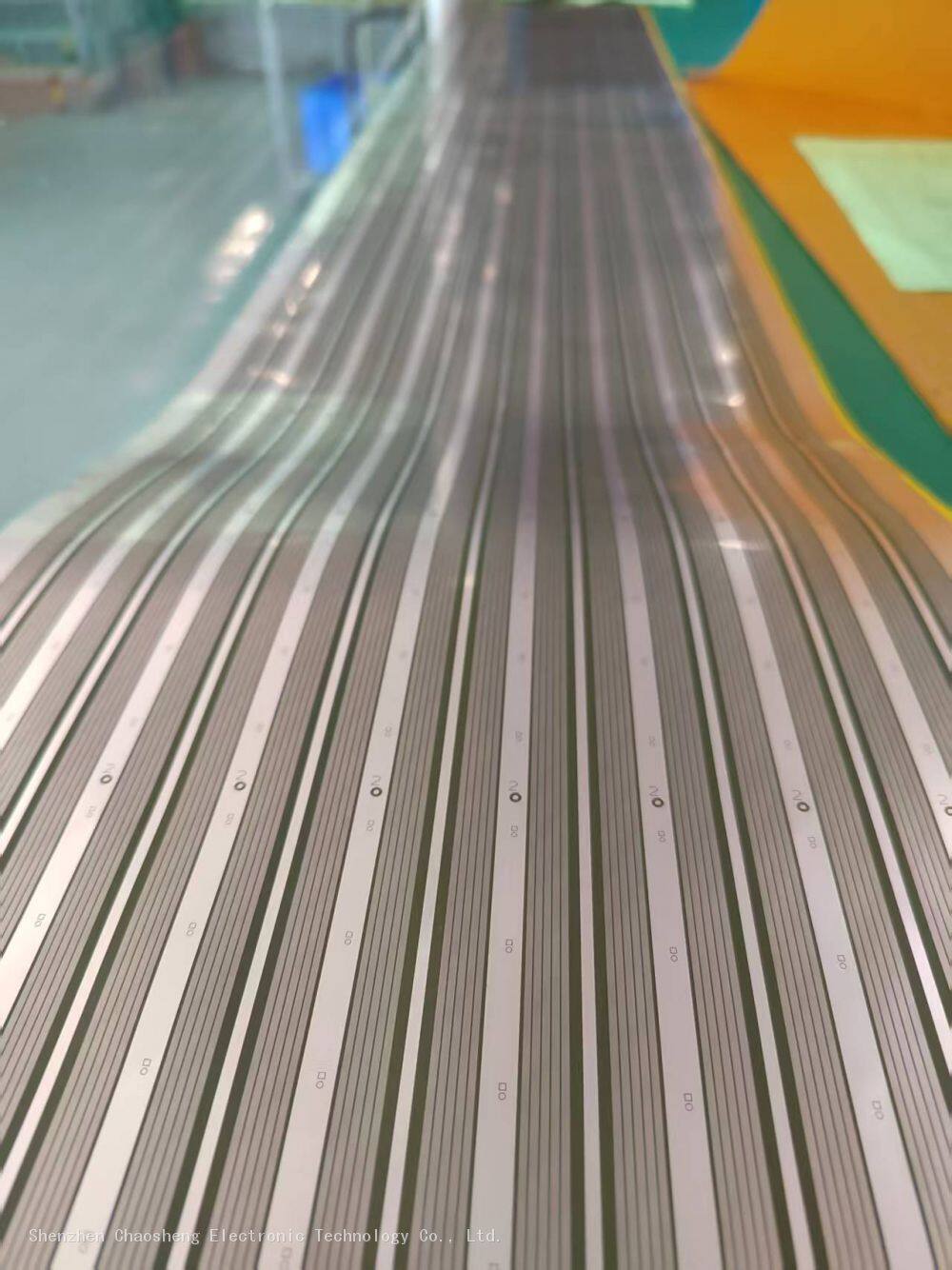

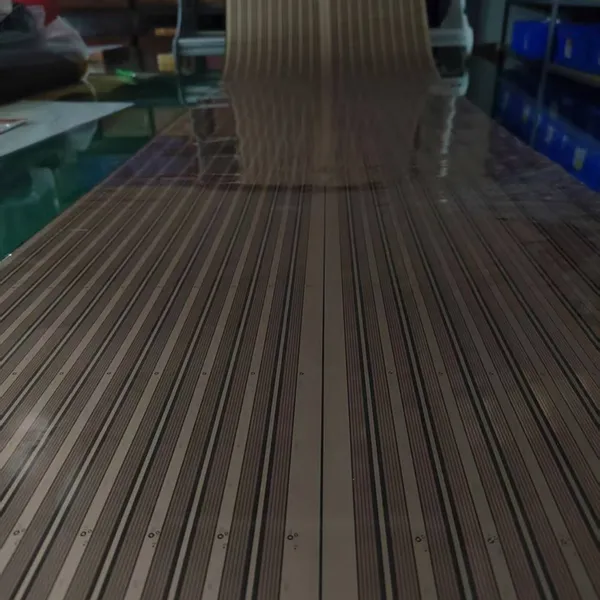

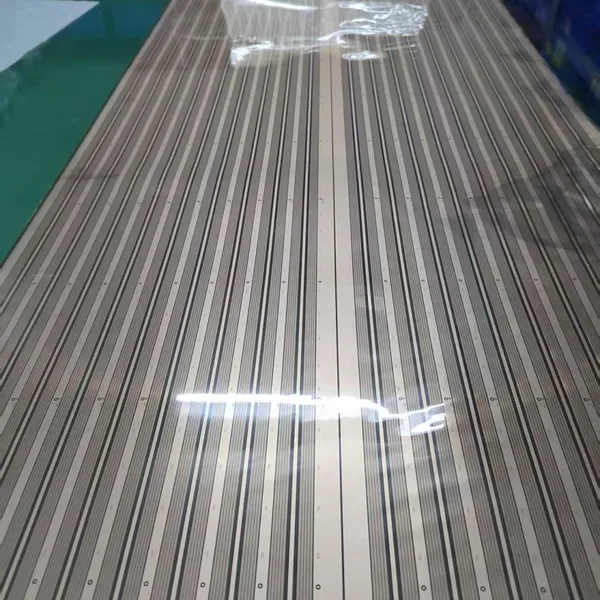

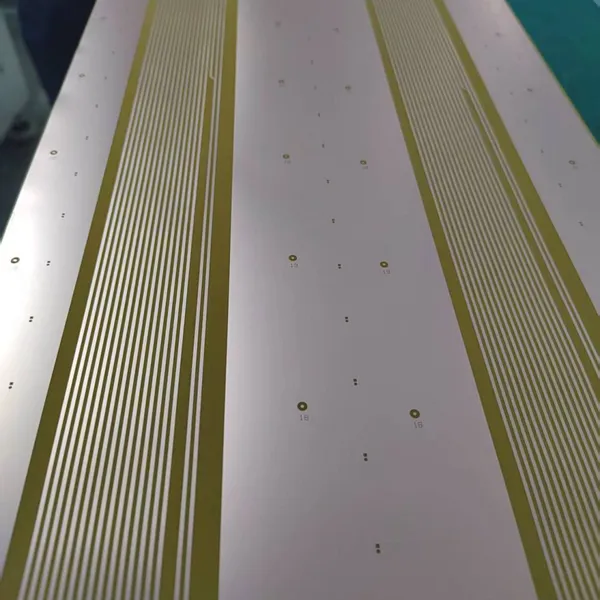

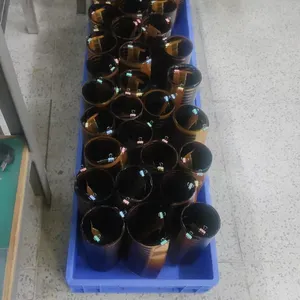

Product Name: Large size flexible FPC
Board: Flexible board PI substrate
Layer: 2-layer roll to roll flexible FPC copper thickness 70um, 150 meters long
Minimum line width/spacing: 6/5mil
Finished product size: 500x21500mm/1 * 1pcs
Surface technology: yellow film, osp
Copper thickness: 70um
Plate thickness: Soft 0.15mm
Features: Direct assembly without bridging, high degree of automation, labor-saving finished products, and stable product quality.
Usage: Automotive lights LED、 Backlight source, LED strip, IoT label, new energy battery, transparent screen, etc
Explanation: The size and copper thickness of the flexible FPC for roll to roll can be adjusted according to your company's thickness. We can produce up to 500mm wide for roll to roll, and we can produce any length. We recommend a total length of no more than 150 meters. We can choose from roll to roll printing and solder mask (white, green, black), etc. We can help you with SMT and shipping for roll to roll.
1-layer roll to roll flexible FPC (copper thickness 35um, 50 meters long)
1-layer roll to roll flexible FPC (copper thickness 70um, 50 meters long)
1-layer roll to roll flexible FPC (copper thickness 70um, 100 meters long)
1-layer roll to roll flexible FPC (copper thickness 35um, 100 meters long)
1-layer roll to roll flexible FPC (copper thickness 35um, 150 meters long)
1-layer roll to roll flexible FPC (copper thickness 70um, 150 meters long)
2-layer roll to roll flexible FPC (copper thickness 35um, 50 meters long)
2-layer roll to roll flexible FPC (copper thickness 70um, 50 meters long)
2-layer roll to roll flexible FPC (copper thickness 70um, 100 meters long)
2-layer roll to roll flexible FPC (copper thickness 35um, 100 meters long)
2-layer roll to roll flexible FPC (copper thickness 35um, 150 meters long)
2-layer roll to roll flexible FPC (copper thickness 70um, 150 meters long)
2-layer thick copper coil paired with flexible FPC
Main Product Structure of Chaosheng Group Company
2-80 layers of rigid circuit boards, 2-50 layers of flexible circuit boards and PCBA production
Chaosheng Group Company mainly produces product categories
High end double-sided, multi-layer, flexible, high-frequency, HDI interconnect, metal based, high thermal conductivity metal based, ceramic, cut in metal based, cut in buried capacitor, cut in thick copper buried magnet, concave convex step substrate, 5G high-speed board, thick copper, thick gold, high carbon resistance, double-sided multi-layer MiNiLED, MiNiHDILED, MiNiOLED, IC carrier substrate, roll to roll FPC, long FPC, large-sized printed circuit board, halogen-free material, high-frequency material, high-speed material, metal material, environmentally friendly circuit board, blind buried hole circuit board, high thermal conductivity aluminum based, thermoelectric separation copper based, PDU busbar, iron-based and metal based (core) mixed pressure plate, embedded copper buried copper. Buried resistance buried capacitance buried ceramic bead board, ultra-thin BT board, ceramic substrate, IC carrier board, high-frequency mixed voltage, high-speed board, differential impedance board, thick copper plate, thick gold plated board, HDI An integrated OEM and ODM production factory for Anylayer, double-sided, multi-layer, HDI FPC, soft hard combination HDI, roll to roll FPC, ultra long FPC, ultra large size PCB production and product design and development, software development, special material printed circuit boards, etc.
The main application areas of PCB and PCBA products of Chaosheng Group Company
Communication terminals, communication stations, electronic communication, fiber optics, optical modules, backlight sources, chip systems, communication equipment, communication instruments, computers, intelligent devices, intelligent control, system control, industrial power control, industrial equipment, testing instruments, testing instruments, SD cards, SG cards, mobile phones, computers, various antennas, radars, automobiles, light sources, resistors, music equipment, playback equipment, banking equipment, medical instruments, medical equipment, aerospace, aviation, military, LED, OLED, OLCD power control power supply, industrial power supply, communication power supply, automotive power supply, office equipment, digital products, computers and other application fields;
The main application areas of flexible circuit boards (FPC) and FPCA products of Chaosheng Group Company
Hard drives, printers, fax machines, scanners, sensors, mobile phones, connectors, modules, walkie talkie antenna cards, high-end cameras, digital cameras, laser heads, CDs, medical devices, instruments, drives, automobiles, automotive instruments, automotive drive disks, drivers, optical drives, medical devices, medical equipment, backlight sources, modules, banking equipment, industrial instruments, LED light strips, military, aviation, aerospace, national defense and other product fields.
