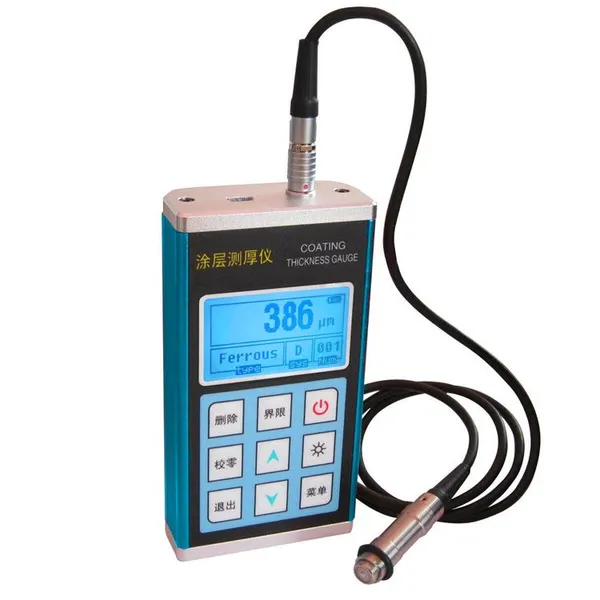

HST300 Aluminum Chrome Copper Enamel Paint Coating Thickness Gauge
1. Main function:
*HST300 is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);
*Various probes optional, probe auto matching;
*Durable ruby probe, more wear and precise;
*Full metal shell design, sturdy, portable, high reliability;
*Alarm function when overrun the settable limiting range;
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;
*Large storage, easy to delete single or multiple saved values;
*PC software optional, convenient the data transmission, analysis, printing etc.
2. Technology Parameter:
|
Measuring Range |
Standard 0~1250μm (MAX 10000μm with probe F10) |
|
Resolution |
0.1μm/1μm |
|
Working Principle |
Magnetic & Eddy |
|
Substrate |
FE / NFe base, depends on probes |
|
Accuracy |
±2%H+1μm Note: H is thickness reading |
|
Display |
128x64 LCD with backlight |
|
Memory |
5 files x 99 values |
|
Unit Switch |
Metric (μm) Imperial (mil) |
|
Working Temperature |
Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C |
|
Power |
AA battery 2pcs (Non-aviation transport) |
|
Size |
125x67x31mm |
|
Weight |
340g |
