This model has a stroke length of 500mm. If you need other different stroke lengths, please contact the customer service. The model number is: ZLP-S-500MM-R, where ZLP represents the Zhalipu brand; S represents the small stroke grid; 500mm represents the stroke; R represents the resistance output. The prices of this product with a length of 1.2 meters or less are the same.

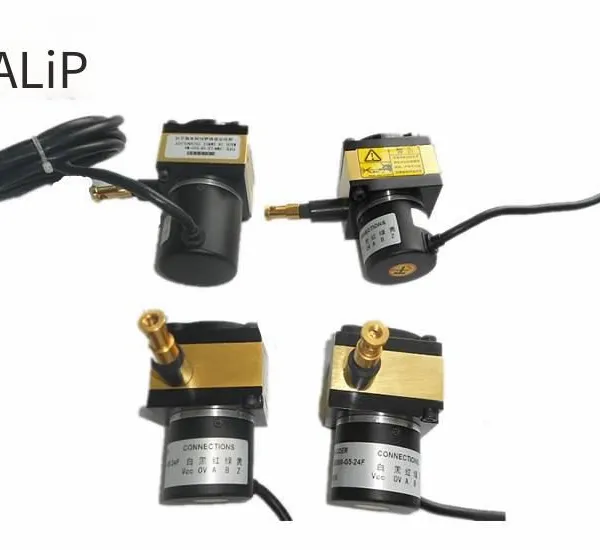

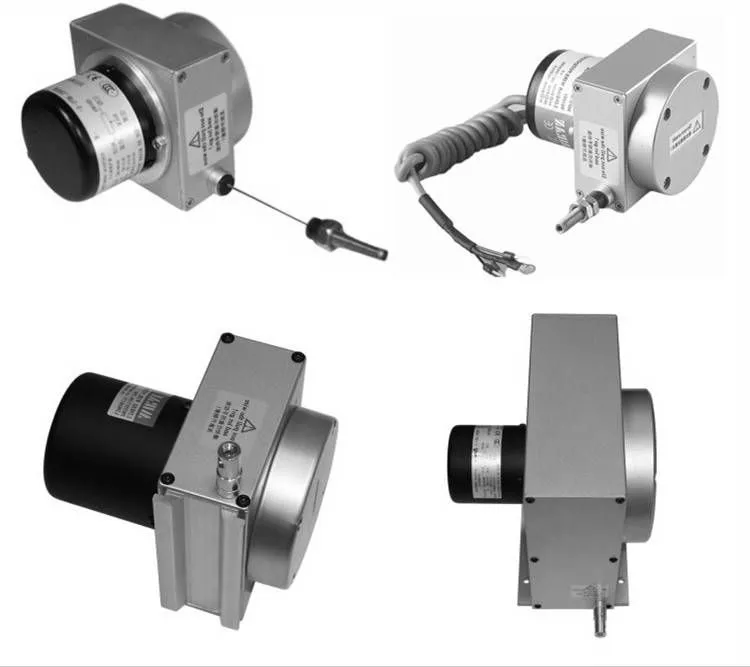

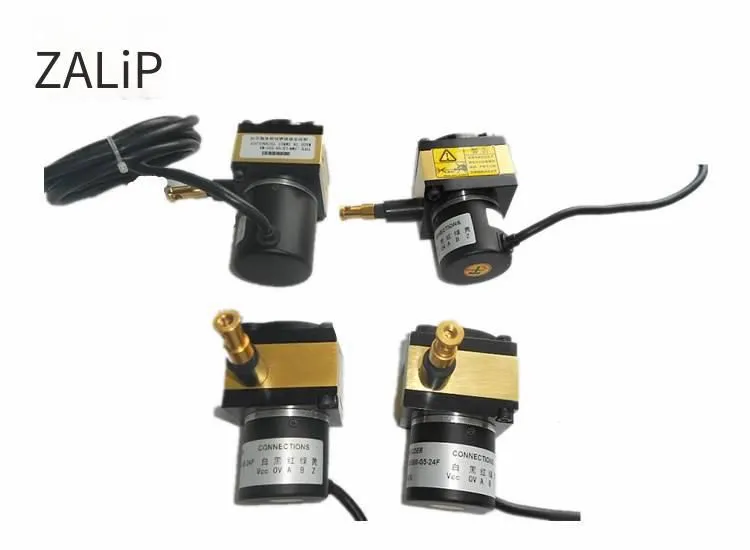

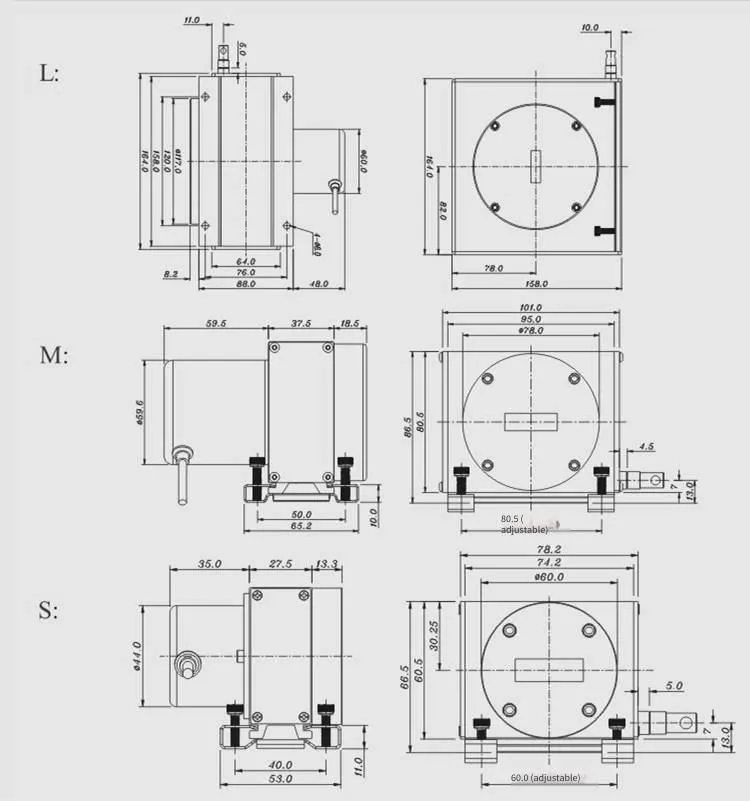

The ZALIP Zhalipu ZLP series pull - rope displacement sensors are characterized by a compact structure, small installation space, and high sensitivity. The protection level is IP65. Both the housing and the wire wheel have been anti - corrosion treated. The traction rope is made of stainless steel coated with Teflon, which can work in harsh environments. The specifications are divided into large, medium, and small sizes. There are multiple output methods available for customization: resistance output method (potentiometer), 0~5V, 0~10V voltage output methods, 4~20mA current output method, and incremental square - wave output method (encoder).
The parameters of the resistance output type are as follows:
The ZLP - L - R type is a large - sized resistance output type. The input resistance value is 5.0KΩ±10%, the measurement stroke is long (4500～100000mm), the reciprocating speed is 600mm/s, the accuracy reaches 0.25～0.1%FS, and the repeatability reaches ±0.02%FS.
The ZLP - M - R type is a medium - sized resistance output type. The input resistance value is 5.0KΩ±10%, the measurement stroke is long (1500～4000mm), the reciprocating speed is 1000mm/s, and the accuracy reaches 0.25～0.1%FS.
The ZLP - S - R type is a small - sized resistance output type. The input resistance value is 5.0KΩ±10%, the measurement stroke is long (100～1200mm), the reciprocating speed is 500mm/s, and the accuracy reaches 0.3～0.1%FS.
The parameters of the voltage output type are as follows:
The ZLP - L - V type is a large - sized voltage signal (V1:0~5V DC, V2:0~10V DC) output type. The measurement stroke is long (4500～100000mm), the reciprocating speed is 600mm/s, the accuracy is high (0.25～0.1%FS), and the repeatability reaches ±0.05%FS.
The ZLP - M - V type is a medium - sized voltage signal (V1:0~5V DC, V2:0~10V DC) output type. The measurement stroke is long (1500～4000mm), the reciprocating speed is 1000mm/s, the accuracy is high (0.3～0.1%FS), and the repeatability reaches ±0.05%FS.
The ZLP - S - V type is a small - sized voltage signal (V1:0~5V DC, V2:0~10V DC) output type. The measurement stroke is long (100～1200mm), the reciprocating speed is 500mm/s, the accuracy is high (0.3～0.1%FS), and the repeatability reaches ±0.02%FS.
The parameters of the current output type are as follows:
The ZLP-L-MA type is a large-sized current signal (4~20mA) output type, with a long measurement stroke (4500～100000mm), a reciprocating speed of 600mm/s, high accuracy (0.25～0.1%FS), and a repeatability of ±0.05%FS.
The ZLP-M-MA type is a medium-sized current signal (4~20mA) output type, with a long measurement stroke (1500～4000mm), a reciprocating speed of 1000mm/s, high accuracy (0.3～0.15%FS), and a repeatability of ±0.05%FS.
The ZLP-S-MA type is a small-sized current signal (4~20mA) output type, with a long measurement stroke (100～1200mm), a reciprocating speed of 500mm/s, high accuracy (0.3～0.1%FS), and a repeatability of ±0.02%FS.
The parameters of the incremental square wave output type are as follows:
The ZLP-S-P type is a small-sized incremental square wave (AB phase or ABZ phase) output type, with a long measurement stroke (100～1200mm), a reciprocating speed of 1000mm/s, an accuracy of ±0.05%FS, and resolutions of: 1mm, 0.5mm, 0.2mm, 0.1mm, 0.04mm.
The ZLP-M-P type is a medium-sized incremental square wave (AB phase or ABZ phase) output type, with a long measurement stroke (1500～4000mm), a reciprocating speed of 1000mm/s. When the stroke is (1500~2000mm), the accuracy is ±0.03%S; when the stroke is (2500~4000mm), the accuracy is ±0.05%FS. The resolutions are: 1mm, 0.5mm, 0.2mm, 0.1mm, 0.05mm (provided for strokes of 500mm, 1000mm, and 2000mm).
The ZLP-L-P type is a large-sized incremental square wave (AB phase or ABZ phase) output type, with a long measurement stroke (4500～100000mm), a reciprocating speed of 1000mm/s, an accuracy of ±0.05%FS, and resolutions of: 1mm, 0.5mm. Others are made according to requirements.
Application product categories: Warehouse position positioning, reservoir dam protection, gate opening control, pressure machinery, paper-making machinery, textile machinery, metal sheet machinery, packaging machinery, printing machinery, level control instruments, construction machinery, industrial robots, injection molding machines, woodworking machinery, elevators, air compressors/hydraulic presses, height gauges, X-Y axes, and other length displacement, liquid level and other related dimension measurements and position control.
Precautions: The pull rope displacement sensor is very suitable for various application scenarios and is easy to install. There is a mounting groove at its bottom, and it is fixedly installed with 2 mounting brackets. Since its overall structure is made of aluminum alloy, it has the characteristics of being lightweight, compact, and durable.
