Home > Instruments & Meters > Test Instrument > Test Machine > HST Plastic Pipe Hydrostatic Pressure Tester ASTM for High Accuracy + HST-TANK Constant Temperature Water Tank 304 1 Year

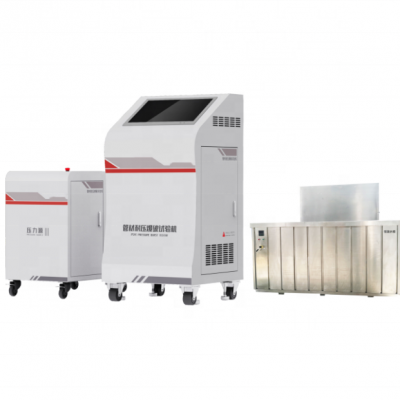

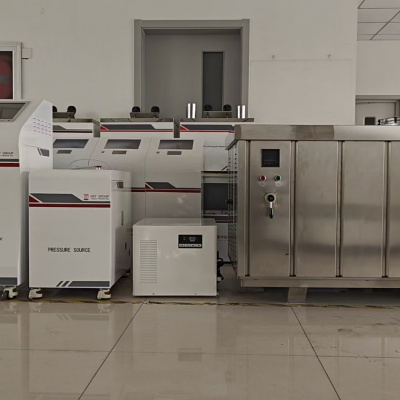

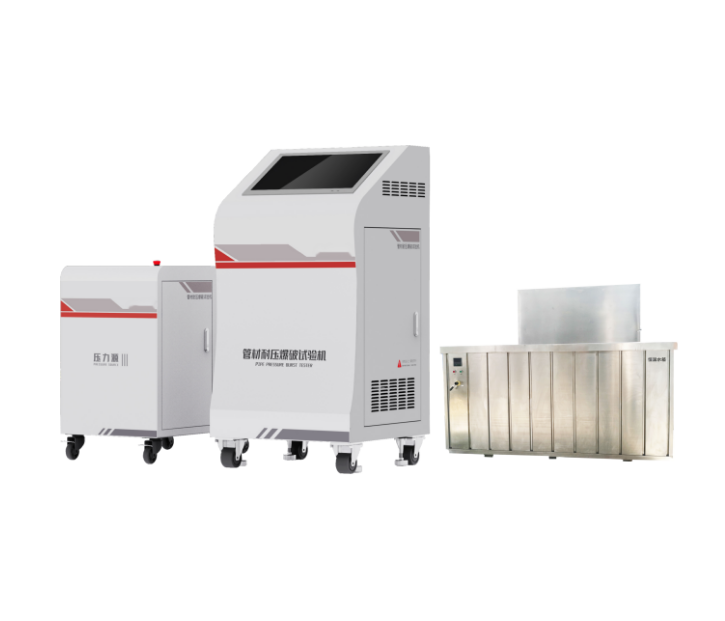

HST Plastic Pipe Hydrostatic Pressure Tester ASTM for High Accuracy + HST-TANK Constant Temperature Water Tank 304 1 Year
US$ 3800 - 13500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤±1%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST HDT / Vicat Softening Point Temperature Tester High Accuracy Lab Equipment for Plastic Rubber Pipe Material TestingUS$ 1450 - 1680MOQ: 1 Set -
HST D110, 200, 250, 315 Constant Temperature Water TankUS$ 18894.33 - 20993.70MOQ: 1 Set
-
HST Falling Weight Testing Machine for Plastic Pipes, Drop Weight Stringing Machine, Pipe Impact TesterUS$ 27291.81 - 27991.60MOQ: 1 Set
-
HST Falling Weight Impact Tester, Drop Test Machine ISO 4422 ISO 3127 ASTM D2444US$ 27291.81 - 27991.60MOQ: 1 Set
-
HST-HDTV3003S HDT / Vicat Softening Point Temperature Tester Plastic and Rubber Pipe Material TestingUS$ 1450 - 1680MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Plastic Pipe Hydrostatic Pressure Tester
Model
HST-XG10T
Test pipe diameter range
Test pipe diameter range D16~1000
Number of test routes
3 way(other optional)
Control method
PC control
Data preservation
Each channel has a power-off data protection function
Timing Range
0~9999 hours 59 minutes 59 seconds
Timing Accuracy
±0.1%
Time resolution
1s
Minimum setting unit
min

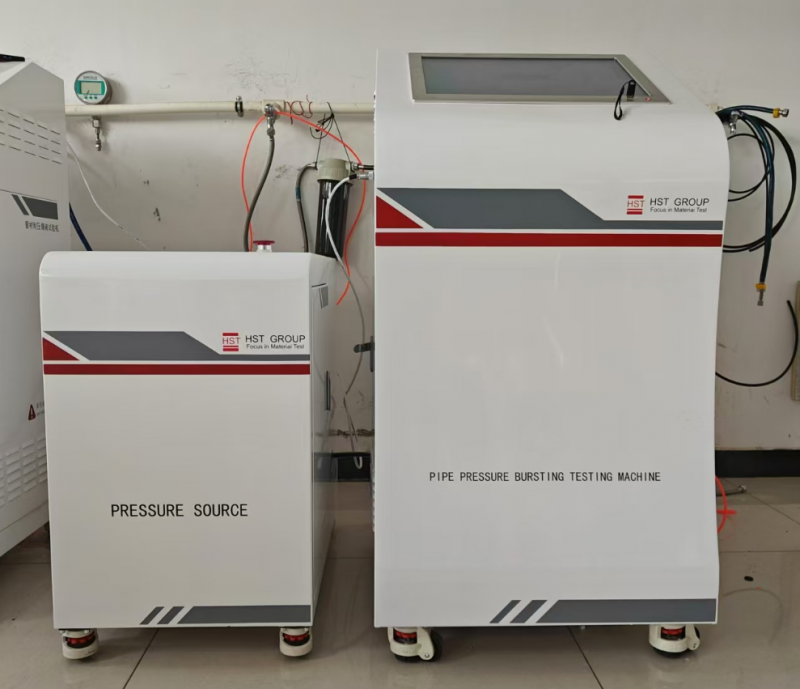

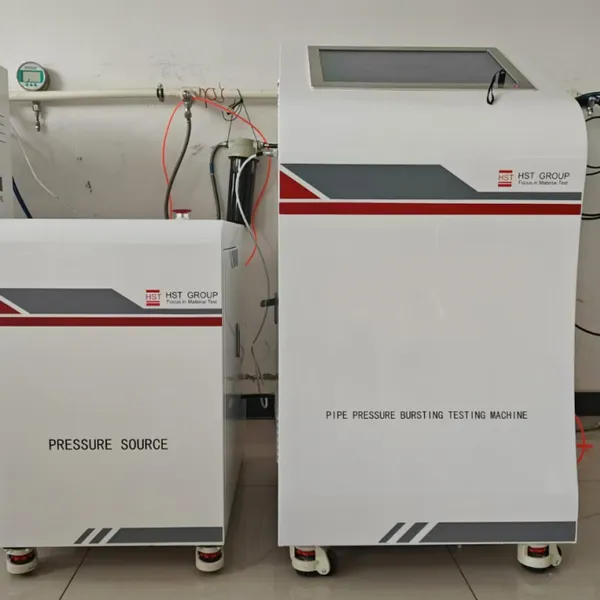

HSTXG-10T Pipe Pressure Burst Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
The hydrostatic testing machine adopts the central cluster control of embedded PC (hereinafter referred to as PC). Each channel is a module,
Each module is equipped with a microcomputer, which is used to receive the embedded PC control instructions and realize the control. At the same time, the control information is continuously fed back to the PC through the serial bus, and the PC completes the collection and storage functions of the test data. It has the functions of pipe rupture identification, real-time monitoring, incoming call data recovery, printing, storing test results, and sample preprocessing settings.
The HSTXG Series hydrostatic blasting tester is suitable for the determination of the hydraulic instantaneous blasting of various plastic pipes for fluid transportation and the determination of the rupture resistance time of thermoplastic pipes under long-term constant pressure. It is a necessary testing instrument for scientific research institutes, quality inspection departments and pipe manufacturers.
The hydrostatic testing machine adopts the central cluster control of embedded PC (hereinafter referred to as PC). Each channel is a module,
Each module is equipped with a microcomputer, which is used to receive the embedded PC control instructions and realize the control. At the same time, the control information is continuously fed back to the PC through the serial bus, and the PC completes the collection and storage functions of the test data. It has the functions of pipe rupture identification, real-time monitoring, incoming call data recovery, printing, storing test results, and sample preprocessing settings.
Standard
Standard No. | Standard Name |
GB/T6111-2018 | Thermoplastics piping systems for the conveyance of fluids—Determination of the resistance to internal pressure |
GB/T15560-95 | STANDARD test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids |
IS01167-2006 | Thermoplastics pipes, fittings and assemblies for the conveyance of fluids --Determination of the resistance to internal pressure -- Part 1: General method |
IS01167-2006 | Thermoplastics pipes, fittings and assemblies for the conveyance of fluids --Determination of the resistance to internal pressure -- Part 1: General method |
ASTM D1598-2004 | Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document) |
ASTM D1599 | Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings1 |
2.Technical Parameters:
Model | HSTXG-10T Pipe Pressure Burst Testing Machine | ||
Test pipe diameter range | D16~1000 | ||
Number of test routes | 3 way(other optional) | ||
Control method | PC control | ||
Data preservation | Each channel has a power-off data protection function, which can be restored after power-on | ||
Time | Timing | 0~9999 hours 59 minutes 59 seconds | |
Timing accuracy | ±0.1% | ||
Time resolution | 1s | ||
Minimum setting unit | min | ||
Pressure | Pressure control range | 0.4~10MPa can be set arbitrarily; other pressure units can be set such as: MPa, PSI or bar | |
Pressure Control Accuracy | -1%~ +2%, can also be set arbitrarily | ||
Pressure display resolution | 0.001MPa | ||
Measuring range | 4%~100%FS | ||
Indication allowable error limit | Within 1% of the indicated value | ||

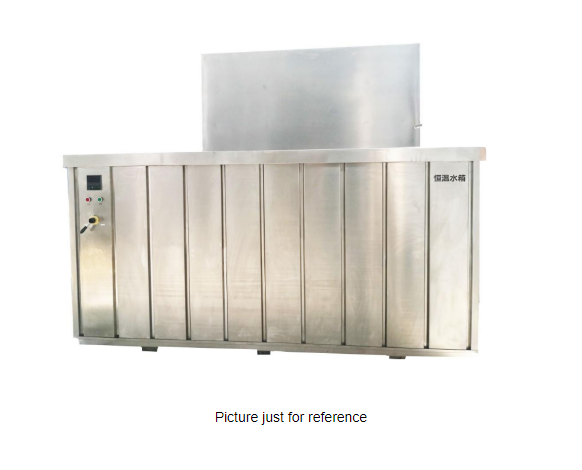

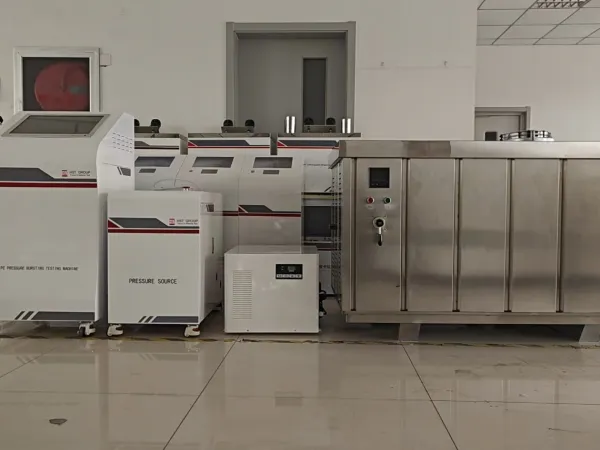

HST-Tank Temperature test tank for Hydrostatic Pressure Tester
Application：
The constant temperature water tank is suitable for the long-term constant pressure test, instantaneous burst test and the
determination of the failure resistance time of thermoplastic pipes under long-term constant pressure of various plastic pipes at various temperatures. It is the necessary testing equipment for scientific research institutes, quality inspection departments and pipe manufacturers.
Executive standard
1. GB/T 6111-2018 "Test method for internal pressure resistance of thermoplastic pipes for liquid transportation";
2. ISO 1167-1996 "Test method for internal pressure resistance of thermoplastic pipes for fluid transportation";
3. GB/T 18252-2000 "Determination of long-term hydrostatic strength of thermoplastic pipes by extrapolation of plastic piping systems";
4. GB/T 15560-95 "Hydraulic instantaneous blasting and pressure test methods for plastic pipes for fluid conveying";
5. ASTM D1598-2004 "Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document)";
6. ASTM D1599 "Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings1"
2. ISO 1167-1996 "Test method for internal pressure resistance of thermoplastic pipes for fluid transportation";
3. GB/T 18252-2000 "Determination of long-term hydrostatic strength of thermoplastic pipes by extrapolation of plastic piping systems";
4. GB/T 15560-95 "Hydraulic instantaneous blasting and pressure test methods for plastic pipes for fluid conveying";
5. ASTM D1598-2004 "Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document)";
6. ASTM D1599 "Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings1"
HPT constant temperature water tank | HST-Tank |
Model | HST-Tank315/450 |
Maximum test tube diameter | D16----D630 |
Number of test routes | Depends on the number of hosts |
Test temperature | Temperature control range with refrigeration system: 20°C--95°C (optional) |
Temperature control accuracy | ±1℃ |
Liner material | All 304 stainless steel inside and outside |
Liner size | Specific according to the contract |
Heating power | 9KW (regular) (specifically according to the contract) |
Open tank lid system | The water tank above 315 is controlled by the cylinder |

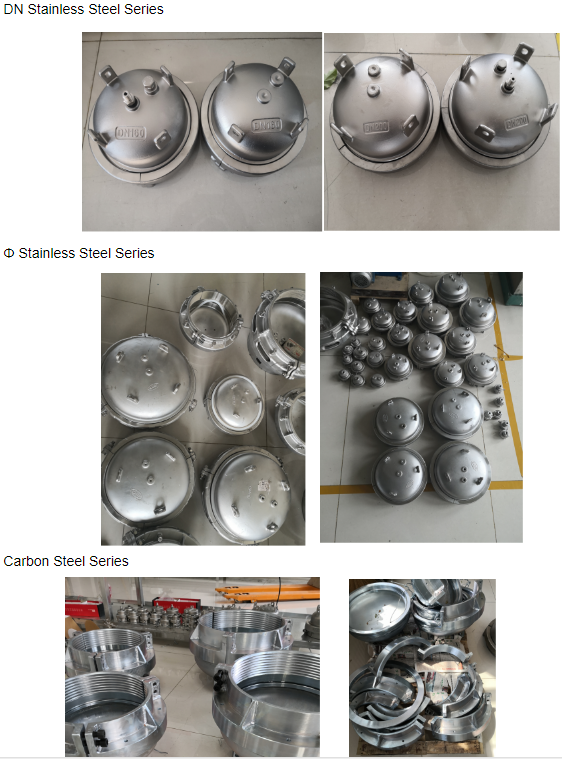

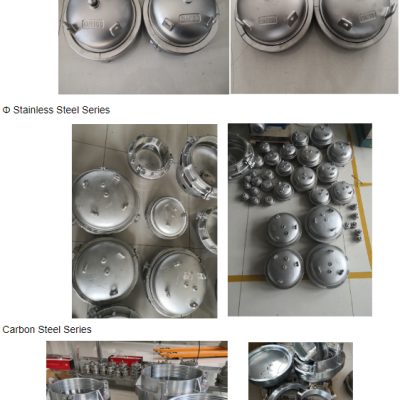

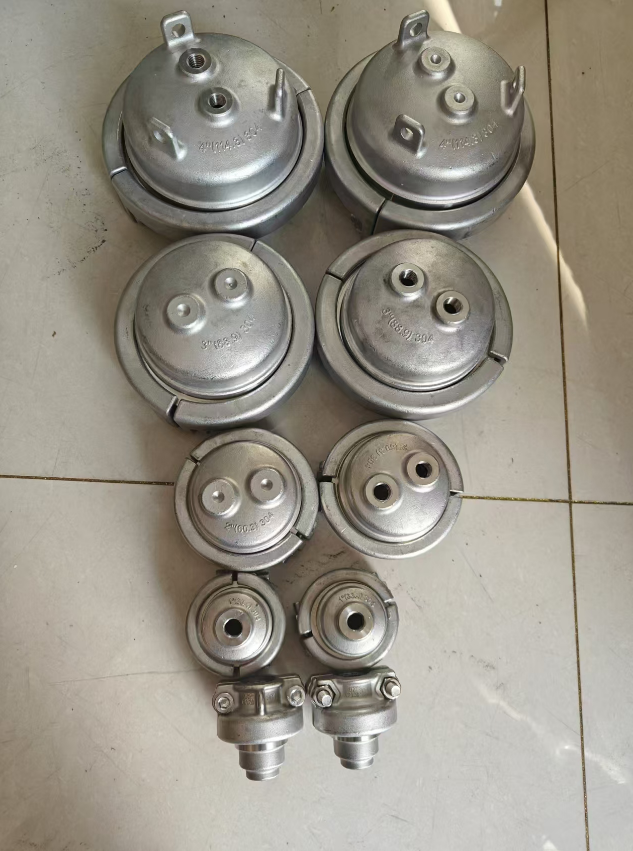

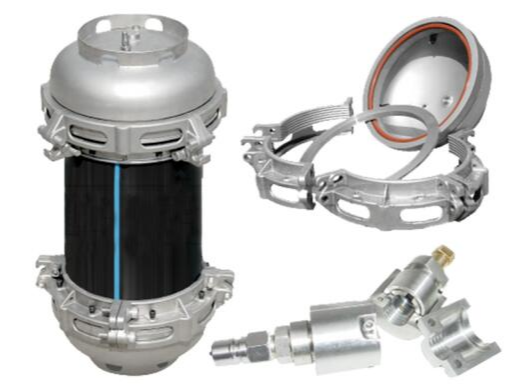

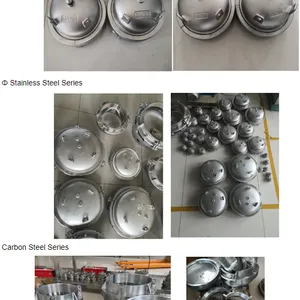

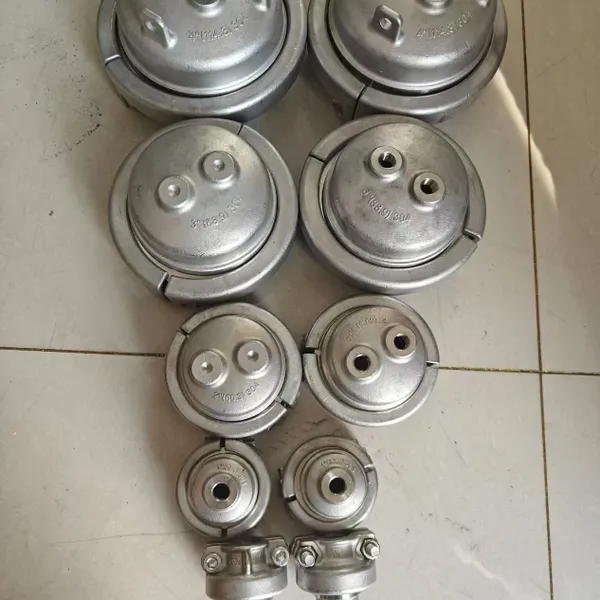

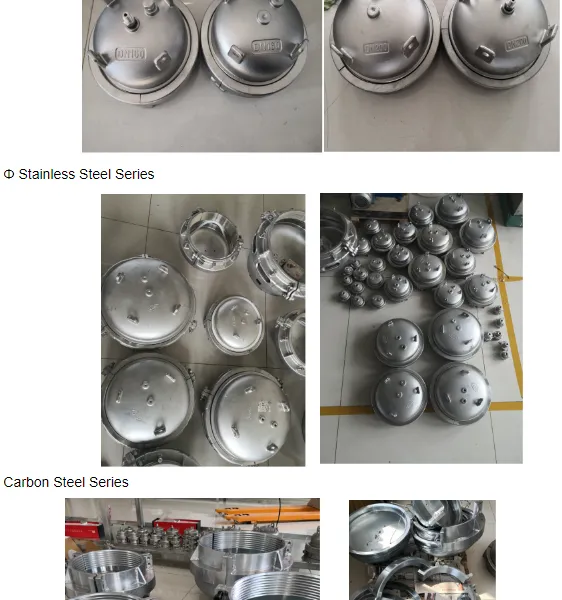

HST HPT-337End Caps For Hydrostatic Pipe Static Pressure Tester
Product Description
The plastic pipe and pipe fitting sealing fixture series are mainly used for hydraulic test and negative pressure test. It adopts tie rod-free radial sealing to meet the requirements of ISO, GB and other relevant standards. It can be used for end sealing of various pipe fittings such as PVC, PE, PP-R, and steel-lined composite. The fixture is mainly composed of clamping block, elliptical end, silicone sealing ring, pressure ring and other main parts.
Compliance with standards
GB/T6111-2009, GB/T15560-95, GB/T18997.1-2003, GB/T18997.2-2003, ISO1167-2006, ASTM D1598-2004, ASTMD1599
Product features
3.1. φ10-φ1200 is processed by precision casting, and the seal adopts A-type radial seal structure. The material is all made of high-quality 304 stainless steel. The outer surface of the fixture parts is uniform in stainless steel color, with high strength and corrosion resistance.
3.2. The fixture is a patented product with a simple structure and convenient operation. During the experiment, the process of first clamping and then sealing is realized to ensure 100% leakage-free clamping.
3.3. When assembling the fixture, no special clamping bracket is required, and all parts above 3KG have safe lifting devices.
3.4. The split-flap clamping block structure can realize automatic centering, making the pipe and fittings clamped more firmly. The clamping block is designed as a solid structure to ensure strength and clamping firmness, and is easy to carry and assemble.
3.5. The end of the fixture adopts four-leg support to make installation more convenient and keep the sample stable in the bathduring the test.
3.1. φ10-φ1200 is processed by precision casting, and the seal adopts A-type radial seal structure. The material is all made of high-quality 304 stainless steel. The outer surface of the fixture parts is uniform in stainless steel color, with high strength and corrosion resistance.
3.2. The fixture is a patented product with a simple structure and convenient operation. During the experiment, the process of first clamping and then sealing is realized to ensure 100% leakage-free clamping.
3.3. When assembling the fixture, no special clamping bracket is required, and all parts above 3KG have safe lifting devices.
3.4. The split-flap clamping block structure can realize automatic centering, making the pipe and fittings clamped more firmly. The clamping block is designed as a solid structure to ensure strength and clamping firmness, and is easy to carry and assemble.
3.5. The end of the fixture adopts four-leg support to make installation more convenient and keep the sample stable in the bathduring the test.
