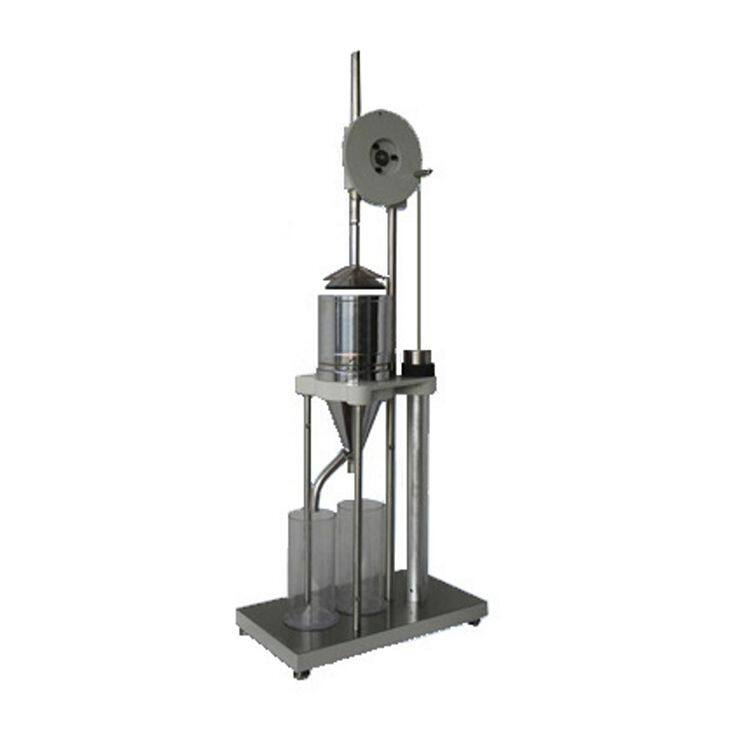

HST-DJD Pulp Freeness Beating Tester Paper Beating Degree Testing machine
| Production Description |
Application:
The Beating Freeness Tester is a special instrument for measuring the water drainage performance of paper pulp. This instrument According to the phenomenon that the knocking degree of pulp is inversely proportional to the drainage speed of pulp suspension, the fiber condition is studied and the pulp beating degree is evaluated.
The pulp beating degree tester is a routine laboratory test instrument designed based on the principle of the Schauer-Rigler method. The Schauer-Rigler method is a conventional method for measuring the drainage rate of diluted pulp suspensions.
Standard:
1.ISO5267/1 "Pulp - Determination of water drainage properties - Part 1: Schauer-Rigler method"
2. Relevant provisions of GB3332 "Method for determination of pulp beating degree"
Specifications:
|
Model |
HST-DJD |
|
Measurement range |
(1~100)SR (Sholbert degree) |
|
The rising speed of the sealing cone |
(100±10)mm/s |
|
Index value of indicating cylinder |
1SR |
|
Overflow discharge time |
(149±1)s |
|
Remaining volume |
(7.5~8)ml |
|
Environmental conditions |
Indoor temperature (20 ± 10) °C |
|
Relative humidity |
< 85% |
|
Overall dimensions (length x width x height) |
450 × 250 × 1000 mm |
|
Weight |
about 31Kg |
