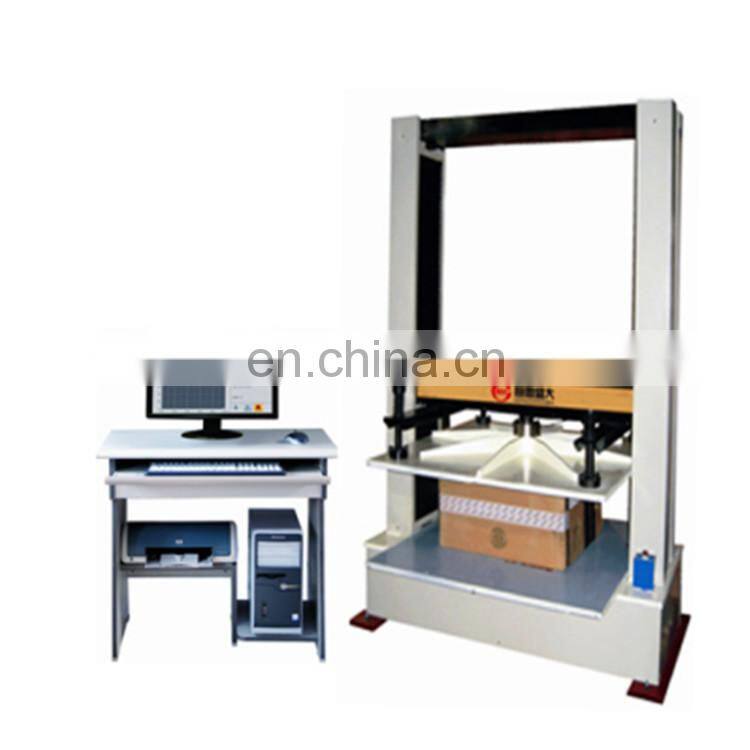

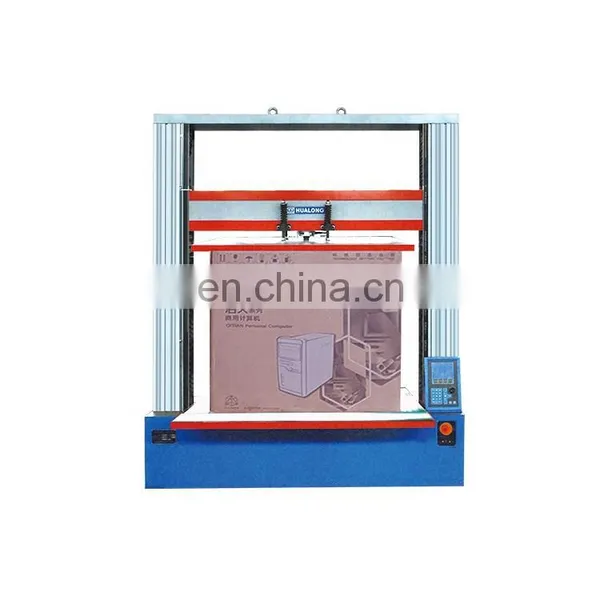

10KN 50KN Computer control corrugated carton compression testing machine
1. Application:
1. Introduction
HST-KY carton compression tester is the essential testing equipment to test the compressive strength of carton box. Adopted high precise sensor,ARM chip, with powerful data processing function, test process automatic tracking, the testing result is automatic recording, real-time display test data and curve, and can communicate with computer. Touch-screen display make the instrument easy to operate, good appearance , and quick response.
2. Standards
ISO2872, ISO2874, GB/T4857.3, GB/T4857.4
3. Features
l High accuracy servo motor to control test speed .
l Ball screw no backlash to guarantee the low noise and high driving efficiency .
l High accuracy load cell to measure the test load .
l High accuracy photoelectric encoder to measure the displacement .
l Compact structure with easy operation .
l Limit switch and setting in the software to guarantee the safety .
l Display: LCD Display Module, Show Pressure Curve real-time
l Printer: direct thermal printer, high speed while noiseless.
l Communication Output: standard RS-232 interface
4. Specifications
|
Item |
HS-KY10 |
HS-KY50 |
|
Power supply |
AC380V±10% 60HZ |
|
|
Measuring range |
(0.1-10)kN |
(1-50)kN |
|
Indication error |
<±1% |
|
|
Platen size |
500*500mm (customized) |
800*800mm/1000*1000mm/1200*1200mm/1500*1500mm (customized) |
|
Operating stroke |
500mm (customized) |
800mm/1000mm/1200mm/1500mm (customized) |
|
Compression speed |
10mm/min |
|
|
Speed adjustment range |
0.05-300mm/min |
|
|
Track and force speed in stacking test |
2mm/min |
|
