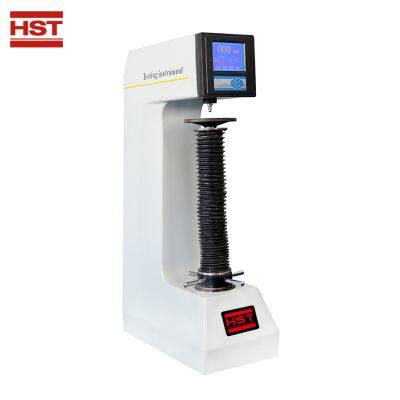

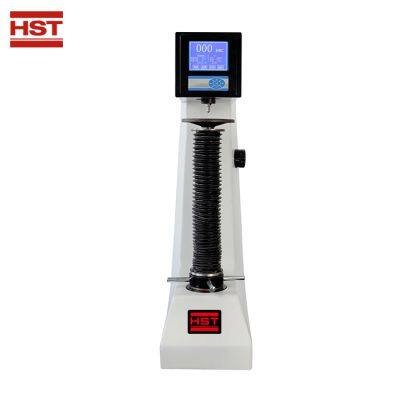

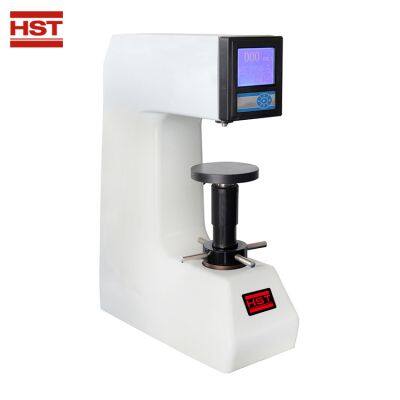

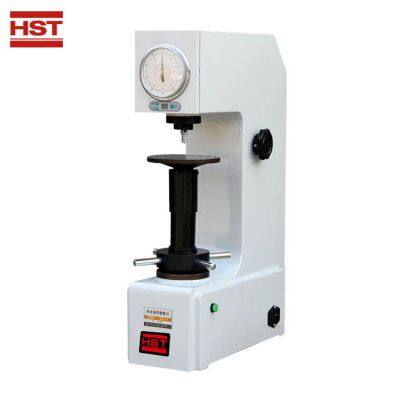

HST Rockwell Hardness Tester Diamond Indenter Durometer Hardness Measuring Device
US$ 13296.01
≥1 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-5630 Ultrasonic Hardness TesterUS$ 1800 - 2200MOQ: 1 Set -
HBRV 187.5STE Digital Brinell, Rockwell, Vicker Universal Hardness TesterUS$ 19594.12 - 20293.91MOQ: 1 Set
-
HBRV 187.5STE Touch Screen Digital Brinell, Rockwell, Vickers Universal Hardness Tester DurometerUS$ 19594.12 - 20293.91MOQ: 1 Set
-
HST-934-1s Barcol Hardness TesterUS$ 340 - 800MOQ: 1 Set
-
HST-5100 Portable Leeb Hardness TesterUS$ 769.77 - 909.73MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
warranty
1 years
Product name
rockwell hardness tester
Application
Rockwell value
Certificate
ISO, CE, ASTM
Power supply
220V 50HZ
Hardness Resolution
0.1HR
Material
METAL
Products Description
1.Application
1.There are three kinds of test methods:
Brinell, Rockwell and Vickers.
2.Electric loading, high precision sensor, with a unique closed-loop control system
3.Eyepiece structure with digital encoder, measure D1, D2 value, LCD display hardness value and D1, D2 value directly.
4.The test force is automatically corrected, each force is automatically compensated, and the accuracy of the force is improved by
an order of magnitude.
5.Can be calibrated according to the standard hardness block or length scale.
6.Test force can be automatically corrected by standard dynamometer
7.The hardness value of rockwell and vickers can be converted.
8.Touch screen, easy to operate.
9.According to the national standard /ASTM hardness automatic conversion.
10.Set password protection setting parameters, more sample and test information.
11.The measurement data U disk is saved in EXCEL format for easy editing and processing.
12.You can choose to upgrade and add two rulers, HVT and HBT. 3.Main technical parameters
Brinell, Rockwell and Vickers.
2.Electric loading, high precision sensor, with a unique closed-loop control system
3.Eyepiece structure with digital encoder, measure D1, D2 value, LCD display hardness value and D1, D2 value directly.
4.The test force is automatically corrected, each force is automatically compensated, and the accuracy of the force is improved by
an order of magnitude.
5.Can be calibrated according to the standard hardness block or length scale.
6.Test force can be automatically corrected by standard dynamometer
7.The hardness value of rockwell and vickers can be converted.
8.Touch screen, easy to operate.
9.According to the national standard /ASTM hardness automatic conversion.
10.Set password protection setting parameters, more sample and test information.
11.The measurement data U disk is saved in EXCEL format for easy editing and processing.
12.You can choose to upgrade and add two rulers, HVT and HBT. 3.Main technical parameters
Model | HTR 150 SERIES |
Loading Method | Load Sensor, Full-closed Loop Control. Transmission Model: High Precision Ball Screw. Force Measurement Way: High Precision Pressure Sensor. |
Hardness Scales | Rockwell/Superficial Rockwell, Brinell,Vickers,HVT, HBT |
Force Range | 5-250 KG |
Brinell Measurement Range | HB2.5/: 6.25, 15.625, 31.25, 62.5, 187.5kgf HB5/: 25, 62.5, 125, 250kgf HB10/: 100, 250kgf HBT2.5/: 62.5, 187.5kgf HBT5/: 250kgf |
Vickers Measurement Range | HV3、HV5、HV10、HV20、HV30、HV50、HV100kgf HVT50、HVT100kgf |
Magnification Of The Objective | 5X, 10X, 20X. |
Data Display | The Computer Display Data |
Test | Automatic Loading, Keep Loading And Unloading. |
Load Force Dwell Time | 1 - 99 s |
Illuminating System | LED Light, Ring Light. |
Executive Standard | GB/T230, GB/T231, GB/T4340, JJG144-1999, GB/T18449, ISO 6508, ASTM E 10, ASTM E92, ASTM E18, ASTM E384, ASTM E103. |
Specification And Dimension | 290*520*900 mm (L*W*H) |
Weight | 80 KG |
Power Supply | AC 220V, 50Hz |
