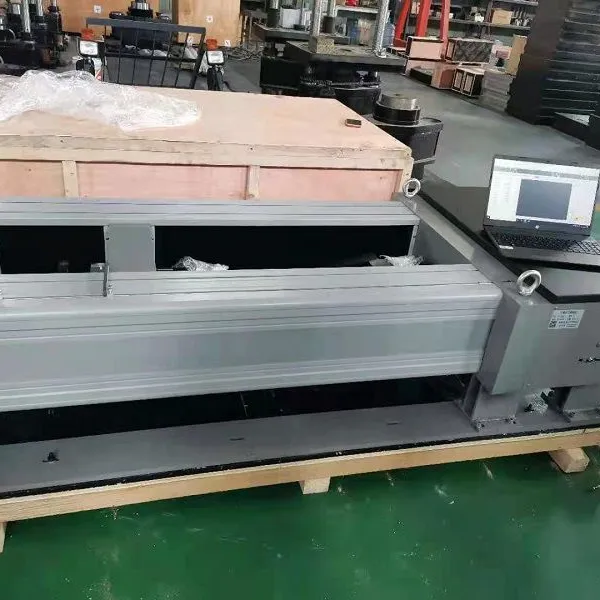

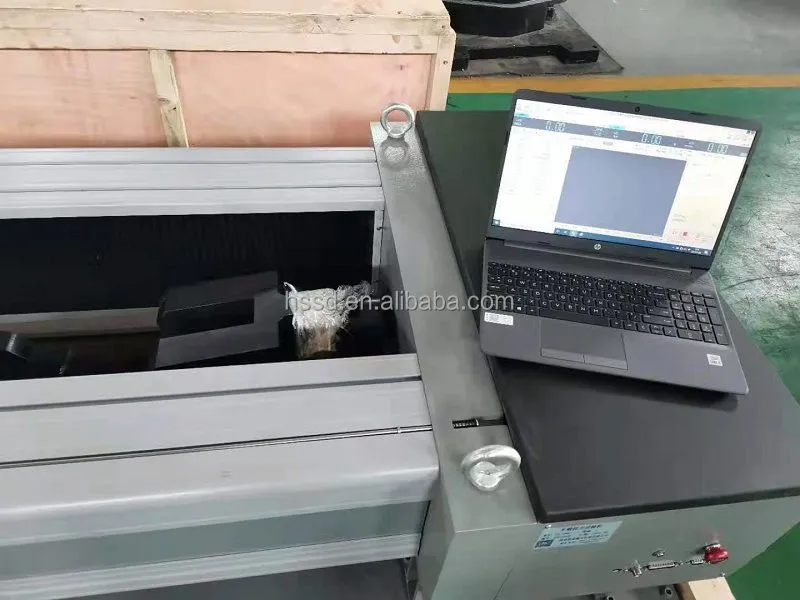

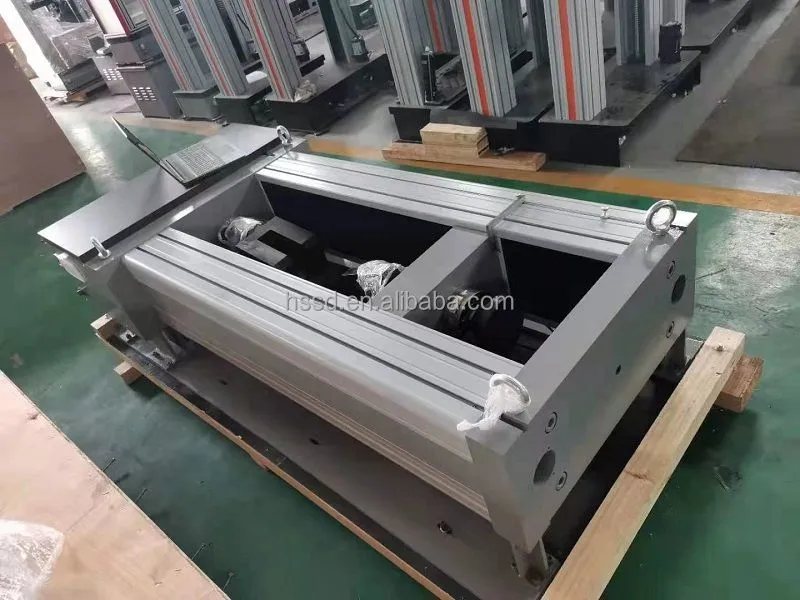

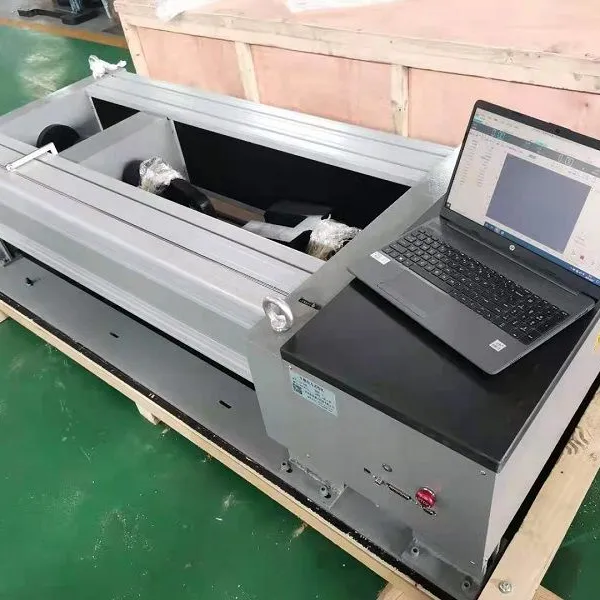

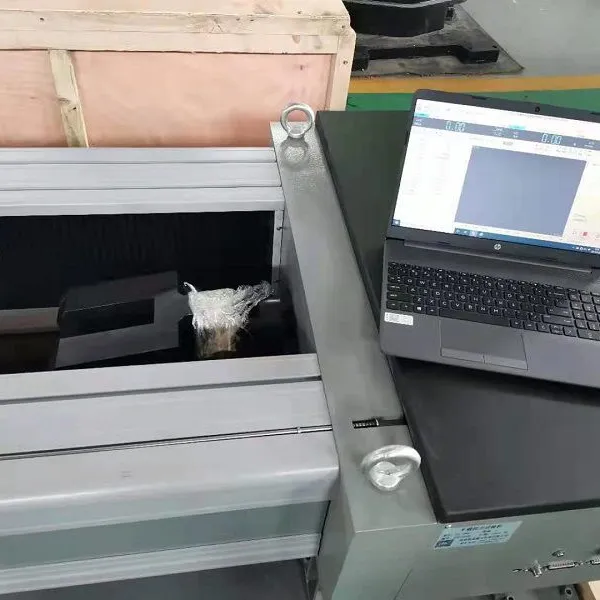

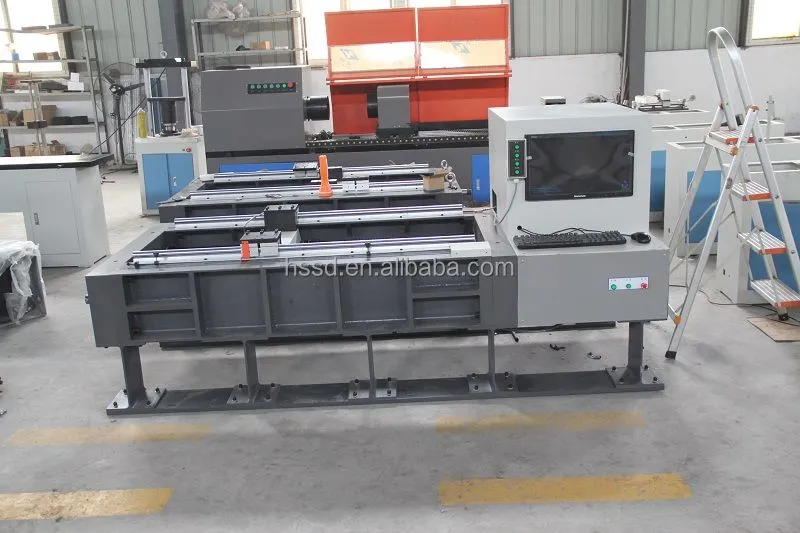

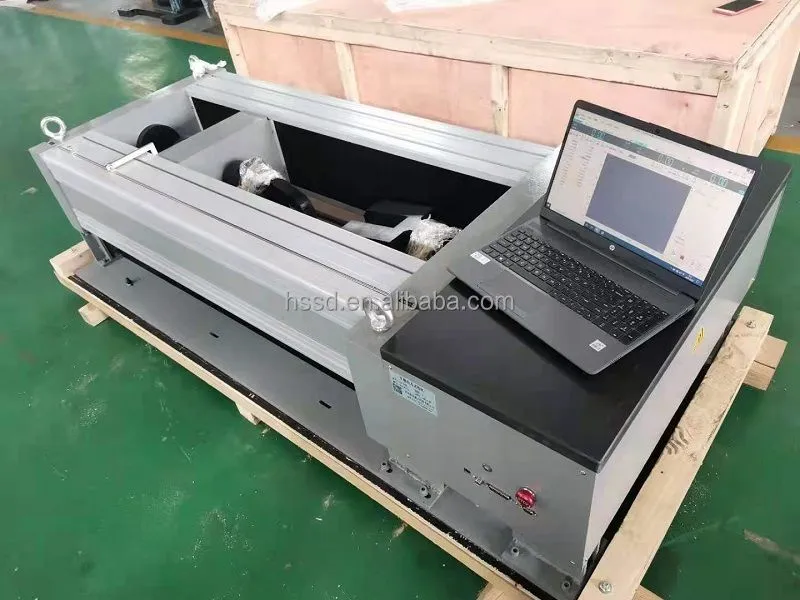

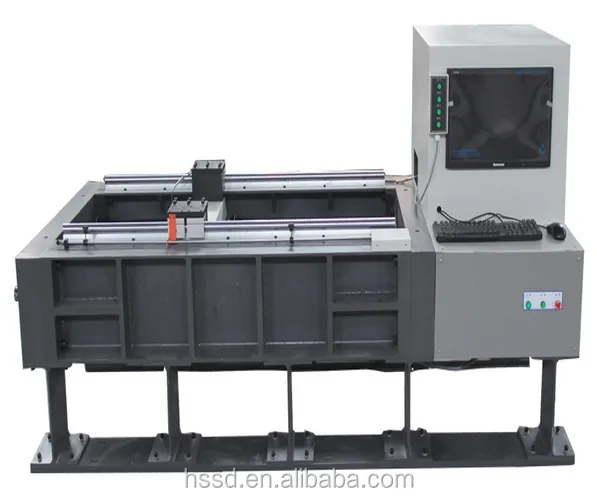

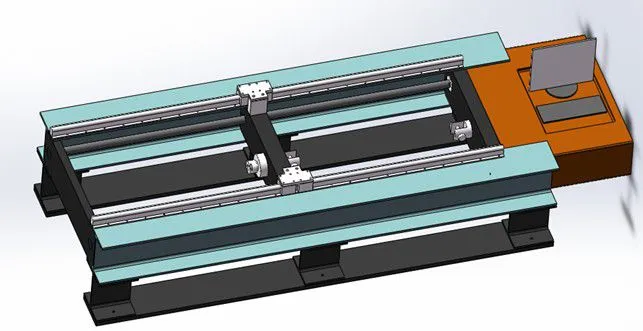

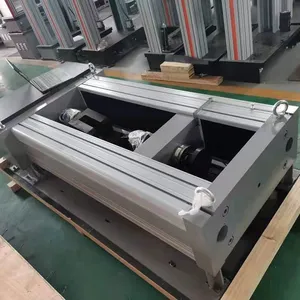

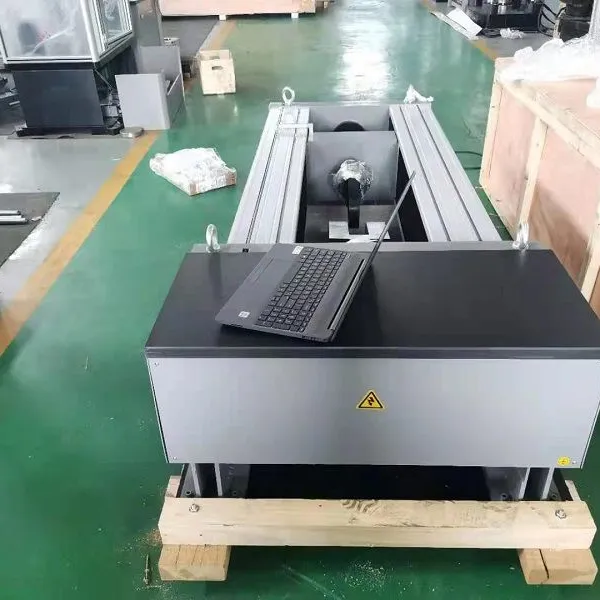

Computer controlled electronic horizontal 50kN nylon conveyor belt tensile testing machine
1. Application
This series materials testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Typical test applications for wide range of tension, compression, bending, shearing and low cycle test. include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts, etc.
3. Test Standard:
ASTMA370, ASTME4, ASTME8, ASTME9,ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
4. Features
This machine consists of the host, drive system and computer measurement and control system of three parts. This machine is the automatic computer acquisition experiment data and the automatic control process. Frame use the H frame structure, test force by the ball screw, load sensor, the encoder measuring displacement, computer screen displays real-time test power and test curve and automatic processing of test data according to the preset test method, sample clamping way is bolt method.
5.Product Advantage:
1) Safety Protection: the machine is equipped with
2) Mechanical limit protection.
3) Overload protection, automatic stop the machine.
4) Over current and leakage automatic power-off protection.
5) The protection function such as emergency switch.
6) Adopt the automatic control operation mode, greatly improve the working efficiency, reduce the labor
7) intensity of the operator.
8) Adopted the wheel type of load sensors, high precision, stable performance.
6. The Drive System:
1) Ac servo motor as the power source of the machine.
2) After the High Precision Planetary Reducer to reduce the speed, the Power passed to the two ball screw by synchronous belt, to test force of the load and adjustment of space.
3) Devices with two guide equipment to ensure smooth operation.
7. Parameters:
|
Model |
EWAL-10/20 |
EWAL-50 |
EWAL-100 |
EWAL-200 |
EWAL-300 |
|
Control Way |
Close-loop servo and motor control |
||||
|
Max. Load force(kN) |
10/20 |
50 |
100 |
200 |
300 |
|
Accuracy |
≤0.5% ; 0.5 class |
||||
|
Deformation accuracy
|
<±0.5% of reading
|
||||
|
Displacement Resolution |
0.01 mm |
||||
|
Test Force Measurement Range |
2%-100% FS |
||||
|
Effective Tensile Space |
|||||
|
Net space between columns |
Customized upon request |
||||
|
Loading Speed (mm/min)
|
0.05~500 |
0.05~200 |
|||
|
Structure |
Center ball screw driven |
||||
|
Voltage |
220V/380VAC±10%;50Hz/60Hz |
||||
