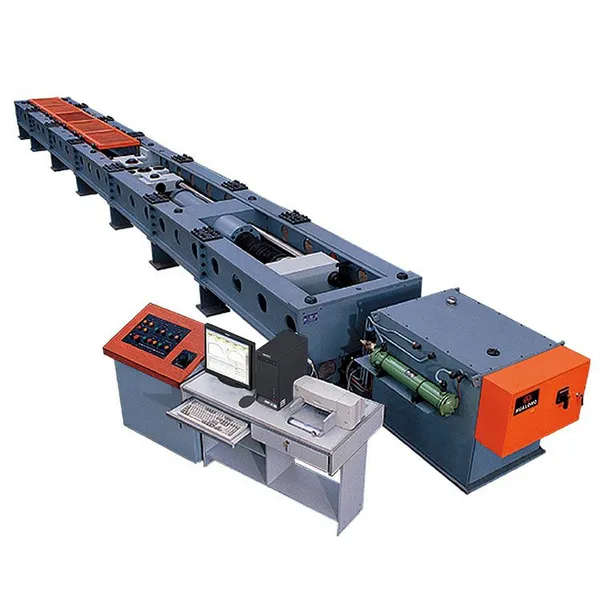

WAL Computer Control Electro-Hydraulic Servo Horizontal Tensile Testing Machine
1. Application
This machine is mainly designed for tensile strength tests on all kinds of mental component, anchor chain, hook, wire rope, stopper, electric cable and separating disc.
2. Features:
1. Computer automatic loop-closed control, sensor test force,
2. Computer screen can timely display, memory printing
3. Sample hydraulic automatic clamping
4. Automatic calculate the material test result of the max force, tensile strength,yield strength, elastic modulus, percentage elongation after fracture, reduction of area
5. Safety net protecting the test personnel is available when sample breaking
3. Main technical parameter:
|
Model |
WAL-600 |
WAL-1000 |
WAL-2000 |
WAL-3000 |
|
|
Max Load Capacity |
600KN |
1000KN |
2000KN |
3000KN |
|
|
Range of Testing Force |
4%-100% |
||||
|
Accuracy of Testing Force |
±1% |
||||
|
Relative error of displacement |
±1% |
||||
|
Stress speed |
1-45Mpa/s |
||||
|
Precision of constant stress |
±1% |
||||
|
Stretching distance |
0-10000mm |
||||
|
Piston stroke |
500mm or customized |
||||
|
Method of Specimen Clamping |
Bolt way,specially according to the specimen that customer provide. |
||||
|
Control mode |
Computer controlled or hand valve control |
||||
|
Effective testing space |
Width 750mm or customized |
||||
|
Fixed-way of moving beam |
Manual bolt fixed or hydraulic automatic bolt fixed |
||||
|
Power supply |
220V/380V, 50Hz |
||||
