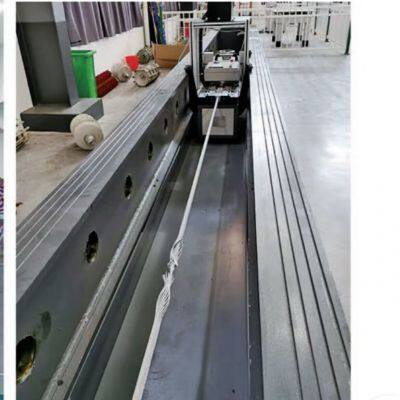

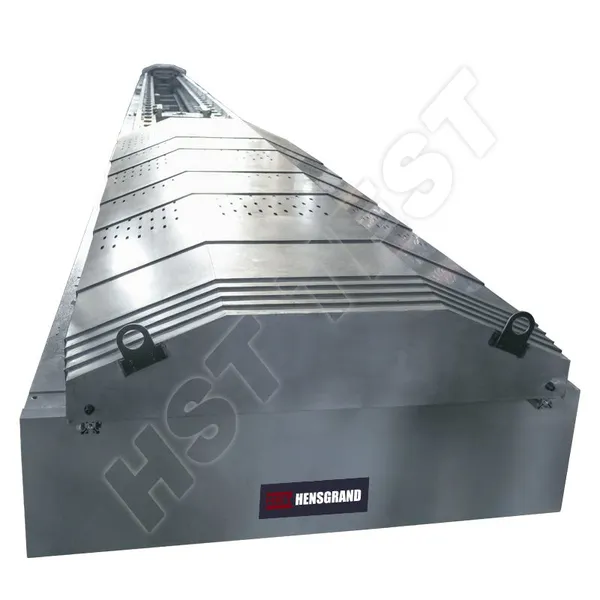

HST 20 Ton 200ton Horizontal Wire Rope Tensile Testing Machine Test Bed Price
US$ 461854.41
1 Set
US$ 447858.61
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
1 Year
Brand Name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST ASTM D3330 Servo Horizontal Tensile Test Machine for Long Specimen Like ChainUS$ 517837.61 - 531833.41MOQ: 1 Set -
HST Price Universal Strength Hydraulic Mini Horizontal Plastic Tensile Testing Machine Tester EquipmentUS$ 517837.61 - 531833.41MOQ: 1 Set
-
HST 200Ton Computerized Hydraulic Electro-Servo Steel Stand and Round Bar Horizontal Stretching Testing MachineUS$ 524842.50 - 559832.00MOQ: 1 Set
-
HST WAL-1000 100ton 1000KN Computer Control Hydraulic Pulley Cable and Shackle Horizontal Tensile Tension Testing MachineUS$ 454863.50 - 489853.00MOQ: 1 Set
-
HST 100Ton 200Ton Computer Control Hydraulic Electro-Servo Safety Rope and Anchor Chain Horizontal Destruction Testing MachineUS$ 524842.50 - 559832.00MOQ: 1 Set
Warranty
1 Year
Brand Name
HST
Place of Origin
Shandong
Product name
Horizonta Test Bed
Usage
Long specimen, such as rope, chain, lifting, anchor,etc
Max. Load force
100/300/600/1000/2000/3000/5000KN
Sensor
Load cell
Power supply
AC 3 Phase 380V 60/50Hz
Max test space
5 m or customized
Max piston stroke
500mm or customized
Grip
Bolt or hydraulic
power
Hydraulic
Customized support
OEM, ODM, OBM
Voltage
380 V
Protection Class
IP55
Power
8
Accuracy
1
Description
WAW-3000L 3000kN 300t Chain Belt Sling Horizontal Tensile Testing machine
Application:
It has widely application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: wire rope tensile test, lifting belt tensile test, safety rope tensile test, power fittings destruction test, etc
The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.
Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves
2.Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Technical parameter:
Model |
WAW-300/600/1000/2000/3000/5000L |
Max. Load(kN) |
300/600/1000/2000/3000/5000 |
Load accuracy |
Class 1 |
Load range |
2%～100%F·S |
Load resolution(kN) |
1/300000 |
Resolution of displacement (mm) |
0.01mm |
Max tensile space (mm) |
2000 ( can be customized ) |
Cylinder piston stroke(mm) |
1000 ( can be customized ) |
Displacement measuring range(mm) |
0～1000 |
Displacement accuracy |
±1% |
Range of stress loading |
1kN/s～100kN/s |
testing speed (mm/min) |
1~200 |
Piston speed |
0.1-250mm/min |
Power supply |
380 V / 3 phases 50 Hz. |
