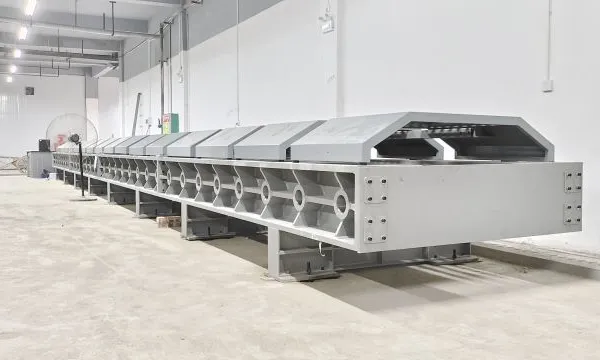

WAW-5000L 500t Horizontal Tensile Tester for Sling Wire Rope High Accuracy Equipment Machine 1 Year Warranty
US$ 699790.00
≥1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
1 year
Brand Name:
hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Fittings Hydraulic Horizontal Tensile Strength Testing Machine Sling and Chain Horizontal Tensile Test BenchUS$ 55983.20 - 69979.00MOQ: 1 Set -
Rope Horizontal Tensile Test Machine Testing Bench Testing Machine for RiggingUS$ 55983.20 - 69979.00MOQ: 1 Set
-
50ton 30ton 20 Ton Electronic Horizontal Test Bed for Wire Rope Horizontal Tensile Tester Testing MachineUS$ 55983.20 - 69979.00MOQ: 1 Set
-
100 Ton Horizontal Wire Rope Pull Force Tester Wire Rope Tensile Strength Testing MachineUS$ 55983.20 - 69979.00MOQ: 1 Set
-
200t Hydraulic Sling Chain and Separating Disc Horizontal Tensile Testing BenchUS$ 55983.20 - 69979.00MOQ: 1 Set
Warranty
1 year
Brand Name
hensgrand
Place of Origin
Shandong, China
Product name
Aluminum Conductor Acsr Horizontal Tensile Test Machine
Usage
Long specimen, such as rope, chain, lifting, anchor,etc
Max. Load force
100/300/600/1000/2000/3000/5000KN
Sensor
Load cell
Power supply
AC 3 Phase 380V 60/50Hz
Max test space
5m or customized
Max piston stroke
500mm or customized
Grip
Bolt or hydraulic
power
Hydraulic
Customized support
OEM, ODM
Voltage
380 V
Application
Universal Testing, Strength Testing, Tensile Testing
Protection Class
IP55
Power
5kw
Accuracy
0.5
Description
HST 5000kn Horizontal Tensile for Test Bed 5000kn 500t Chain Bolt Testing Equipment
Application:

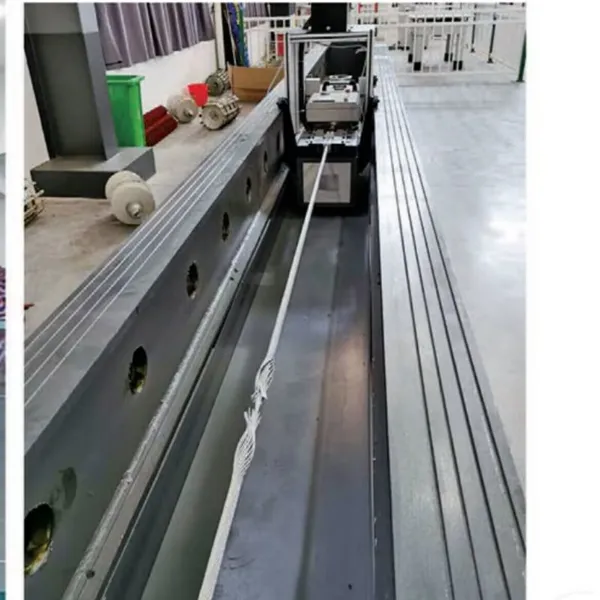

It has widely application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: wire rope tensile test, lifting belt tensile test, safety rope tensile test, power fittings destruction test, etc

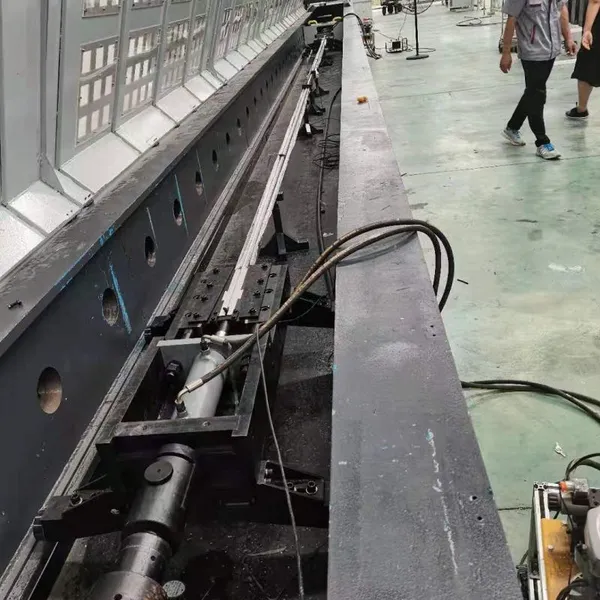

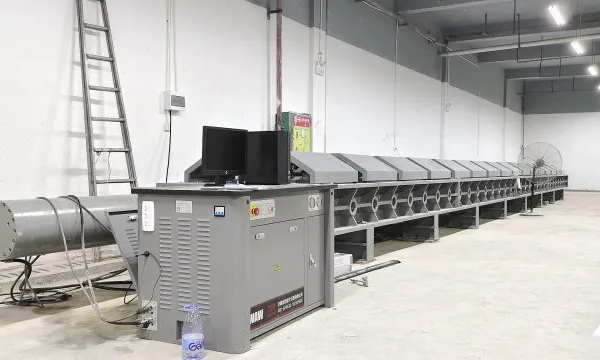

The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.
Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves
2.Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Technical parameter:
Model |
WAW-300/600/1000/2000/3000/5000L |
Max. Load(kN) |
300/600/1000/2000/3000/5000 |
Load accuracy |
Class 1 |
Load range |
2%～100%F·S |
Load resolution(kN) |
1/300000 |
Resolution of displacement (mm) |
0.01mm |
Max tensile space (mm) |
2000 ( can be customized ) |
Cylinder piston stroke(mm) |
1000 ( can be customized ) |
Displacement measuring range(mm) |
0～1000 |
Displacement accuracy |
±1% |
Range of stress loading |
1kN/s～100kN/s |
testing speed (mm/min) |
1~200 |
Piston speed |
0.1-250mm/min |
Power supply |
380 V / 3 phases 50 Hz. |
