Home > Instruments & Meters > Test Instrument > Test Machine > HST CST-50 American and European Standard Impact Specimen V Notch U Notch Measuring Profile Projector

HST CST-50 American and European Standard Impact Specimen V Notch U Notch Measuring Profile Projector

US$ 9097.27 1 - 4 Set

US$ 7697.69 ≥5 Set

Key Specifications

Get Latest Price

Type:

Testing Machine

brand name:

HST

place of origin:

China

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

brand name HST

place of origin China

customized support OEM

power 1KW

Voltage 220 V

Diameter of the Screen 200mm

Magnification of the instrument 50 X

Objective magnification 2.5X

type profile projector

Working table square shape 110x125mm

Diameter of round worktable 90mm

Diameter of working screen 70mm

Scope of revolving of the worktable 360°

Eye-field diameter 3.8mm

Working distance 22.89mm

Product Description

Title goes here.

1. Application CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.

Diameter of the Screen	200mm
Magnification of the instrument	50X
Objective magnification	2.5X
Working table square shape	1 10x125mm
Diameter of round worktable	90mm
Diameter of working screen	70mm
Stroke of working table	Longitude: ± 10mm,Latitude: ± 10mm, Rise and fall: ± 12mm
Eye-field diameter	3.8mm
Working distance	22.89mm
Scope of revolving of the worktable	360°
Power supply	220V, 60HZ, 150W
Dimension	515×224×603mm
Light source(tungsten halogen lamp)	12V, 100W
Weight	18kg

Recommend Products

CST-50	VU-2Y	DWC -40/60/80/100

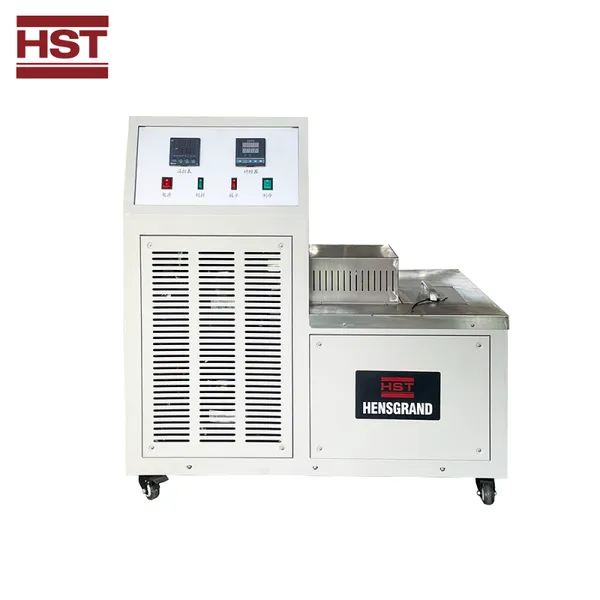

Projector for Impact Specimen	Electric Hydraulic Broaching Machine	impact test temperature chamber
