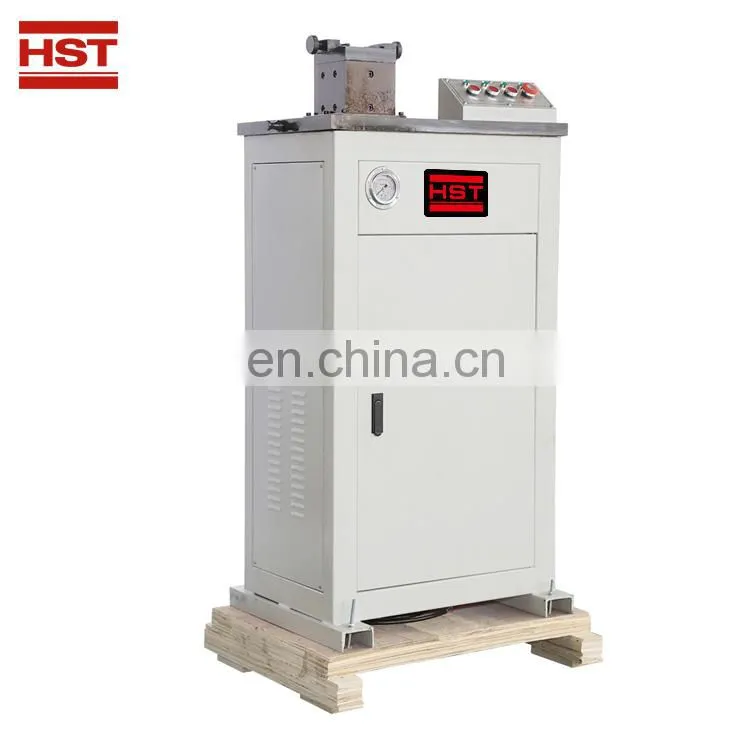

VU-2Y Hydraulic Type Impact Sample U V Notch Making Machine
- T/T Credit Card
You May Like
-
QK-20 Plastic V Type Sample Cutting Manual Notching Machine For Charpy And Izod Impact Specimen
-
Manual Notching Machine for Charpy and Izod Impact Specimen
-
ASTMD 638 Dumbbell Rubber Tensile Dumbbell Die Cutter
-
ASTM 638 Type V Standard Dumbbell Rubber Tensile Sample Die Cutter
-
ISO ASTM Standard Dumbbell Die Specimen Cutter
-
ASTM D638 Type IV SAMPLE DIE CUTTER
Product Description
VU-2Y hydraulic Impact Sample U V Notch Making Machine
| Production Description |

Function
VU-2Y Hydraulic Notch Cutting Machine for Impact Specimen is professional equipment for impact test. It is used to cut impact specimen notch.
Features
1) This machine two broaches, which is a V-shape and a U-shape one. The two broaches can work at the same time.
2) One cut action can notch two specimens, the quality of process specimen is reliable
3) The shape of the specimen notch can meet the standards of the standards of the GB229-2007 "Metallic materials---Charpy pendulum impact test method " . We also can product the machine to make the specimen shape that can meet the standards of ASTM E23-02a,EN10045,ISO148,ISO083.
4) The broach of this machine is made of special material and made in a special technology.
5) The broach is high hardness and strong wear and abrasion resistance
6)Hydraulic-driven
Applicable industries
VU-2Y Hydraulic Notch Cutting Machine for Impact Specimen is used to cut specimen notch for impact test in petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, wind power generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
Main Technical Parameter
|
Shape of sample notch |
V-shape(2 mm) U-shape(2mm) |
|
Sample size |
10×10×55mm (or 10×10×7.5mm , 10×10×2.5mm) |
|
Cutting mode |
Hydraulic |
|
Stroke of broach |
350mm |
|
Power supply |
380 V,.37 KW |
|
Max. Dimension |
650×400×1200 mm |
|
Weight |
200kg |
We have achieve the certification of ASTM E23-02a,EN10045,ISO148,ISO083,and our product meet the standards of the GB229-2007 "Metallic materials---Charpy pendulum impact test method
"
