Help Center45 Gallon Yellow Flammable Liquid Safety Storage Cabinet With Double Wall Fireproof Steel for Industrial Workshops and Auto Repair Shops
Related Products
-
Heavy Duty 90 Gallon Chemical Storage Cabinet With Leak-proof Sump and Adjustable Shelves for Large-scale Factories and WarehousesUS$ 60 - 700MOQ: 5 Combos -
Fireproof & Explosion-proof 60 Gallon Safety Cabinet With Dual Vents and Electrostatic Grounding Clip for Construction Sites and Petrochemical LabsUS$ 60 - 700MOQ: 5 Combos
-
4-115 Gallon Flammable Storage Cabinet With Anti-theft Double Lock for University Research Centers and Pharmaceutical LaboratoriesUS$ 60 - 700MOQ: 5 Combos
-
Cold Rolled Steel Blue Acid and Corrosive Storage Cabinet With Adjustable Laminates and Leak-proof Tank for Battery Manufacturing and Chemical PlantsUS$ 60 - 700MOQ: 5 Combos
-
Industrial Grade 30 Gallon Yellow Safety Cabinet Featuring 50mm Secondary Containment Sump for Manufacturing Maintenance Rooms and Small FactoriesUS$ 60 - 700MOQ: 5 Combos
Ensuring Workplace Safety with OSHA-Compliant Storage
In high-risk environments like industrial workshops and auto repair shops, managing flammable liquids is not just about organization—it is a legal and life-saving necessity. Th 45 Gallon Yellow Flammable Liquid Safety Storage Cabinet is engineered to provide a secure barrier between hazardous materials and potential ignition sources. This cabinet is the cornerstone of any proactive fire prevention strategy.
The Science of Double-Wall Protection
The secret to this cabinet’s fire resistance lies in its double-wall steel construction. Between the two layers of premium cold-rolled steel is a 1.5-inch (38mm) air insulating gap.
Thermal Barrier: This air gap acts as a natural insulator, significantly slowing down the transfer of external heat to the cabinet's interior.
Structural Integrity: During a fire, this design prevents the cabinet from warping, keeping the hazardous liquids contained and away from the flames.
Key Performance Features
Leak-Proof Sump (50mm): The bottom of the cabinet features a built-in 2-inch deep liquid-tight sump. This containment area ensures that accidental spills or leaks from containers remain within the cabinet, preventing ground contamination.

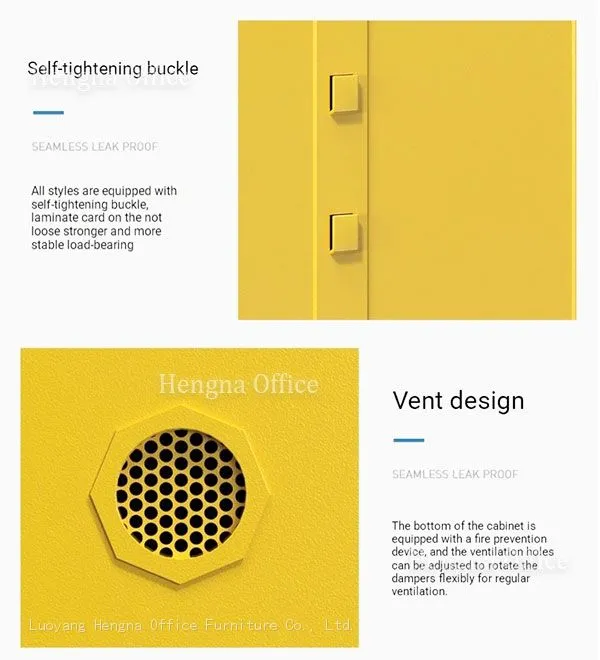

Dual Air Vents: Equipped with dual vents with built-in flame arresters strategically placed to reduce volatile vapors and provide ventilation.
Electrostatic Grounding Clip: A dedicated grounding wire connection helps prevent static electricity buildup—the silent killer in chemical storage.
Product Specifications Table
| Feature | Technical Detail |
| Capacity | 45 Gallons (approx. 170 Liters) |
| Material | 18-Gauge Double Wall Cold Rolled Steel |
| Finish | Lead-free, High-gloss Epoxy Powder Coating |
| Standard | OSHA 1910.106 & NFPA Code 30 |
| Shelf Load | 100kg+ per shelf |

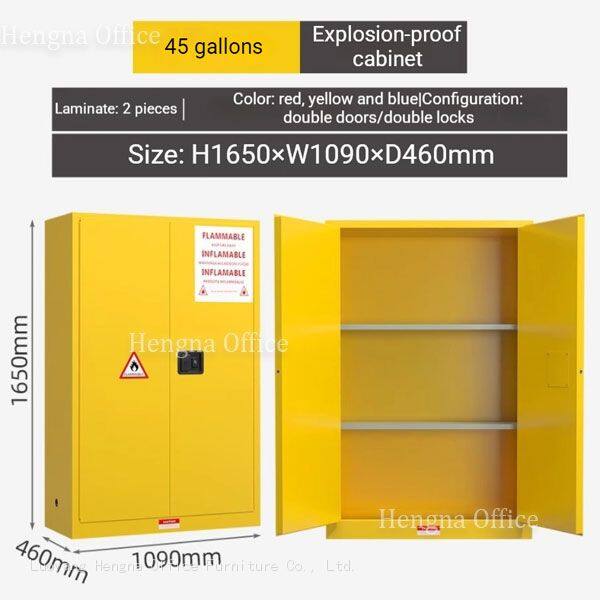

| Dimensions | 1650mm (H) x 1090mm (W) x 460mm (D) |
Why Auto Repair Shops Need This Solution
Mechanics often deal with brake cleaners, gasoline, and solvent-based paints. Leaving these in open racks is a violation of safety codes. This 45 Gallon Yellow Cabinet allows for:

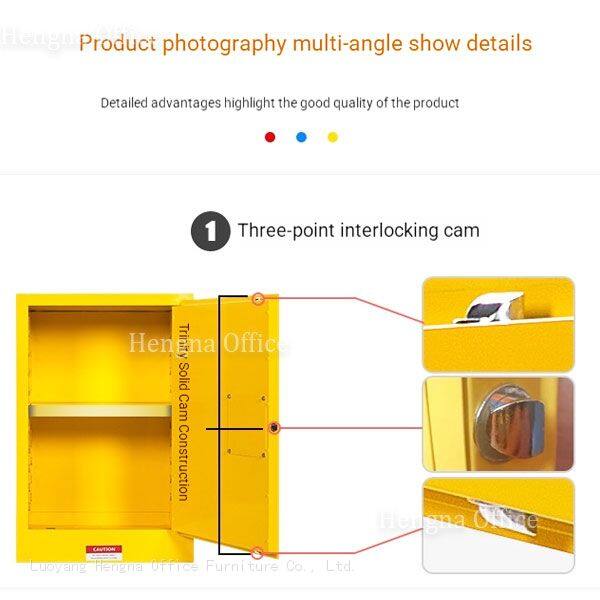

Controlled Access: The high-security lock prevents unauthorized personnel or customers from touching dangerous fluids.

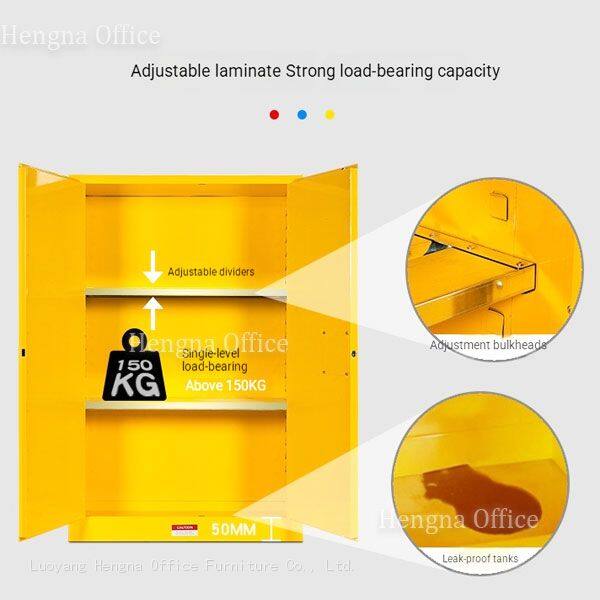

Organization: Adjustable galvanized shelves allow you to store different-sized cans, from small additives to large solvent containers.
Visual Warning: The bright yellow color and "Flammable - Keep Fire Away" labels serve as an immediate visual warning to everyone in the workshop.
Q: Does this cabinet meet OSHA 1910.106 requirements?
A: Yes, it is fully compliant with OSHA and NFPA 30 standards, featuring 18-gauge double-wall steel with a 1.5-inch insulating air gap to protect flammables from external fire.
Q: Can it be used in a commercial auto repair shop?
A: Absolutely. It is designed for industrial environments to safely store motor oils, brake cleaners, and thinners, keeping your shop compliant with local fire marshal inspections.
Q: Does it come with an grounding wire?
A: Yes, every cabinet includes a built-in electrostatic grounding clip to neutralize static buildup and prevent accidental sparks during liquid transfer.
Investing in a professional safety storage cabinet is the most cost-effective way to avoid heavy OSHA fines and protect your business assets. Our 45 Gallon Yellow Steel Cabinet offers the durability, compliance, and fire protection required for demanding industrial applications.
