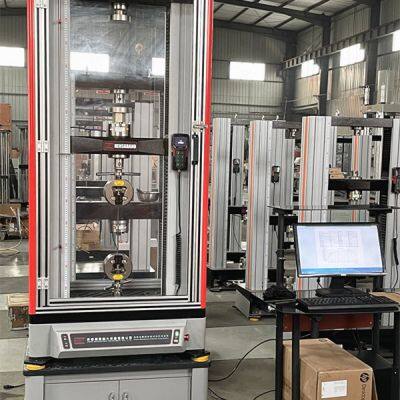

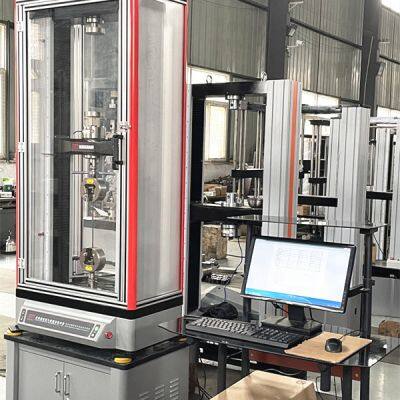

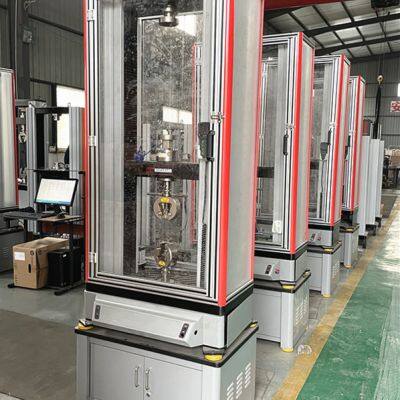

HST New 5 KN Max Capacity Electronic Universal Testing Machine Price Tensile Strength Tester Servo Tensile Testing Machine
US$ 38488.45
1 - 4 Set
US$ 34989.50
≥5 Set
Key Specifications
Get Latest Price
Type:
high quality universal tensile test equipment, Testing Machine
Warranty:
1year
Brand Name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST/OEM WDW-100 Universal Testing Machine (UTM) 100kN 10t Computer Automatic Tensile Testing SystemUS$ 4700 - 5700MOQ: 1 Set -
HST 300KN Electronic Universal Testing Machine Flexural and Compression Testing MachineUS$ 83974.80 - 90972.70MOQ: 1 Set
-
WDW-20E 20kn HST Rubber Plastic Material Tensile Universal Testing MachineUS$ 4000 - 4500MOQ: 1 Set
-
HST Fully Automatic Portable Vertical Tensile Strength Tester for Paper Tensile Strength Testing MachineUS$ 41987.40 - 48985.30MOQ: 1 Set
-
WDW-100E 5t 10t Metal Mechanical Tensile Compression Peel Bending Universal Testing MachineUS$ 699 - 1899MOQ: 1 Set
Warranty
1year
Brand Name
HST
Place of Origin
Shandong, China
testing force
10kN-600kN 1Ton-60Ton
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
test width
375mm
Customized support
OEM
Voltage
380 V
Power
2KW
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
