Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines

Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines photo-1

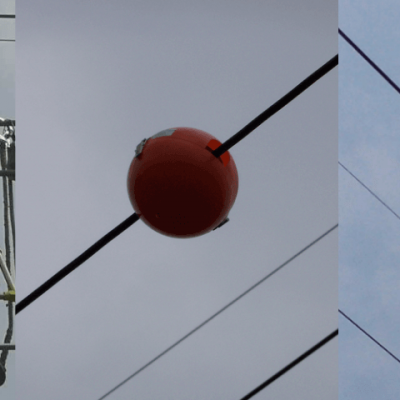

Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines photo-2
Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines photo-3
US$ 2118 ≥1 Combo
Key Specifications
Get Latest Price
Trademark:
TLKS
Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
30 days
Trademark TLKS
Origin China
Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines
Product Remarks: Recommended New Product - Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power LinesProduct Category: High-Voltage External Force Damage Prevention Warning SeriesI. Product Overview
With the development of science and technology, electricity has become an indispensable part of our daily life and production. High-voltage overhead transmission lines are widely distributed across cities, villages, and span roads, bridges, etc., being closely intertwined with people's economic activities (such as production and construction). During activities near these lines, a momentary oversight can easily lead to high-voltage electric shock accidents, especially at night. The Intelligent Warning Device for External Force Damage Prevention on High-Voltage Power Lines achieves a warning effect through high-brightness display on its LED screen at night. When pedestrians, vehicles, tower cranes, ships, or other objects pass under the device, the radar detection unit is activated immediately, which links with the voice warning unit to trigger the siren and strobe warning lights. This reminds passing vehicles, ships, low-altitude helicopters, and other entities to stay away from the high-voltage lines, thereby preventing casualties and property losses.
II. Product Features
  • Tested by authoritative institutions such as China Electric Power Research Institute (CEPRI) and Wuhan High Voltage Research Institute (WHVRI), the device can withstand high-current impacts;

  • Wide application range, suitable for voltage levels of 10-500KV;

  • Obtains working power through conductor inductive power extraction, ensuring stable and reliable power supply;

  • Adopts dual technologies of Doppler radar and intelligent voice detection, maintaining excellent detection performance even at long distances;

  • Uses long-life, high-brightness light-emitting devices with high luminosity and strong penetration, flashing to alert of the presence of power lines;

  • Equipped with lightning protection, anti-corrosion, anti-rust, waterproof, and dustproof technologies, as well as vibration fatigue resistance, guaranteeing stable operation in harsh environments;

  • Can adapt to various severe operating conditions; its performance remains unchanged under complex environments such as rain, snow, ice, and oil contamination;

  • Features a user-friendly installation design with convenient and reliable mounting methods;

  • Capable of operating under both high and low temperature conditions;

  • Possesses electromagnetic interference (EMI) resistance.

III. Main Technical Parameters
ModelTechnical IndicatorsTLKS-PLSA-ITLKS-PLSA-II

Operating VoltageDC 12VDC 12V

Operating Load Current30A~600A30A~600A

Ambient Temperature-40ºC~70ºC-40ºC~70ºC

Ambient Humidity0~100%0~100%

Impulse Current50kA, 60ms; 33kA, 200ms; 15kA, 2s50kA, 60ms; 33kA, 200ms; 15kA, 2s

Single LED Display30w/20mA30w/20mA

Visible Range of Light Source>100m>100m

Alarm Detection Distance4~6m4~6m

Alarm Sound PropagationContinuous alarm sound with a propagation distance of ≥50mContinuous alarm sound with a propagation distance of ≥50m

Wire Diameter for Fixture Installation15mm-35mm, customizable according to user requirements20mm-40mm, customizable according to user requirements

Product Dimensions350mm240mm100mm (LengthWidthHeight)280mm (Diameter)


Product Tags: Electrical Warning Equipment , Wire Warning , High Voltage Warning
