Roof & Gutter De-Icing Self-Regulating Heat Cable
US$ 1.4 - 2.6
MOQ: 100 Meters
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
Other, ISO9001, CE, CCC, RoHS
Application:
Other, Water pipe freeze protection
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
49W 66W High Temperature Industrial Self-Regulating Heating Cable for Process PipesNegotiableMOQ: 100 Meters -
Self-Regulating Heating Cable for Pipe Freeze Protection and Easy Installation in Residential UseUS$ 1.4 - 2.6MOQ: 100 Meters
-
Flexible Self-Regulating Heating Cable With Braided Shield for Grounding and Mechanical ProtectionUS$ 1.4 - 2.6MOQ: 100 Meters
-
Industrial Grade Self-Regulating Heating Cable for Process Temperature Maintenance in PetrochemicalUS$ 1.4 - 2.6MOQ: 100 Meters
-
Iecex Certified Explosion-Proof Self-Regulating Heating Cable for Hazardous AreasUS$ 1.4 - 2.6MOQ: 100 Meters
Type
Insulated
Certification
Other, ISO9001, CE, CCC, RoHS
Application
Other, Water pipe freeze protection
Insulation Material
Other, Polyolefin
Conductor Material
Copper
Conductor Type
Stranded
Brand
Other, Huaning
Material Shape
Round Wire
Range of Application
Other, Fuel Oil and Chemical
Transport Package
Carton
Specification
40x40x20
Trademark
xinhuaning
Origin
China
Self-regulating Heating Cable Decription
The DWK series of self-regulating heating cables from Shandong Huaning offers reliable performance for freeze prevention and process temperature stability.
The DWK series is designed to maintain process temperatures up to 150°F (65°C) and can withstand intermittent exposure to temperatures up to 185°F (85°C).
The heating cables are configured for use in nonhazardous and hazardous locations, including areas where corrosives may be present.
Specification
Applications
Snow-Melting,Antifreeze, Process Maintain Temperature
Key Configurations
Maximum Maintain/ Continuous Temperature 150°F (65°C)
Maximum Intermittent Exposure Temperature 85°F (85°C)
Temperature Classification 185°F (85°C)
Minimum Installation Temperature - 76°F (- 60°C)
Minimum Bend Radius 25.4mm at -20° C /
35mm at -30° C
Bus Wire Size 19x0.32
Construction
(1) Bus Wire Nickel plated copper 19 × 0.32 approximately 16 AWG
(2) Heating Core Self-regulating conductive core ordinary PTC flame retardant PTC or fluorine containing PTC
(3) Inner Insulation Layer Modified polyolefin flame retardant polyolefin or fluoropolymer material
(4) Braid Layer Tinned copper wire braid or metal braid minimum 75% coverage
(5) Outer Jacket Layer -CR Models Modified polyolefin -CT Models Fluoropolymer material
Technical Specifications
(Custom configurations available upon request.)
Model | DWK | ZWK | GWK |
Max.maintain temp. | 65 | 85 | 150 |
Max.exposure temp. | 85 | 125 | 250 |
Bus wire | 19x0.32 | 19x0.32 | 7x0.45 |
Min.install temp. | -60℃ | -60℃ | -60℃ |
Inner Insulation Layer | Polyolefin | Polyolefin or Fluropolymer | Polyolefin or Fluropolymer |
Braid Layer | Aluminum Magnium or Tinner Copper | Aluminum Magnium or Tinner Copper | Aluminum Magnium or Tinner Copper |

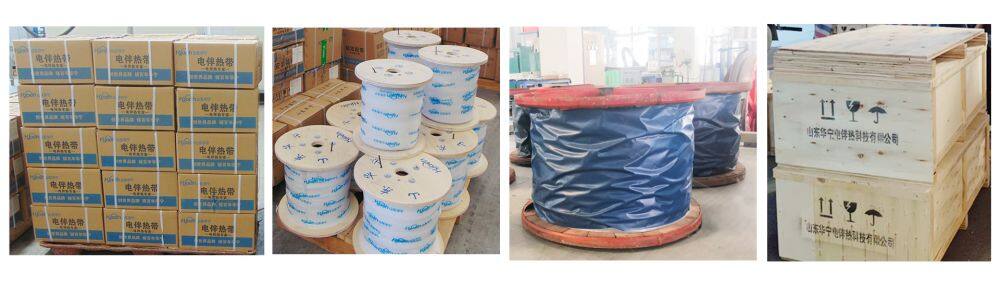

PACKING &DELIVERY
After Sales Service
Standard Warranty: 12 months after invest in operating
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Shandong Huaning Electric Heating Technology Co.,Ltd
Shandong Huaning Electric Heating Technology Co., Ltd. is a comprehensive technological manufacturer of
electric heat tracing cable, explosion-proof electric heater, and explosion-proof distribution boxes integrating
R&D, design, sales, system integration, operation and operation and maintenance services.
electric heat tracing cable, explosion-proof electric heater, and explosion-proof distribution boxes integrating
R&D, design, sales, system integration, operation and operation and maintenance services.
Since its establishment in 2007, the company has successively passed many authoritative organization
certifications,such as IS09001 Quality Management System Certification, China Classification Society
Certifcation, National Explosion-Proof Electrical Product Quality Supervision and Inspection Center,National
Wire and Cable Inspection Center, Shandong Provincial Product Quality Supervision and Inspect Institute
Certifcate.It has won many honorary titles such as National High-tech Enterprise, Provincial and Municipal
"Specialized and New" Enterprise, Jinan Gazelle Enterprise, etc., and has 6 invention patents, 38 utility
model patents, and 5 software copyright patents.The company has ultra-high voltage long-line skin heating

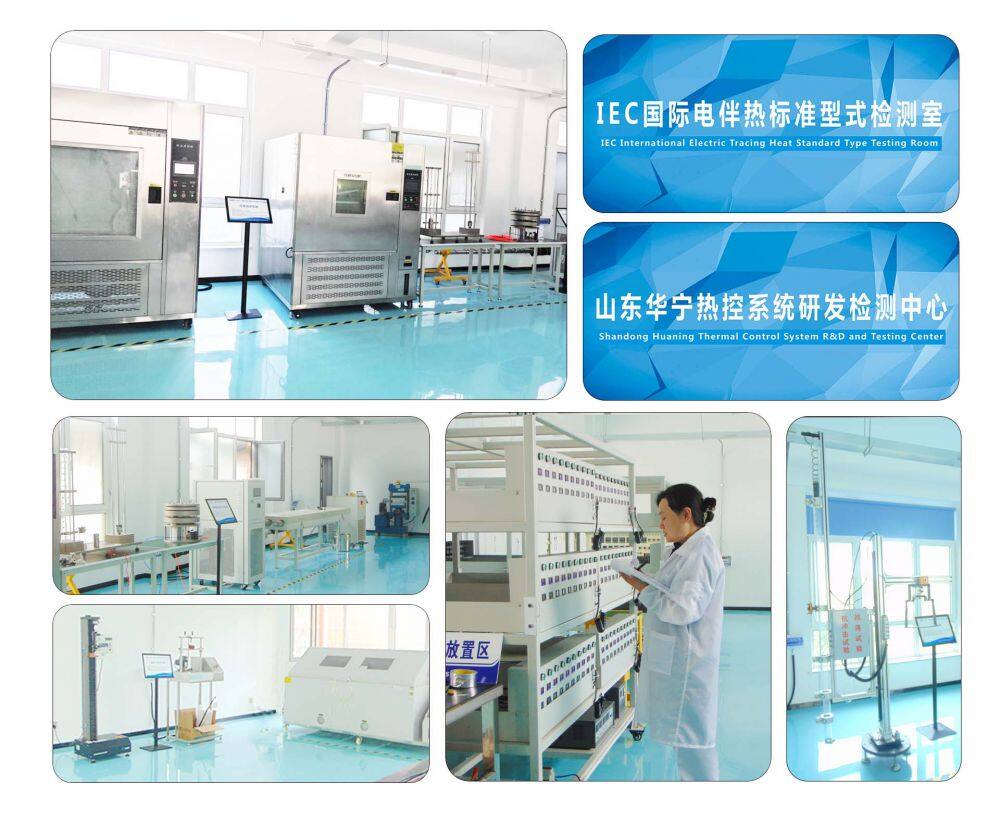

research institute,CSA international electrical standards authorized laboratory, CNOOC submarine heating
cable R&D center, Shandong Huaning Electric Heating Technology Engineering Co., Ltd.
certifications,such as IS09001 Quality Management System Certification, China Classification Society
Certifcation, National Explosion-Proof Electrical Product Quality Supervision and Inspection Center,National
Wire and Cable Inspection Center, Shandong Provincial Product Quality Supervision and Inspect Institute
Certifcate.It has won many honorary titles such as National High-tech Enterprise, Provincial and Municipal
"Specialized and New" Enterprise, Jinan Gazelle Enterprise, etc., and has 6 invention patents, 38 utility
model patents, and 5 software copyright patents.The company has ultra-high voltage long-line skin heating
research institute,CSA international electrical standards authorized laboratory, CNOOC submarine heating
cable R&D center, Shandong Huaning Electric Heating Technology Engineering Co., Ltd.

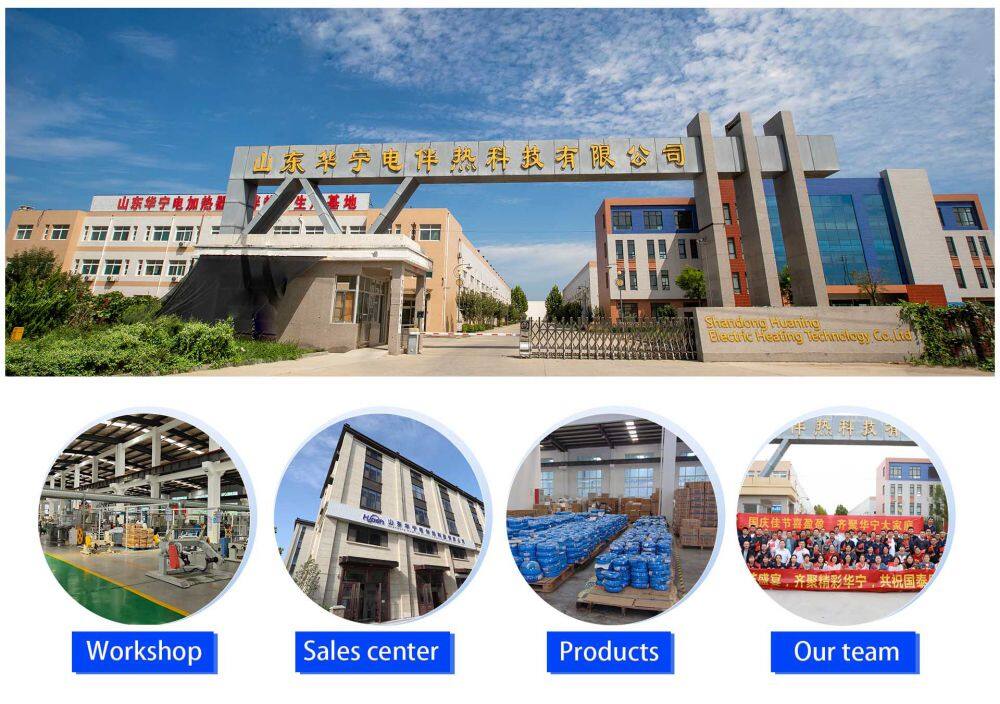

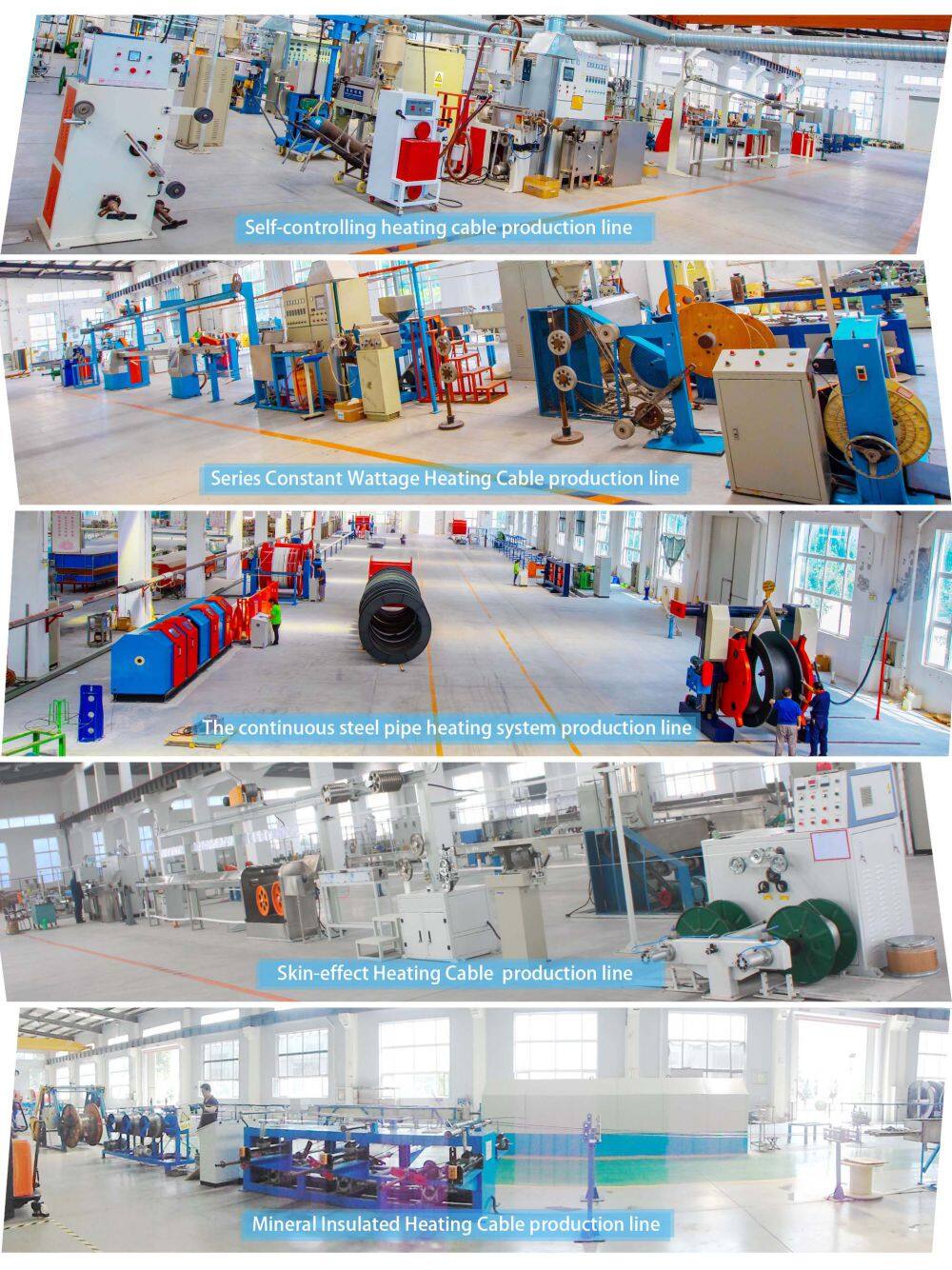

The Huaning factory covers an area of more than 60 acres. It has four production workshops and 14
professional production lines, including 4 sets of self-limiting temperature production lines with a monthly
output of 500,000 meters; 3 sets of mineral insulated heating cable production lines with a monthly output of
100,000 meters ; 4 sets of series and parallel connection, with a monthly output of 500,000 meters; 2 sets of
skin-effect cables, with a monthly output of 50,000 meters; 1 set of sampling composite pipe production lines,
with a monthly output of 35,600 meters; 2 sets of explosion-proof wiring boxes and 2 sets of explosion-proof
heaters production line.
professional production lines, including 4 sets of self-limiting temperature production lines with a monthly
output of 500,000 meters; 3 sets of mineral insulated heating cable production lines with a monthly output of
100,000 meters ; 4 sets of series and parallel connection, with a monthly output of 500,000 meters; 2 sets of
skin-effect cables, with a monthly output of 50,000 meters; 1 set of sampling composite pipe production lines,
with a monthly output of 35,600 meters; 2 sets of explosion-proof wiring boxes and 2 sets of explosion-proof
heaters production line.
Since the establishment of the company, Shandong Huaning has always adhered to green service as its
core, promoting the purpose of improving the thermal energy conversion rate and thermal energy utilization
core, promoting the purpose of improving the thermal energy conversion rate and thermal energy utilization
rate of productsand opening a new era of smart energy for electric heating products.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 10–15 days; customized units require 30–45 days.
A: Standard models ship in 10–15 days; customized units require 30–45 days.
Q: Do you have international certification?
A: Yes, we have EAC,IECEX,ATEX,CE,ISO,etc.
A: Yes, we have EAC,IECEX,ATEX,CE,ISO,etc.
Q: Do you have past performance list overseas?

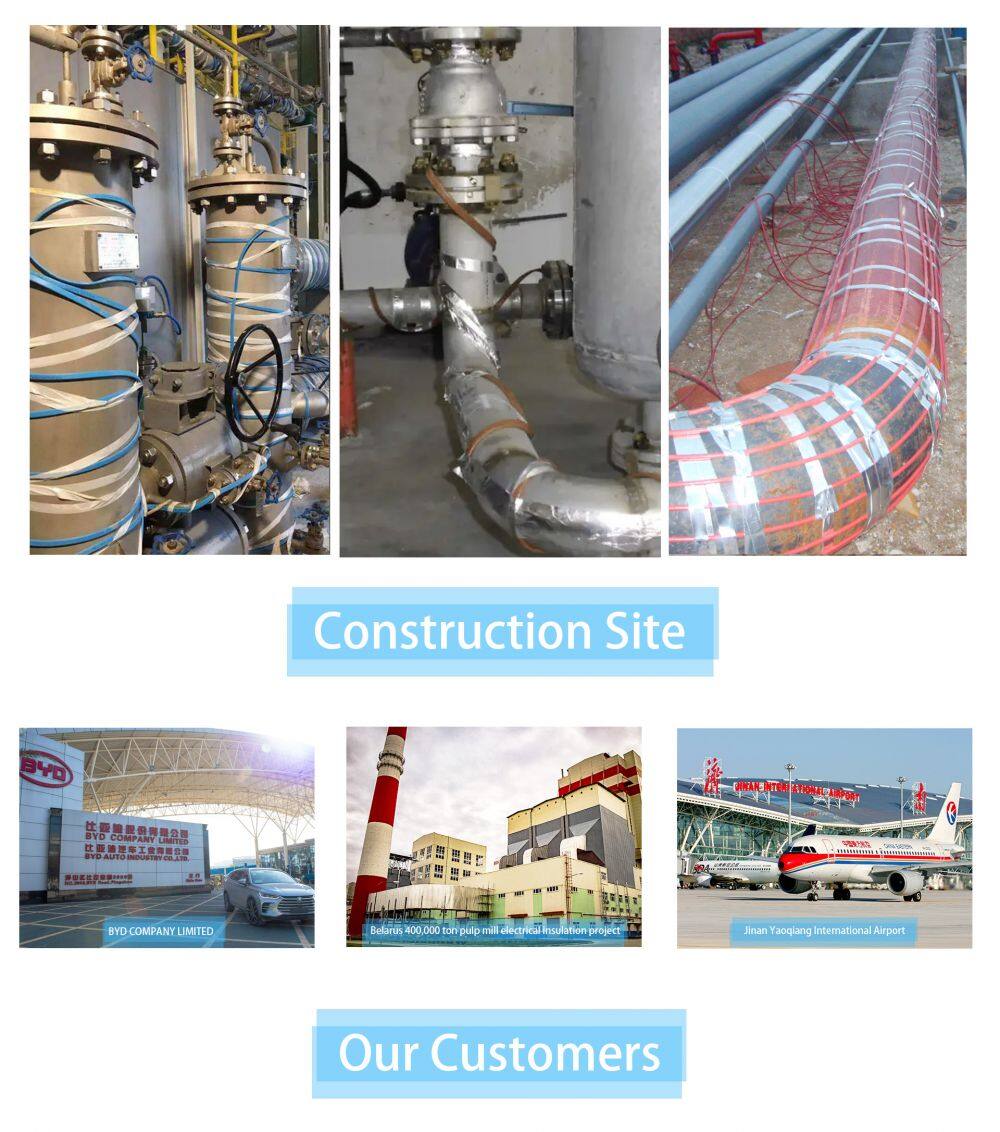

A:Yes,we have participated many oversea projects now
A:Yes,we have participated many oversea projects now
Q: How do you assure the product quality?
A: we have international sandard laboratory and each batch cargo will be inspected.
A: we have international sandard laboratory and each batch cargo will be inspected.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
