Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances thumbnail-3

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances thumbnail-4

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances photo-1

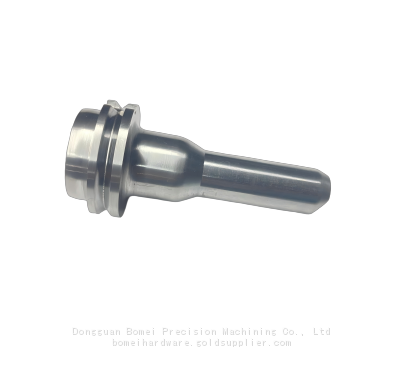

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances photo-2

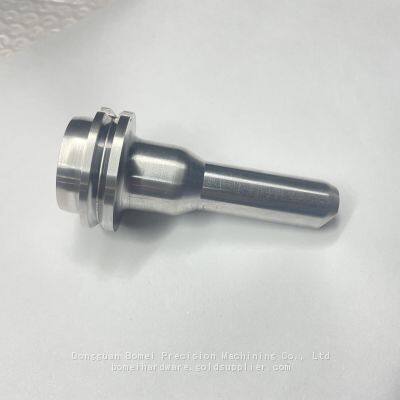

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances photo-3

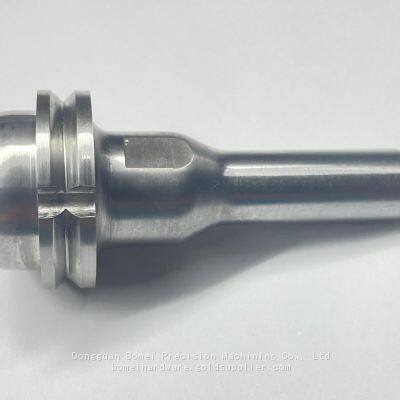

Custom Fixture Nozzles Hardened Surface Treatment CNC Machining Different Sizes Nozzles With Tight Tolerances photo-4

Product Spotlights

High-precision custom fixture nozzles with hardened surface treatment, engineered via CNC machining for tight dimensional tolerances and superior wear resistance—ideal for industrial automation, fluid control, cooling systems, and workpiece positioning applications.

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Material:

Steel

Application:

Fastener, Auto and Motorcycle Accessory, Machinery Accessory

Surface Treatment:

Other

Contact Supplier Request Quote Chat Now

Dongguan Bomei Precision Machining Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Product Details
Company Profile
Contact Us

Material Steel

Application Fastener, Auto and Motorcycle Accessory, Machinery Accessory

Surface Treatment Other

Standard GB, EN, API650, China GB Code, JIS Code, TEMA, ASME

Production Type Mass Production

Machining Method CNC Turning

Parameter	Key Details
Base Materials	Alloy Steel (42CrMo/Cr12MoV): High hardenability, fatigue resistance, suitable for high-pressure fluid nozzles
Processing & Tolerance	3/4/5-axis CNC precision drilling, turning, milling; micro-hole machining (minimum aperture 0.1mm); tapping (M2–M12 threads for fixture mounting); tight tolerances: Aperture tolerance ±0.005mm; outer diameter tolerance h5; length tolerance ±0.01mm; concentricity ≤0.008mm; surface roughness Ra 0.2–0.8μm (smooth fluid channel for uniform flow)
Compatibility	Fits industrial automation fixture systems, CNC machine tool cooling nozzles, workpiece cleaning fixtures, spray coating equipment, and hydraulic/pneumatic control fixtures; compatible with fixture mounting plates, robotic arms, and fluid delivery pipelines

Application Scenarios

CNC Machine Tool Cooling Systems: Hardened alloy steel nozzles—tight-tolerance aperture ensures precise coolant spray targeting, wear resistance withstands high-pressure fluid impact, reducing tool wear and improving machining accuracy.
Automotive Assembly Fixtures: Stainless steel corrosion-resistant nozzles—used for workpiece cleaning before painting, uniform spray coverage removes dust/oil residues, ensuring coating adhesion.
Electronics PCB Manufacturing: Micro-aperture brass nozzles—thermal conductivity enables targeted cooling of PCB components during soldering, tight tolerances prevent overspray damage to sensitive parts.
Food Processing Equipment: 316 stainless steel nozzles—hygienic, corrosion-resistant, suitable for food-grade cleaning fluid spray fixtures, compliance with food safety standards.
Industrial Automation Positioning Fixtures: Tapered-tip hardened nozzles—used for workpiece alignment and clamping auxiliary positioning, high precision ensures consistent part placement in assembly lines.
