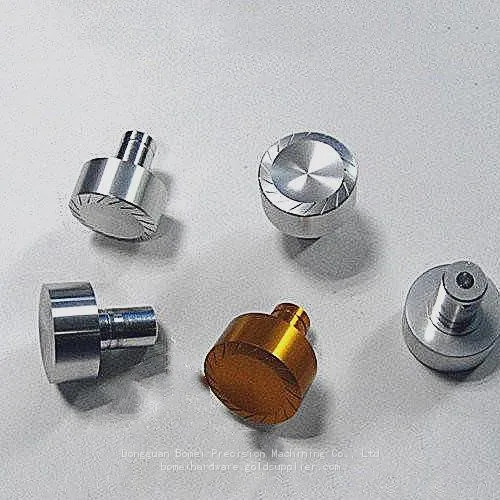

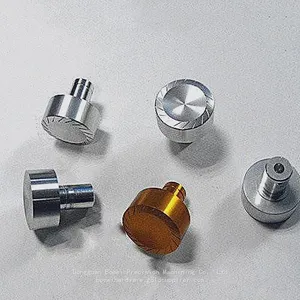

Custom Turned Aluminum Adjustment Knobs For Electrical Appliance
US$ 0.15 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Aluminum
Certification:
CE, ROHS, GS, ISO9001
Application:
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery, Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Precision CNC Machining Mechanical Parts Adapters ConnectorsUS$ 0.25 - 16MOQ: 1 Piece -
CNC Shaft Sleeves Wear-Resistant Bushings AISI 304/431 Sliding SleevesUS$ 15 - 43MOQ: 1 Piece
-
Black POM Rod Pin CNC Machining Turning Machined Plastic End Cap PlugUS$ 0.15 - 6.9MOQ: 1 Piece
-
Custom Machining Aluminum CNC Turned Tubes For Lighting Parts and AccessoriesUS$ 1.5 - 24MOQ: 1 Piece
-
OEM Brass Nozzles Spray Spare Parts AccessoriesUS$ 0.3 - 4.5MOQ: 1 Piece
Material
Aluminum
Certification
CE, ROHS, GS, ISO9001
Application
Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery, Other
Standard
DIN, ASTM, GOST, GB, JIS, ANSI, BS
Customized
Customized
Condition
New
Technical Specifications
| Parameter | Key Details |
|---|---|
| Material | 6061-T6 aluminum alloy (lightweight, easy to machine, excellent anodizing compatibility); 6063 aluminum alloy (superior surface finish for high-gloss polished knobs) |
| Processing | CNC precision turning, polishing (mirror or satin finish), custom knurling/texturing (for anti-slip grip), drilling/tapping (for shaft mounting), multi-color anodizing; post-anodizing sealing for color fastness |
| Tolerance | Dimensional tolerance ±0.01–±0.03mm; shaft hole tolerance H7 (ISO standard) for tight fit with 3–20mm diameter shafts; concentricity ≤0.015mm (ensures smooth rotation without wobbling) |
| Size Range | Diameter: 15–80mm; height: 10–40mm; shaft hole sizes: 3/4/5/6/8/10mm (customizable); optional integrated indicator lines or logo engraving for branding |
| Surface Finish & Color | Polishing (mirror-smooth for decorative appeal, satin for matte texture); custom anodized colors (black, silver, red, blue, gold, green, and Pantone-matched colors); UV-resistant sealing layer prevents fading; scratch-resistant (hardness up to 6–8 HRC after anodizing) |
| Mechanical Properties | Tensile strength ≥276 MPa (6061-T6); operating temperature -40°C to 180°C; corrosion-resistant (anodized layer acts as protective barrier); non-magnetic, safe for electrical applications |
| Mounting Compatibility | Fits D-shaft, round shaft, and spline shaft designs; compatible with potentiometers, switches, control panels of electrical appliances; optional set screw holes or press-fit design for secure installation |
