Product Description and Instruction Manual:
Product Overview:

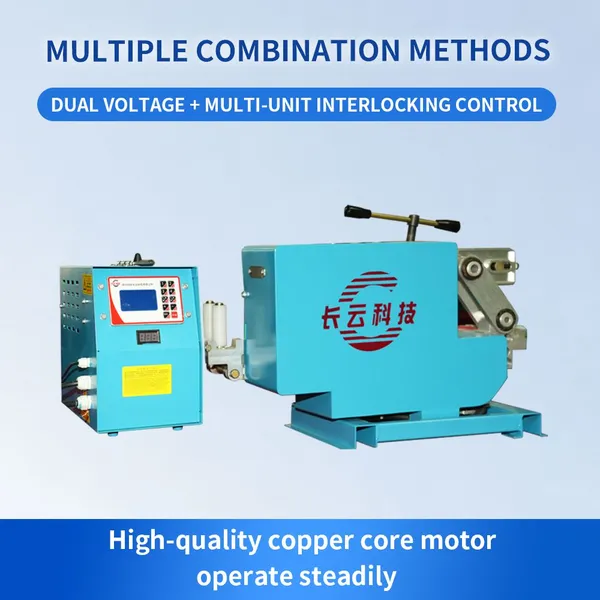

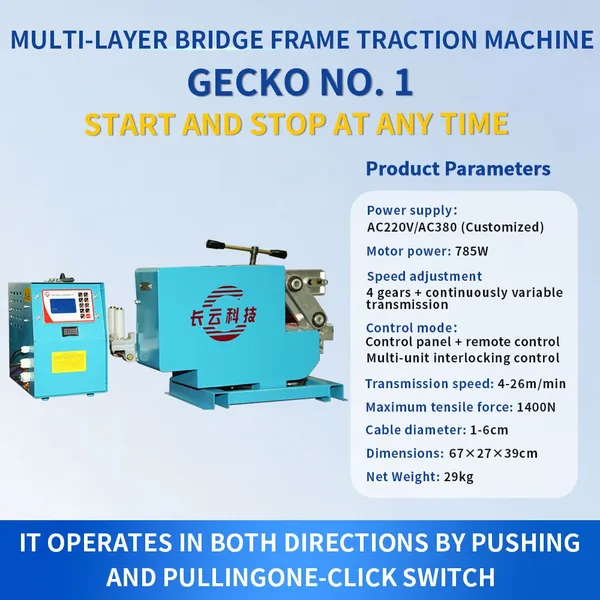

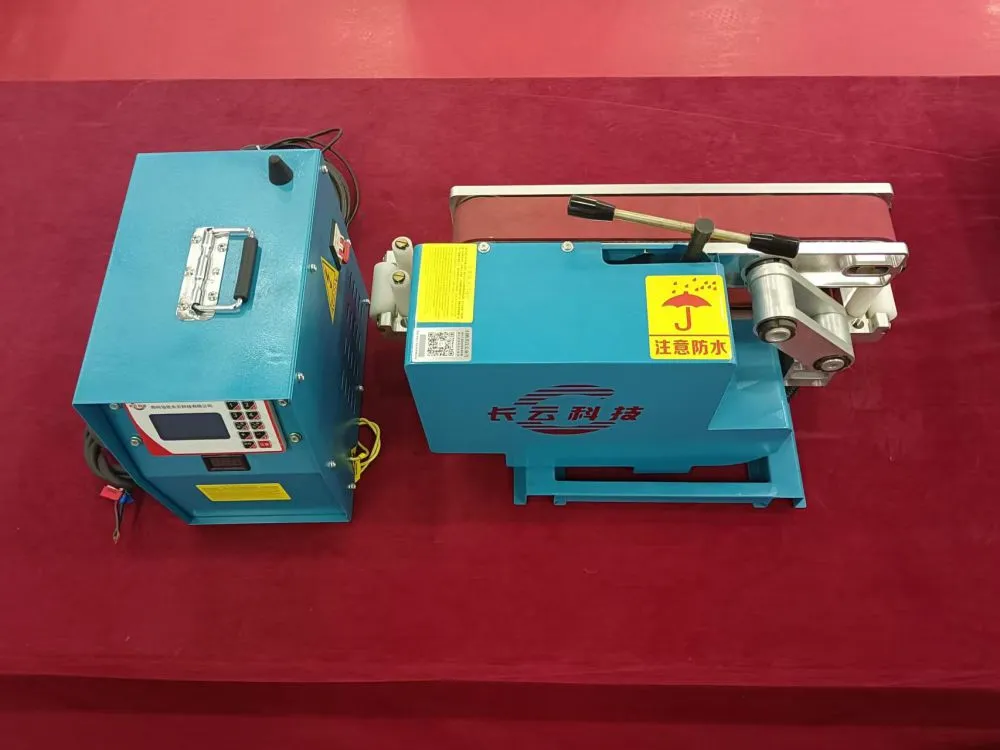

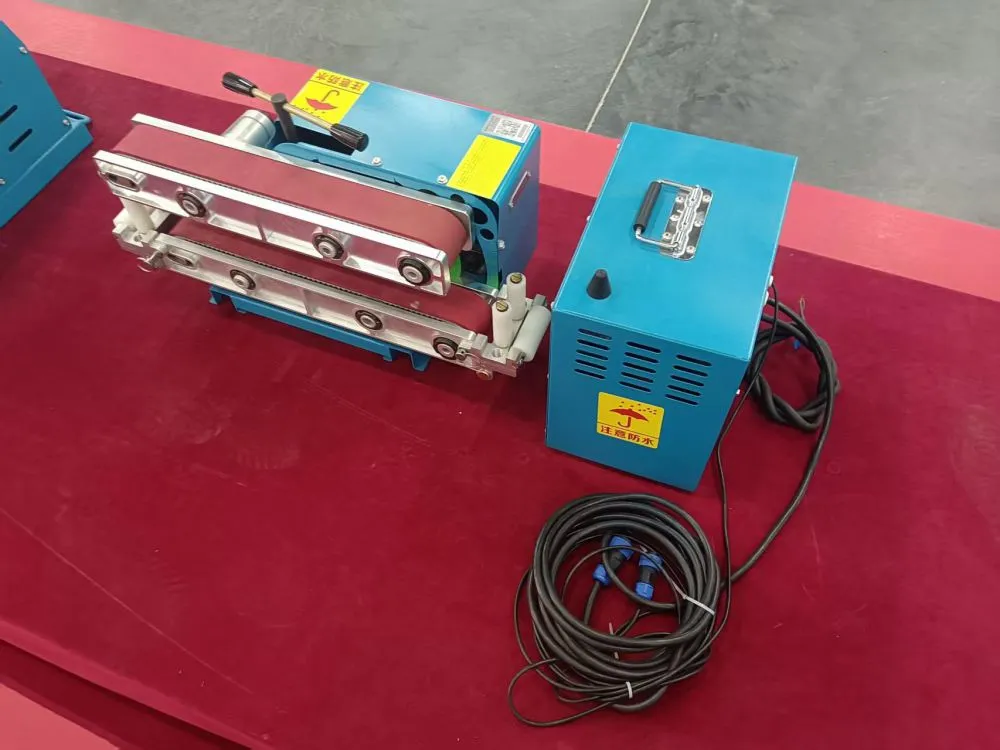

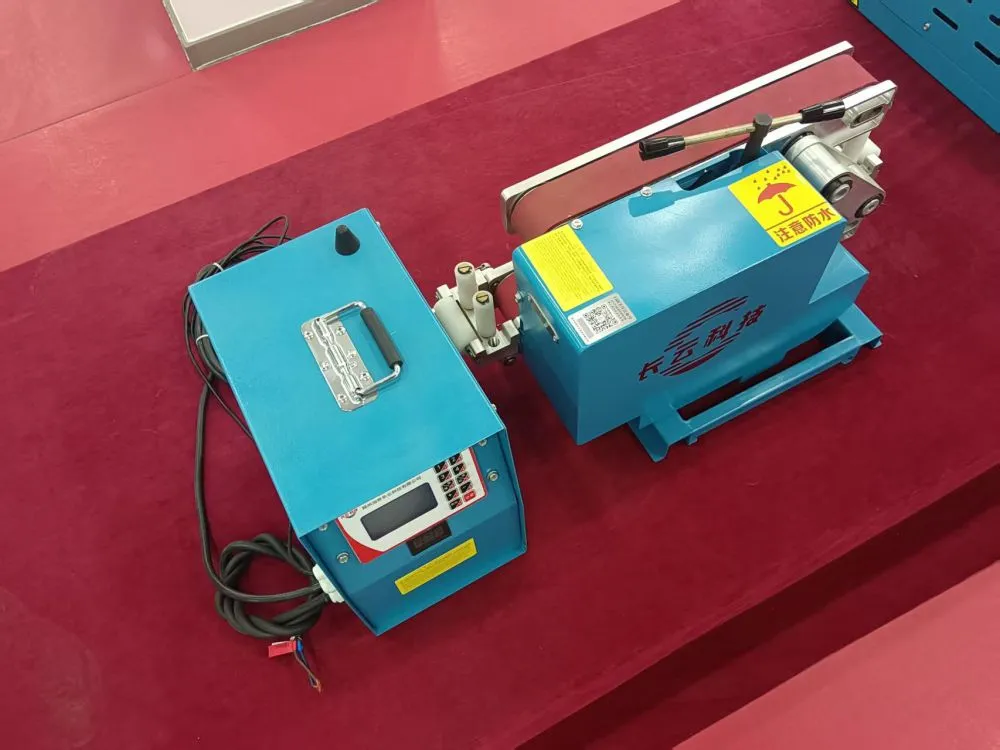

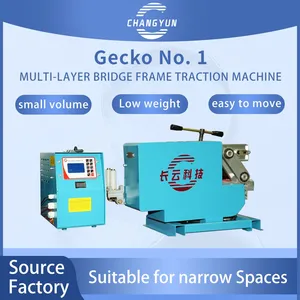

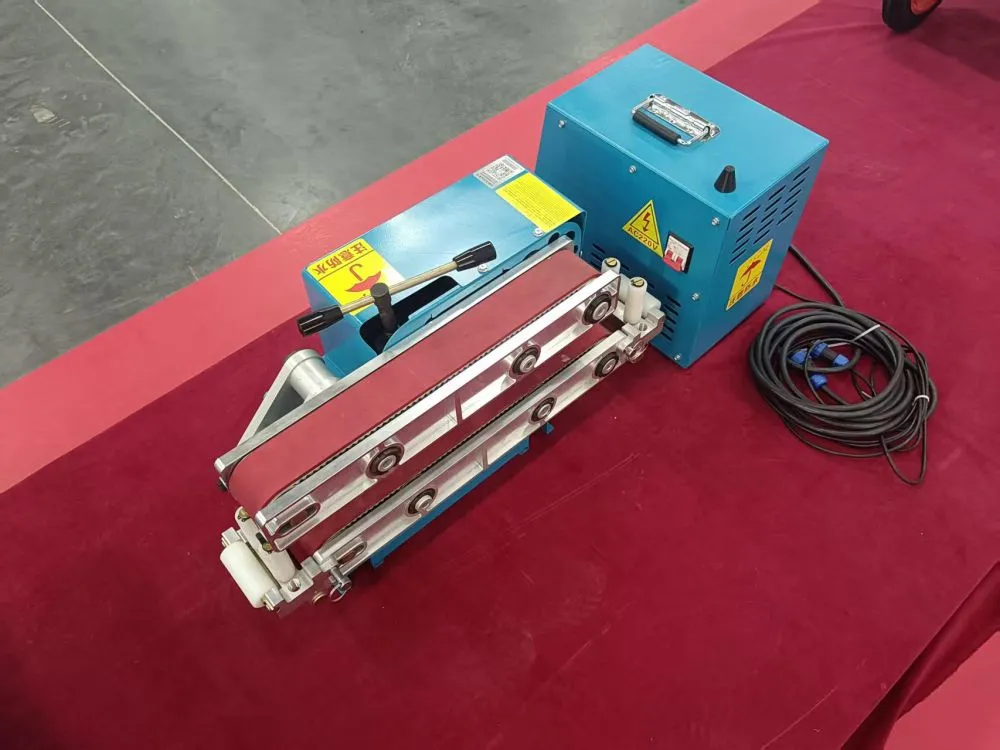

The Gecko-1 Horizontal Lattice Bridge Tractor is a specialized machine designed for hauling multi-tier cable bridges. It is lightweight, compact, and easy to operate, making it ideal for use in tight spaces. With a large range and fast speed, it delivers even pressure and strong force for efficient cable bridge installation. The tractor can be used in horizontal, suspended, or side-hung configurations.
Key Features:
Light, Compact, Easy Operation: Designed for portability and ease of use in confined areas.
Large Range, Fast Speed: Covers a wide area quickly for efficient installation.
Even Pressure, Strong Force: Ensures consistent and powerful pulling force.
Versatile Mounting: Can be used in horizontal, suspended, or side-hung setups.
Multi-sync Control: Allows for synchronized operation with multiple units.
Accessories Included:
Control Box: For operating the tractor.
Base Accessories: For stable mounting.
Suspension Accessories: For suspended installation.
Operating Instructions:
Setup:
Choose the appropriate mounting configuration (horizontal, suspended, or side-hung) based on the work site.
Install the tractor using the base or suspension accessories as needed.
Connect the power supply (AC220V or 380V) to the control box.
Operation:
Turn on the control box and select the operating mode (single or multi-sync).
Adjust the speed within the range of 3-12m/min as required.
Start the tractor and monitor the cable bridge hauling process.
During Operation:
Ensure the cable bridge is moving smoothly and evenly.
Adjust the force and speed as necessary to maintain optimal performance.
Shutdown:
Stop the tractor using the control box.
Disconnect the power supply.
Remove the cable bridge and clean theactor and accessories
Safety Precautions:
Always wear appropriate personal protective equipment (PPE) during operation.
Ensure the cable diameter is within the specified range (Ø1-6cm).
Regularly inspect the tractor and accessories for wear or damage.
Follow proper mounting procedures to ensure stability and safety.
Maintenance Guidelines:
Regularly clean the tractor and accessories to prevent dirt buildup.
Check and tighten any loose bolts or connections.
Inspect the power cables and control box for damage.
Store the tractor and accessories in a dry, protected area when not in use.
