Product Introduction

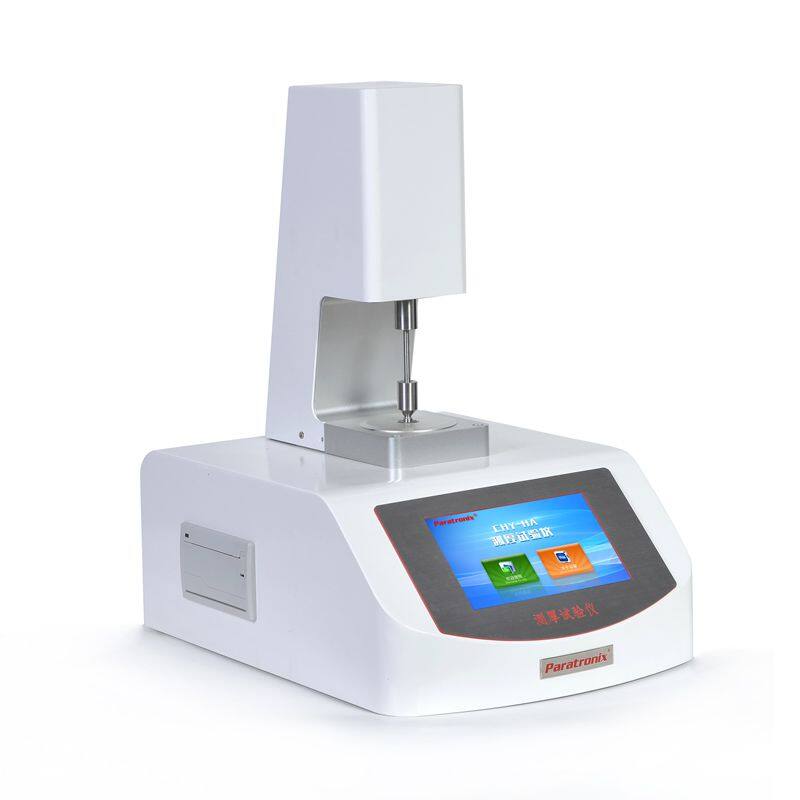

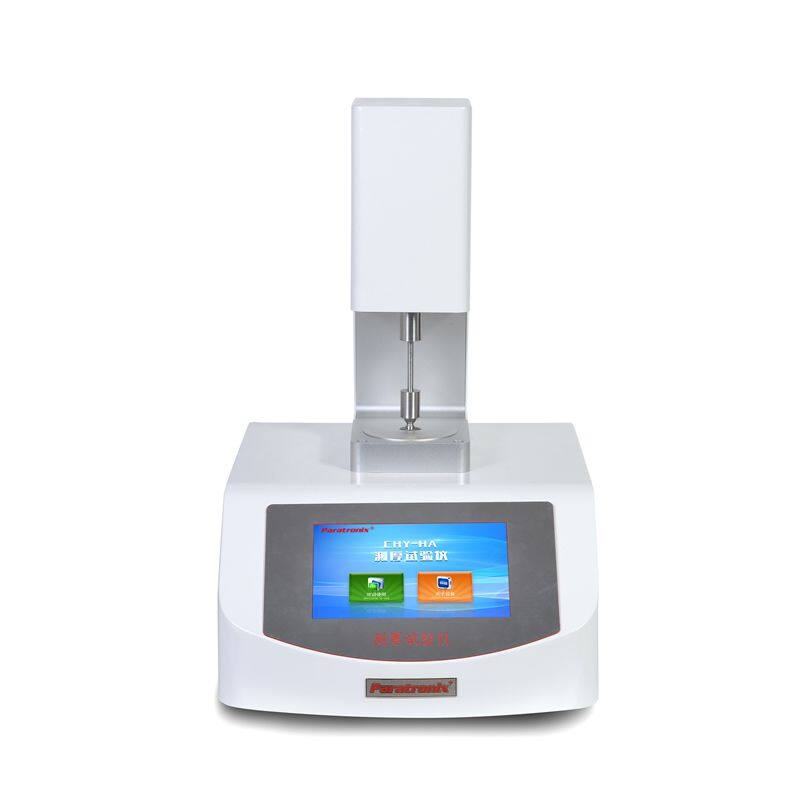

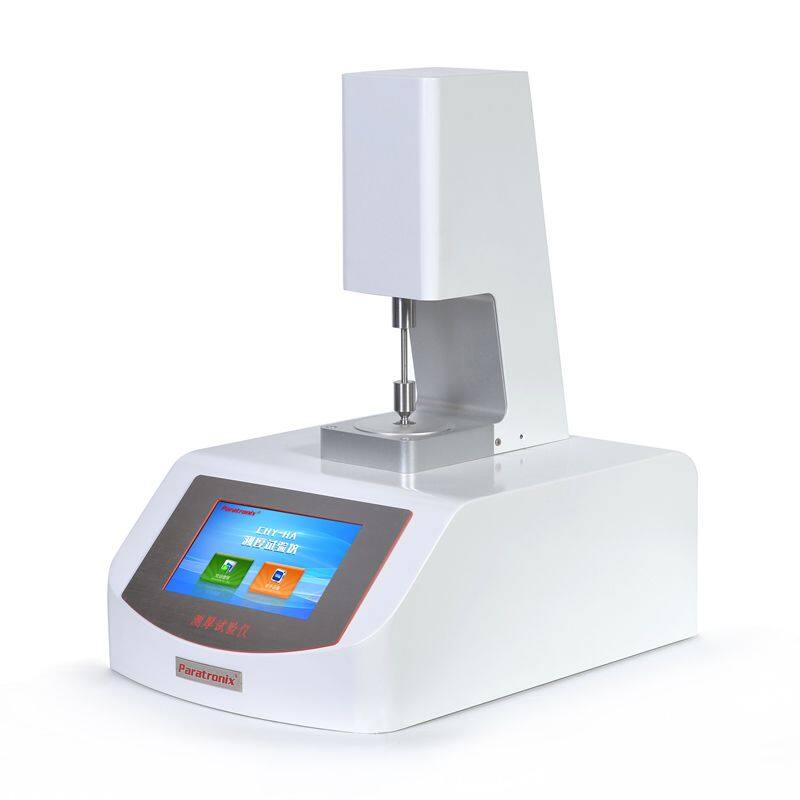

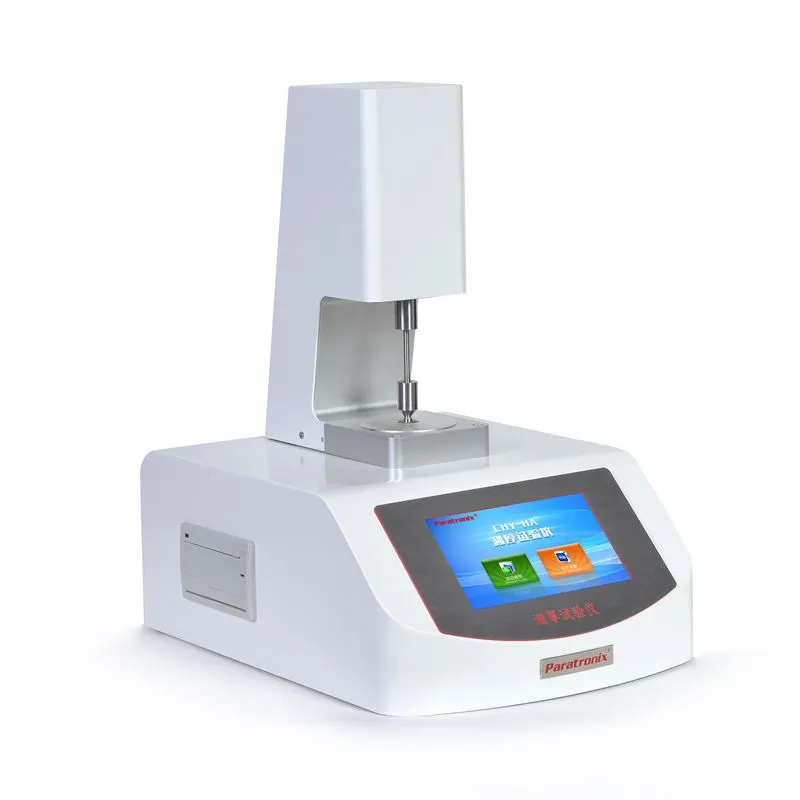

PTT-03A Thickness Tester is a highly precise thickness tester with mechanical contact method, which can be used to measure the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc.
Product Features
● Imported high-speed and high-precision sampling chip, effectively ensure the test accuracy
● Built-in micro printer for data printing
● 7 inch HD color LCD screen to display test data in real time
● Strictly follow the standard design of the contact area and measurement pressure, and support various non-standard customization
● Equipped with a micro printer and a standard RS232 interface, which facilitates external connection and data transmission
● Standard gauge block for calibration
Test Standards
This instruments conforms to multiple international standards ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702
Configuration
Standard Configuration: Main instrument, standard gauge block
Optional: Non-standard gauge block
