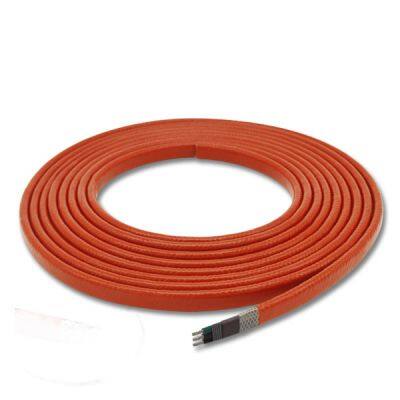

Three-core 380V Parallel Constant Wattage Heating Cable for Heating With Long Pipeline
US$ 2 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Insulation Material:
XLPE
Conductor Material:
Copper
Jacket:
FEP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ce Certification Roof Gutter Snow Melting Heating Cable With PVC Protective Jacket Underfloor Heating Cable From OEM FactoryUS$ 3.50MOQ: 100 Meters -
Top-Selling WiFi Programmable Electric Underfloor Heating Thermostat Temperature Controller for Thermostat HeatingUS$ 20 - 35MOQ: 10 Pieces
-
Electric Underfloor Heating System Under Tile Floor Heating Underfloor Heating Mat for House WarmingUS$ 6 - 12MOQ: 10 Square Meters
-
Hot Factory Price Water Heating Thermostat for Household UsedUS$ 20 - 30MOQ: 10 Pieces
-
Snow Melting Electric Heat Wire Snow and Ice Melting Heating Mat for Driveway and WalkwayUS$ 25 - 35MOQ: 10 Square Meters
Insulation Material
XLPE
Conductor Material
Copper
Jacket
FEP
Number of Conductors
1
Brand Name
youyu
Place of Origin
Anhui, China
Product name
three-core 380V Parallel Constant Wattage heating cable
Core
three
Voltage
360V
Packing
carton
Product Description
Constant Wattage Heating Cable is divided into parallel type and series type, Parallel constant wattage heating cable is connected by multiple heating nodes in parallel across the entire length. It can be shared to use according to actual length, but at least reserve one heating node. Series type is suitable for the case where the circuit length exceeds the upper limit of the parallel constant wattage cable.

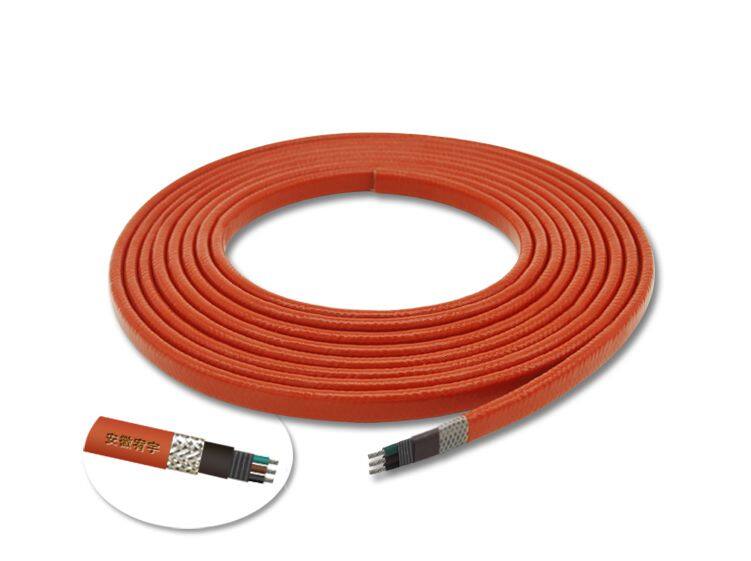

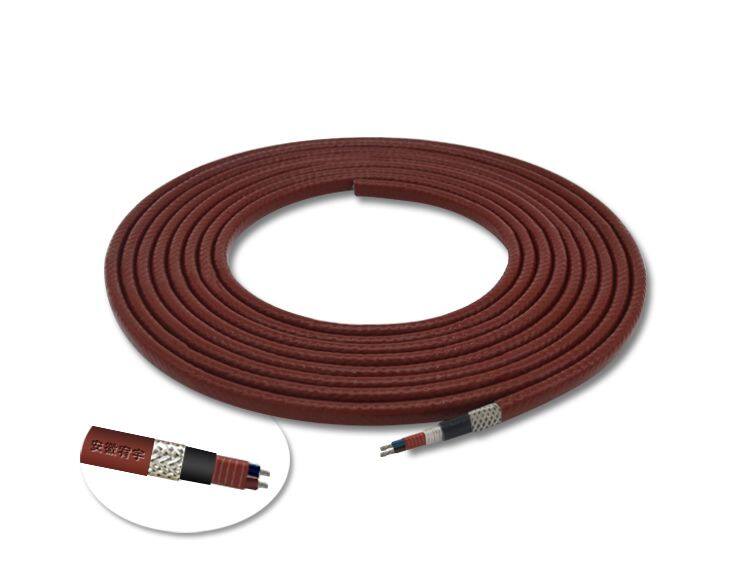

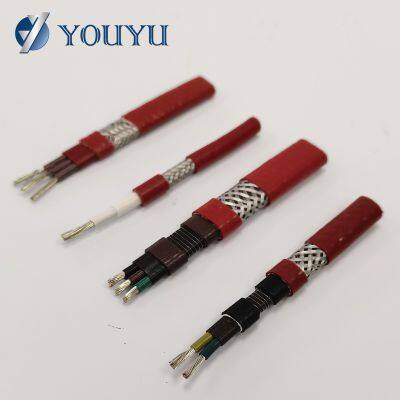

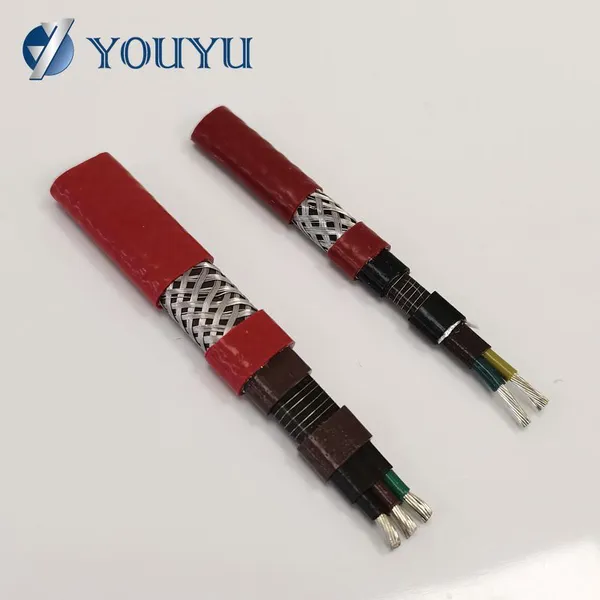

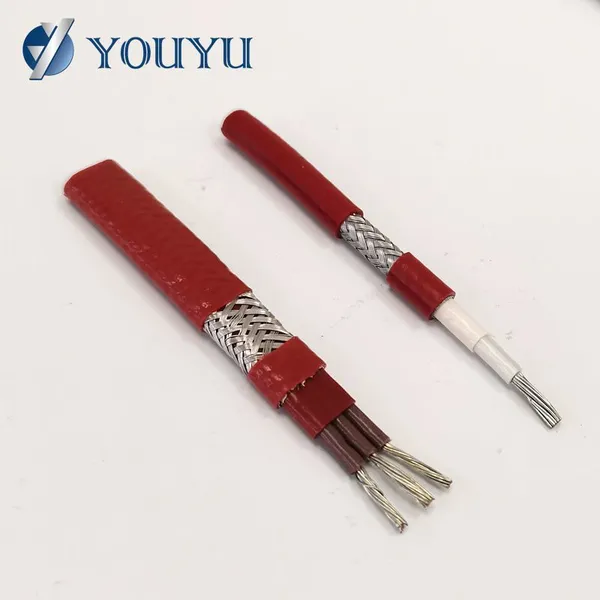

Two paralleled stranded copper wire as the bus wires with insulation layer FEP, then wrap the nickel-chromium alloy as the heating wire connect with bus wires at regular intervals, form the parallel resistance. Finally covered with insulation jacket FEP. When the bus wires power on, each parallel resistance begin to heat, thus form a continuous heating cable.
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220V) | ||||||||||
Two-core Parallel Type | Rated Voltage (V) | Rated Power (w/m) | Max Application Length(m) | Max Maintain Temperatue of Fluid (℃) | Max Tolerance Temperature(℃) | |||||
RDY2Q-J3-10 | 220 | 10 | 200 | 150 | 205 | |||||
RDY2Q-J3-20 | 220 | 20 | 120 | 140 | 205 | |||||
RDY2Q-J3-30 | 220 | 30 | 100 | 125 | 205 | |||||
RDY2Q-J3-40 | 220 | 40 | 100 | 100 | 205 | |||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (380V) | ||||||||||
Two-core Parallel Type | Rated Voltage (V) | Rated Power (w/m) | Max Application Length(m) | Max Maintain Temperatue of Fluid (℃) | Max Tolerance Temperature(℃) | |||||
RDY2Q-J3-20-380 | 380 | 20 | 300 | 130 | 205 | |||||
RDY2Q-J3-30-380 | 380 | 30 | 230 | 125 | 205 | |||||
RDY2Q-J3-40-380 | 380 | 40 | 185 | 100 | 205 | |||||
Technical Data Sheet of Three-core Parallel Type Constant Wattage Heating Cable (380V) | ||||||||||
Three-core Parallel Type | Rated Voltage (V) | Rated Power (w/m) | Max Application Length(m) | Max Maintain Temperatue of Fluid (℃) | Max Tolerance Temperature(℃) | |||||
RDY3Q-J3-20 | 380 | 20 | 390 | 150 | 205 | |||||
RDY3Q-J3-30 | 380 | 30 | 320 | 140 | 205 | |||||
RDY3Q-J3-40 | 380 | 40 | 300 | 130 | 205 | |||||
RDY3Q-J3-50 | 380 | 50 | 250 | 120 | 205 | |||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220/380V) | ||||||||||
Two-core Parallel Type | Rated Voltage (V) | Rated Power (w/m) | Max Application Length(m) | Max Maintain Temperatue of Fluid (℃) | Max Tolerance Temperature(℃) | |||||
RDY2Q-J4-40 | 220/380 | 40 | 120 | 200 | 260 | |||||
RDY2Q-J4-50 | 220/380 | 50 | 110 | 180 | 260 | |||||
RDY2Q-J4-60 | 220/380 | 60 | 100 | 160 | 260 | |||||

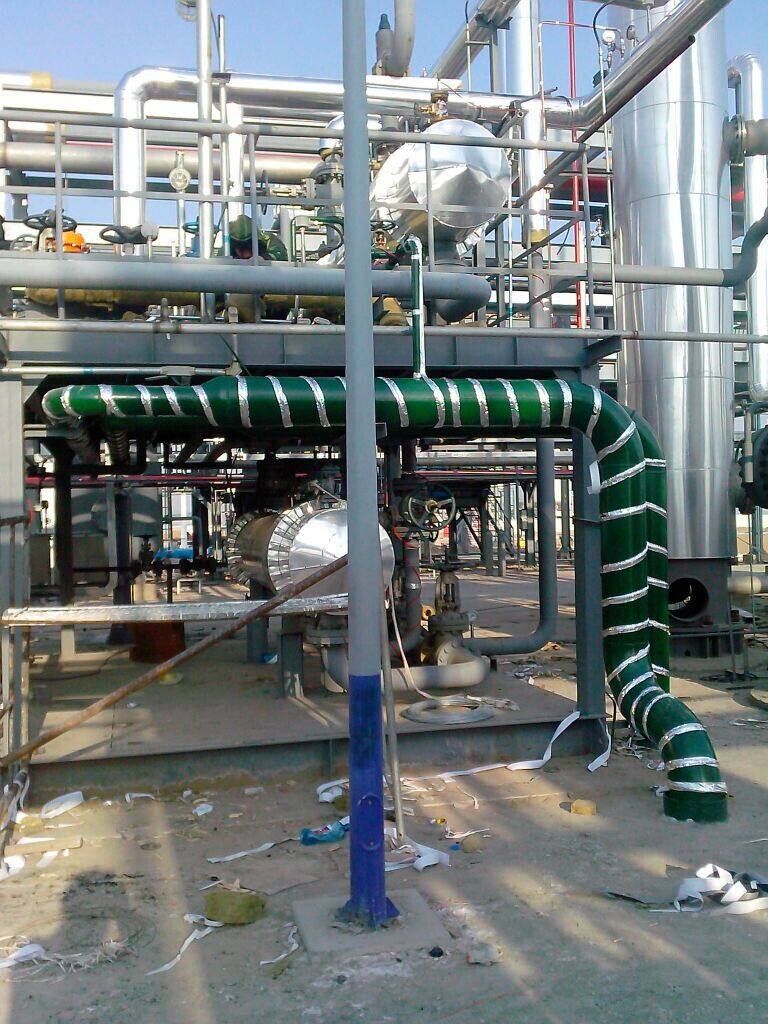

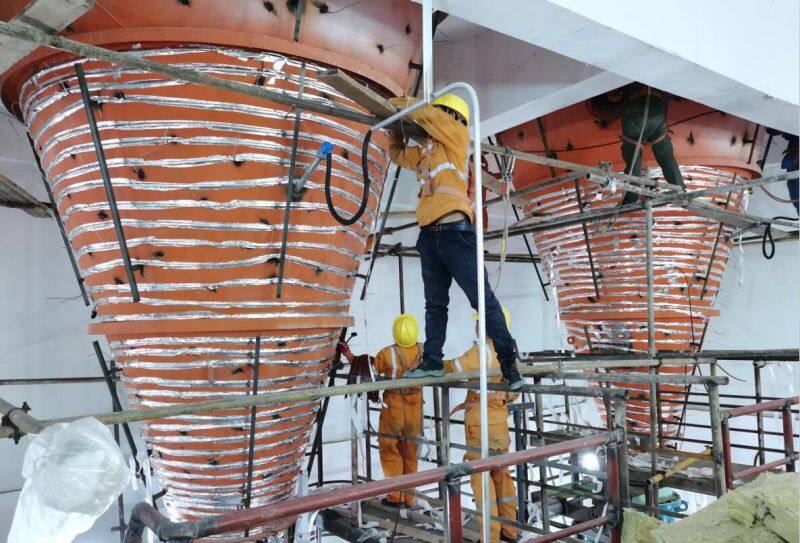

Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure. This type provide an economical alternative to self regulating heating cable but requires more skill for installation and more advanced control and monitor system. Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.
