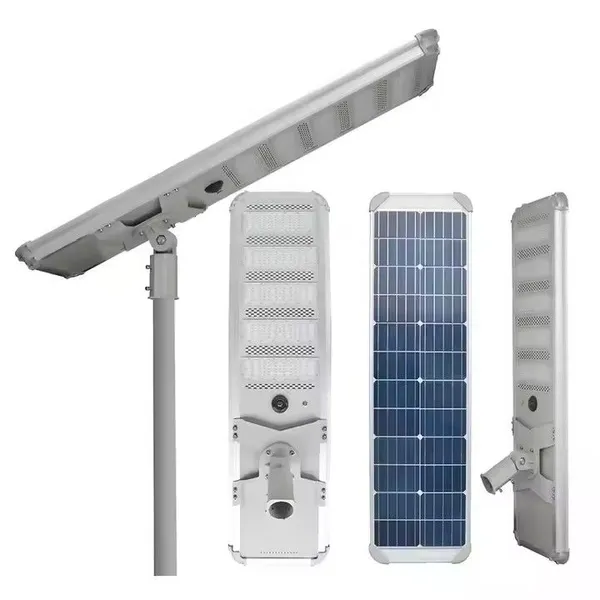

All In One Solar LED Street Light
All In One Solar LED Street Light 60W
■ Cell type：Mono 535mm × 670mm × 30mm
■ Efficiency：Photoelectric conversion rate>22%
■ Front cover：ADC12 High-Pressure Die-Cast aluminum
■ Coating：RAL Grey Color, Treated with Electrostatic Spraying.
■ Fixed Holder: Inner Dia78φ, 15-30 degree
■ Battery box: IP65 rated, 181*77*167mm
■ Frame: Modle B 30 mm,1.2mm anodized Aluminium alloy
■ Cable: 1 x 0.75/1.0/1.5 mm², 100-350 mm length or customized
■ Connectors: Male / Female Waterproof compatible
■ Dimension: 1075mm x 348mm x 159 mm
■ Weight:13.38 kg
■ Wind resistance >160km/h
■ Wind load: 2400 Pa or 244 kg/m²
■ Snow load：5400 Pa or 550 kg/m²
■ Packaging configuration：1 pc / carton
■ Loading capacity: 600 pcs / 40 HQ
■ Size / Pallet: 300 pcs / 20 FT
■ Packing Class: Calss 9,UN3481
■ Power:60W
■ System Voltage:DC24V
■ Luminous flux: 200lm
■ Solar panels: 120W/18V
■ LiFePO4 battery: 24Ah/12.8V
■ LED module: * Module by 50pcs chip
■ LED brand: Philips 5050
■ Charging time
■ Discharge time:12-13 hours/day+morning lighting mode 1hr, 3-4 days of cloudy and rainy days
■ Controller: MPPT.15A/20A 12/24V
■ Human body induction: Infrared or microwave sensors
■ Light source efficiency: 200Lm/W
■ IP66,IK08
■ Size:1075mm x 348mm x 159 mm
■ Color: Grey or specified RAL color card number
■ Color temperature: (2700K~6500K)±300K
■ Rendering Index: ≥70/80
■ Optical lens: T2 75° ~150 ° * UV resistant (other angles optional)
■ Operation temperature: -10℃~+55℃
■ Material: Aluminum die-casting shell+polyester paint, stainless steel screws, and polycarbonate lens
■ Service life: >100,000 hrs
■ Warranty: 5years
*NMOT: Normal Module Operating Temperature (Ambient temperature 20°C, air mass of AM1.5 and wind speed of 1 m/s
------------------------------------
All In One Solar LED Street Light 80W
■ Cell type: Mono 550mm × 220mm × 220mm
■ Efficiency：Photoelectric conversion rate>22%
■ Front cover：ADC12 High-Pressure Die-Cast aluminum
■ Coating：RAL Grey Color, Treated with Electrostatic Spraying.
■ Fixed Holder: Inner Dia78φ, 15-30 degree
■ Battery box: IP65 rated, 550*220*220mm
■ Frame: Modle B 30 mm,1.2mm anodized Aluminium alloy
■ Cable: 1 x 0.75/1.0/1.5 mm², 100-350 mm length or customized
■ Connectors: Male / Female Waterproof compatible
■ Dimension: 1075mm x 348mm x 159 mm
■ Weight:13.38 kg
■ Wind resistance >160km/h
■ Wind load: 2400 Pa or 244 kg/m²
■ Snow load：5400 Pa or 550 kg/m²
■ Packaging configuration：1 pc / carton
■ Loading capacity: 600 pcs / 40 HQ
■ Size / Pallet: 300 pcs / 20 FT
■ Packing Class: Calss 9,UN3481
■ Power: 80W
■ System Voltage:DC24V
■ Luminous flux: 200lm
■ Solar panels: 160W/18V
■ LiFePO4 battery: 46Ah/12.8V
■ LED module: * Module by 50pcs chip
■ LED brand: Philips 5050
■ Charging time
■ Discharge time:12-13 hours/day+morning lighting mode 1hr, 3-4 days of cloudy and rainy days
■ Controller: MPPT.15A/20A 12/24V
■ Human body induction: Infrared or microwave sensors
■ Light source efficiency: 200Lm/W
■ IP66,IK08
■ Size:1075mm x 348mm x 159 mm
■ Color: Grey or specified RAL color card number
■ Color temperature: (2700K~6500K)±300K
■ Rendering Index: ≥70/80
■ Optical lens: T2 75° ~150 ° * UV resistant (other angles optional)
■ Operation temperature: -10℃~+55℃
■ Material: Aluminum die-casting shell+polyester paint, stainless steel screws, and polycarbonate lens
■ Service life: >100,000 hrs
■ Warranty: 5years
*NMOT: Normal Module Operating Temperature (Ambient temperature 20°C, air mass of AM1.5 and wind speed of 1 m/s
------------------------------------
All In One Solar LED Street Light 100W
■ Cell type: Mono 1020mm × 510mm × 30mm
■ Efficiency：Photoelectric conversion rate>22%
■ Front cover：ADC12 High-Pressure Die-Cast aluminum
■ Coating：RAL Grey Color, Treated with Electrostatic Spraying.
■ Fixed Holder: Inner Dia78φ, 15-30 degree
■ Battery box:IP65 rated, 1020*510*300mm
■ Frame: Modle B 30 mm,1.2mm anodized Aluminium alloy
■ Cable: 1 x 0.75/1.0/1.5 mm², 100-350 mm length or customized
■ Connectors: Male / Female Waterproof compatible
■ Dimension: 1075mm x 348mm x 159 mm
■ Weight:15.50kg
■ Wind resistance >160km/h
■ Wind load: 2400 Pa or 244 kg/m²
■ Snow load：5400 Pa or 550 kg/m²
■ Packaging configuration：1 pc / carton
■ Loading capacity: 600 pcs / 40 HQ
■ Size / Pallet: 300 pcs / 20 FT
■ Packing Class: Calss 9,UN3481
■ Power: 100W
■ System Voltage:DC24V
■ Luminous flux: 200lm
■ Solar panels: 200W/18V
■ LiFePO4 battery: 54Ah/12.8V
■ LED module: * Module by 50pcs chip
■ LED brand: Philips 5050
■ Charging time
■ Discharge time:12-13 hours/day+morning lighting mode 1hr, 3-4 days of cloudy and rainy days
■ Controller: MPPT.15A/20A 12/24V
■ Human body induction: Infrared or microwave sensors
■ Light source efficiency: 200Lm/W
■ IP66,IK08
■ Size:1075mm x 348mm x 159 mm
■ Color: Grey or specified RAL color card number
■ Color temperature: (2700K~6500K)±300K
■ Rendering Index: ≥70/80
■ Optical lens: T2 75° ~150 ° * UV resistant (other angles optional)
■ Operation temperature: -10℃~+55℃
■ Material: Aluminum die-casting shell+polyester paint, stainless steel screws, and polycarbonate lens
■ Service life: >100,000 hrs
■ Warranty: 5years
*NMOT: Normal Module Operating Temperature (Ambient temperature 20°C, air mass of AM1.5 and wind speed of 1 m/s
------------------------------------
All In One Solar LED Street Light 120W
■ Cell type: Mono 1020mm × 610mm × 40mm
■ Efficiency：Photoelectric conversion rate>22%
■ Front cover：ADC12 High-Pressure Die-Cast aluminum
■ Coating：RAL Grey Color, Treated with Electrostatic Spraying.
■ Fixed Holder: Inner Dia78φ, 15-30 degree
■ Battery box:IP65 rated, 1020*610*40mm
■ Frame: Modle B 30 mm,1.2mm anodized Aluminium alloy
■ Cable: 1 x 0.75/1.0/1.5 mm², 100-350 mm length or customized
■ Connectors: Male / Female Waterproof compatible
■ Dimension: 1531mm x 401.2mm x 759 mm
■ Weight: 21kg
■ Wind resistance >160km/h
■ Wind load: 2400 Pa or 244 kg/m²
■ Snow load：5400 Pa or 550 kg/m²
■ Packaging configuration：1 pc / carton
■ Loading capacity: 500 pcs / 40 HQ
■ Size / Pallet: 200 pcs / 20 FT
■ Packing Class: Calss 9,UN3481
■ Power: 120W
■ System Voltage:DC24V
■ Luminous flux: 200lm/w
■ Solar panels: 200W/18V
■ LiFePO4 battery: 60Ah/12.8V
■ LED module: * Module by 50pcs chip
■ LED brand: Philips 5050
■ Charging time
■ Discharge time:12-13 hours/day+morning lighting mode 1hr, 3-4 days of cloudy and rainy days
■ Controller: MPPT.15A/20A 12/24V
■ Human body induction: Infrared or microwave sensors
■ Light source efficiency: 200Lm/W
■ IP66,IK08
■ Size: 1531mm x 401.2mm x 159mm
■ Color: Grey or specified RAL color card number
■ Color temperature: (2700K~6500K)±300K
■ Rendering Index: ≥70/80
■ Optical lens: T2 75° ~150 ° * UV resistant (other angles optional)
■ Operation temperature: -10℃~+55℃
■ Material: Aluminum die-casting shell+polyester paint, stainless steel screws, and polycarbonate lens
■ Service life: >100,000 hrs
■ Warranty: 5years
*NMOT: Normal Module Operating Temperature (Ambient temperature 20°C, air mass of AM1.5 and wind speed of 1 m/s
