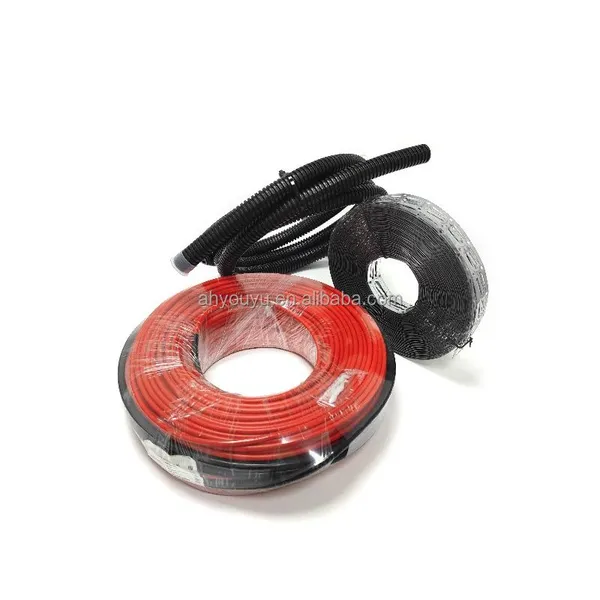

Pipe Antifreeze Heat Trace Cable Constant Wattage Heated Cable photo-2

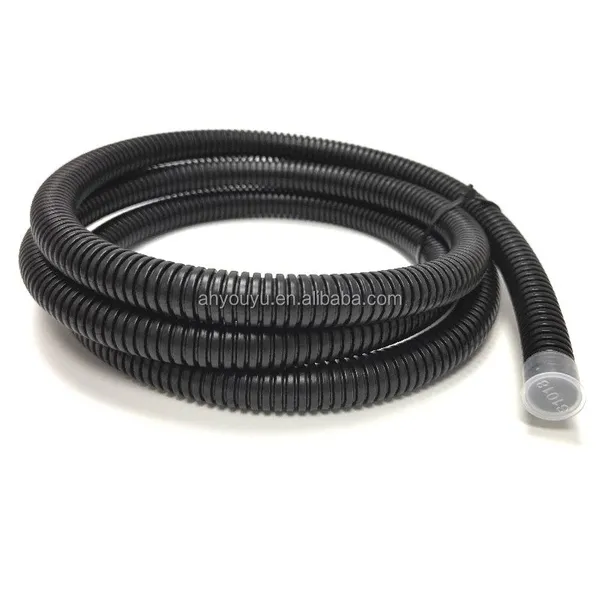

Pipe Antifreeze Heat Trace Cable Constant Wattage Heated Cable photo-3

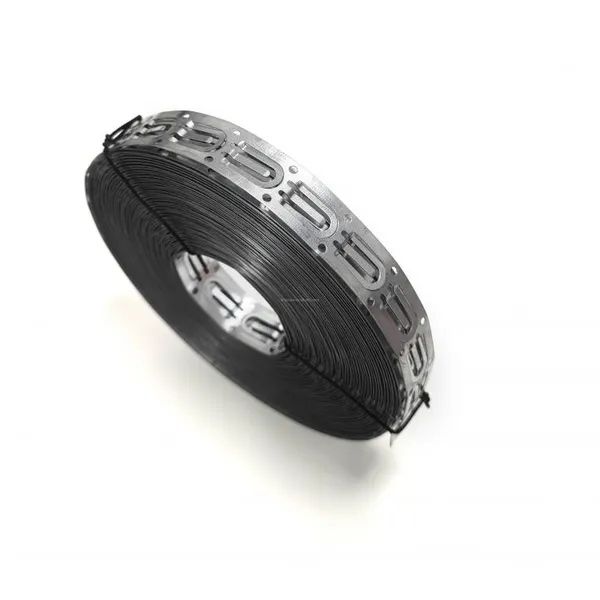

Pipe Antifreeze Heat Trace Cable Constant Wattage Heated Cable photo-4

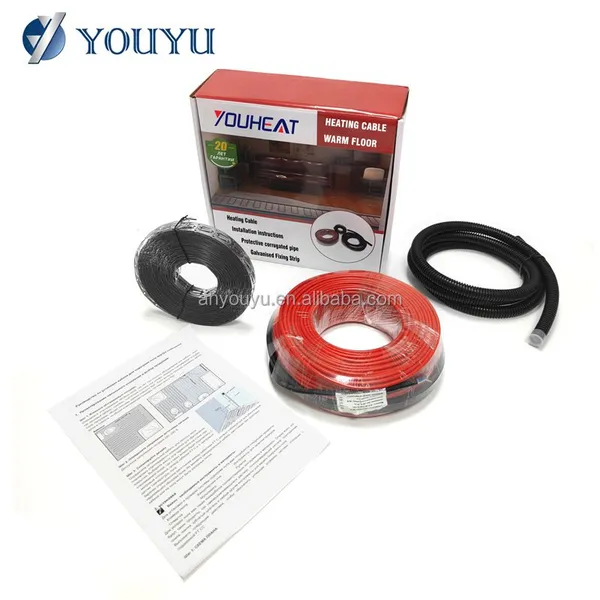

Pipe Antifreeze Heat Trace Cable Constant Wattage Heated Cable photo-5
US$ 5.62 ≥100 Meters
Key Specifications
Get Latest Price
Insulation Material:
FEP
Conductor Material:
Copper
Jacket:
PFA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Conductor Material Copper
Jacket PFA
Number of Conductors 1
Model Number customized
Brand Name youyu
Place of Origin Anhui, China
SUMMARY

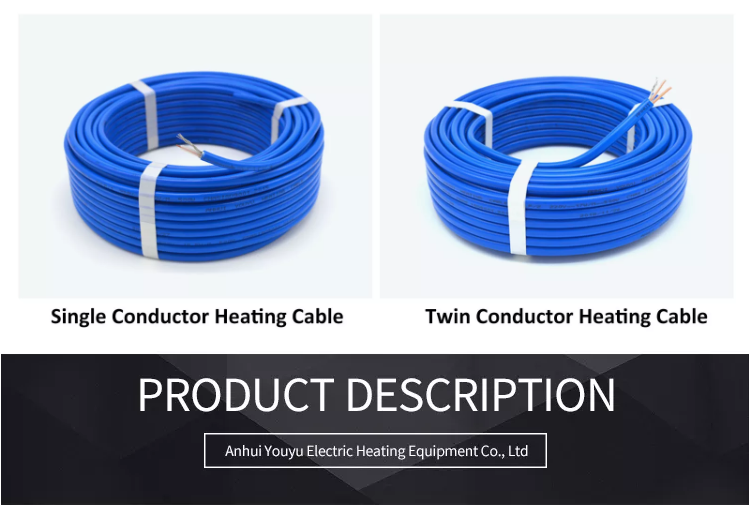

Heating cable using alloy resistance wire for electric heating to achieve heating effect.The heating cable is divided into single conductor heating cable and twin conductor heating cable

ADVANTAGES

1.Comfortable,healthy clean long life and no maintenance
2.Spacious simple warm damp proof and mildew proof
3.Safety efficiency environmental protection energy saving and low cost
There is no leakage and short circuit in heating by heating cable and there is no danger
The temperature of each room can be shut down and adjusted separately
Data Sheet of 13W/M Underfloor Heating Cable
Catalog Number
Rated Voltage
W/M
Length(M)
Output Power
(W)
Heating Area
(Square Meter)
FTC-150-13-2
 110/220
13
11.5
150
1SQM
FTC-225-13-2
 110/220
13
17.3
225
1.5SQM
FTC-300-13-2
 110/220
13
23.1
300
2SQM
FTC-375-13-2
 110/220
13
28.8
375
2.5SQM
FTC-450-13-2
 110/220
13
34.6
450
3SQM
FTC-525-13-2
 110/220
13
40.4
525
3.5SQM
FTC-600-13-2
 110/220
13
46.2
600
4SQM
FTC-675-13-2
 110/220
13
51.9
675
4.5SQM
FTC-750-13-2
 110/220
13
57.7
750
5SQM
FTC-900-13-2
 110/220
13
69.2
900
6SQM
FTC-1050-13-2
220
13
80.8
1050
7SQM
FTC-1200-13-2
220
13
92.3
1200
8SQM
FTC-1350-13-2
220
13
103.8
1350
9SQM
FTC-1500-13-2
220
13
115.4
1500
10SQM
FTC-1650-13-2
220
13
126.9
1650
11SQM
FTC-1800-13-2
220
13
138.5
1800
12SQM

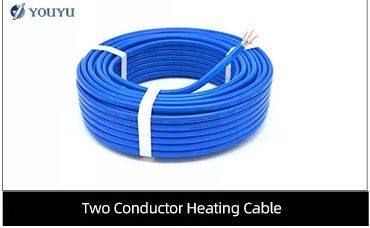

Data Sheet of 17W/M Double Conductor Heating Cable
Catalog Number
Rated Voltage
W/M
Length(M)
Output Power(W)
FTC-300-17-2
110/220
17
17
300
FTC-400-17-2
110/220
17
23
400
FTC-500-17-2
110/220
17
29
500
FTC-600-17-2
110/220
17
35
600
FTC-700-17-2
110/220
17
41
700
FTC-850-17-2
110/220
17
50
850
FTC-1000-17-2
110/220
17
58
1000
FTC-1200-17-2
220
17
70
1200
FTC-1400-17-2
220
17
82
1400
FTC-1600-17-2
220
17
94
1600
FTC-1800-17-2
220
17
105
1800
FTC-2000-17-2
220
17
117
2000
FTC-2200-17-2
220
17
129
2200
FTC-2400-17-2
220
17
141
2400
FTC-2600-17-2
220
17
153
2600
FTC-2800-17-2
220
17
164
2800
FTC-3000-17-2
220
17
176
3000
FTC-3300-17-2
220
17
194
3300
Data Sheet of 30W/M Double Conductor Heating Cable
Catalog Number
Rated Voltage
W/M
Length(M)
Output Power(W)
FTC-300-30-2
230
30
10
300
FTC-450-30-2
230
30
15
450
FTC-600-30-2
230
30
20
600
FTC-750-30-2
230
30
25
750
FTC-900-30-2
230
30
30
900
FTC-1050-30-2
230
30
35
1050
FTC-1200-30-2
230
30
40
1200
FTC-1350-30-2
230
30
45
1350
FTC-1500-30-2
230
30
50
1500
FTC-1800-30-2
230
30
60
1800
FTC-2100-30-2
230
30
70
2100
FTC-2400-30-2
230
30
80
2400
FTC-2700-30-2
230
30
90
2700
FTC-3000-30-2
230
30
100
3000
FTC-3300-30-2
230
30
110
3300
FTC-3600-30-2
230
30
120
3600
FTC-3900-30-2
230
30
130
3900
FTC-4200-30-2
230
30
140
4200
1. Are you manufacturer or trading company?

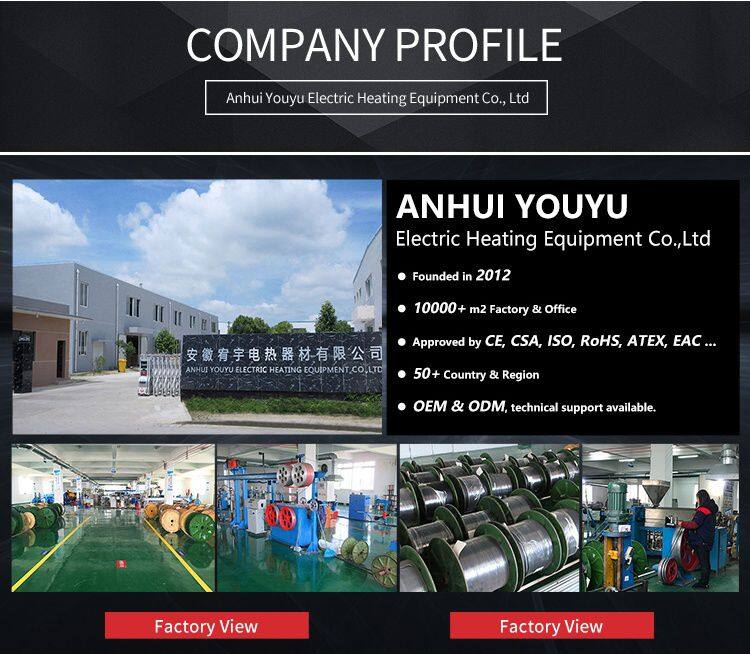

We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance.
6. What is warranty of your product?
25 years free warranty for underfloor heating cable & mat
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products, and can also put your logo on the heating mat.
8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.
9.Do you offer or supply room thermostat compatible to your electric underfloor heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for your choice.
10.Which floor decoration materials are suitable for installing the underfloor heating system?
Tile, marble, wood floor, laminate, vinyl board, concrete and other floor decoration materials.
11.Does each room require its own thermostat?
We recommend that each room be equipped with a thermostat to control the temperature independently,
which will save energy and make temperature control simpler and more accurate.
