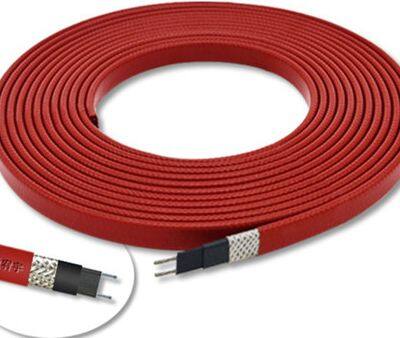

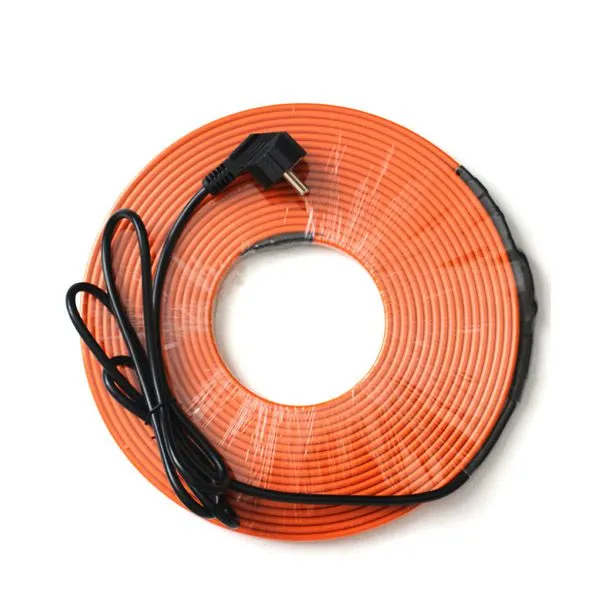

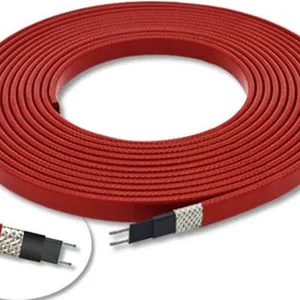

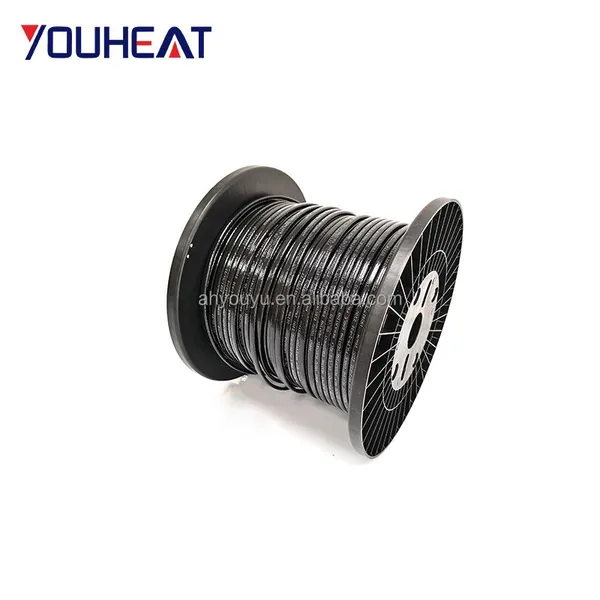

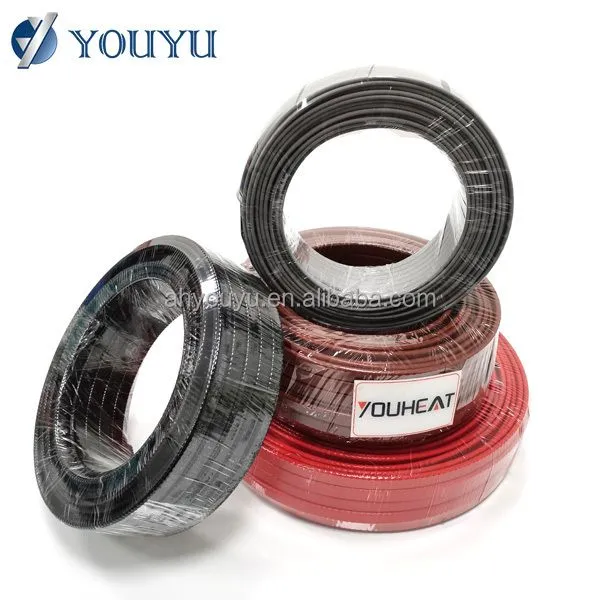

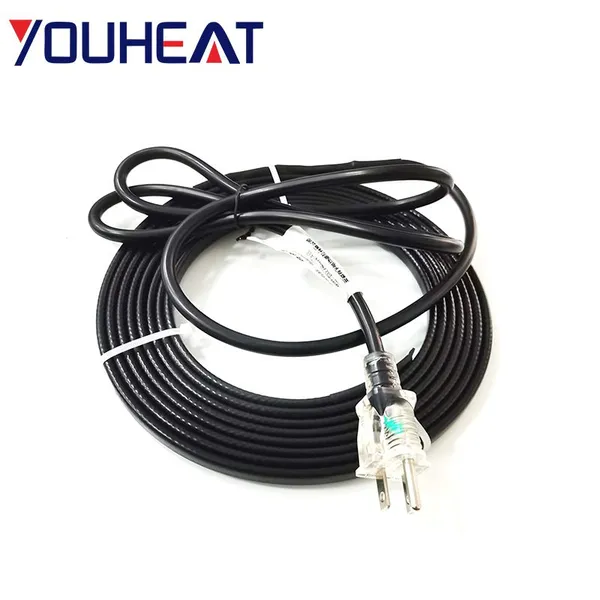

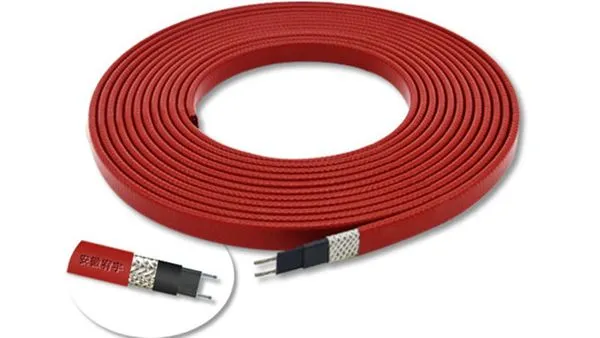

Self Regulating Temperature Deicing Heating Trace Cable Freeze Protected Water Pipe Heating Cable With Plug
US$ 1 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Insulation Material:
FEP
Conductor Material:
Copper
Jacket:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Grade Self-Regulating Heat Cable Ice Dam and Pipe Freeze Protection Heating Cable With Power Cord PlugUS$ 1 - 5MOQ: 10 Meters -
Water Pipe Heat Tape Self-Regulating Heating Cable With Power Indicator Plug Built-in ThermostatUS$ 1 - 5MOQ: 10 Meters
-
Pipe Freeze Protection Self Regulating Heating Cable Self-regulating Heating Cable for Pipe Freeze Protection With PlugUS$ 5.47MOQ: 100 Meters
-
Heat Trace Cable for Pipes Concrete Tinned Copper Self Regulating Underfloor Heating Cable Copper Conductor ConstructionUS$ 1 - 5MOQ: 10 Meters
-
High Preference 220v Underfloor Heat Tarce Cable Defrost Underfloor Heating Cable Self Regulating for Pipe Heating CableUS$ 1 - 5MOQ: 10 Meters
Conductor Material
Copper
Jacket
PVC
Number of Conductors
1
Brand Name
youyu
Place of Origin
Anhui, China
Length
1 m
Product name
Floor Heating Cables
SUMMARY
Self-regulatingheatingcablecanadjustitsoutputpoweraccordingtoambienttem perature. As temperature increasesthe resistance increases
which lower the output wattage.Conversely,as thetemperature decreasesthe resistance decreas es and the cable produces more heat.It
will never overheat or burnout even when overlapped.The cable can also be cut to any length(up to max circuit length)
Self-regulatingheatingcablecanadjustitsoutputpoweraccordingtoambienttem perature. As temperature increasesthe resistance increases
which lower the output wattage.Conversely,as thetemperature decreasesthe resistance decreas es and the cable produces more heat.It
will never overheat or burnout even when overlapped.The cable can also be cut to any length(up to max circuit length)
OURADVANTAGES
1.Energyefficient&Safety Assure
2. Easyto installcan be cut to anylength(up to maxcircuitlength)
3.No overheat or burnout.
4. Suitable for non-hazardous,hazardous and corrosive environments.
5.Provide Complete accessories.
1.Energyefficient&Safety Assure
2. Easyto installcan be cut to anylength(up to maxcircuitlength)
3.No overheat or burnout.
4. Suitable for non-hazardous,hazardous and corrosive environments.
5.Provide Complete accessories.
Type | Power (W/M, at 10℃) | Maximum Tolerance Temperature | Maximum Maintain Temperature | Minimum Installation Temperature | Maximum Usage Length (based on 110/220V) |
Low Temperature | 10W/M 15W/M 25W/M 35W/M | 105℃ | 65℃±5℃ | -40℃ | 50/100m |
Medium Temperature | 35W/M 45W/M 50W/M 60W/M | 135℃ | 105℃±5℃ | -40℃ | 50/100m |
High Temperature | 35W/M 50W/M 60W/M | 205℃ | 120℃±5℃ | -30℃ | 50/100m |
1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs
And the MOQ for customized product is 10pcs
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance.
6. What is warranty of your product?
25 years free warranty for underfloor heating cable & mat
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with
standard and customized products, and can also put your logo on the heating mat.
standard and customized products, and can also put your logo on the heating mat.
8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.
9.Do you offer or supply room thermostat compatible to your electric underfloor heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for your choice.
10.Which floor decoration materials are suitable for installing the underfloor heating system?
Tile, marble, wood floor, laminate, vinyl board, concrete and other floor decoration materials.
11.Does each room require its own thermostat?
We recommend that each room be equipped with a thermostat to control the temperature independently,
which will save energy and make temperature control simpler and more accurate.
which will save energy and make temperature control simpler and more accurate.
