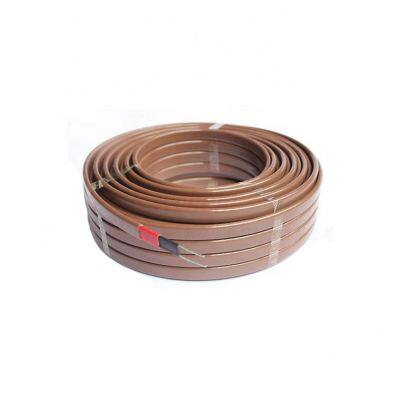

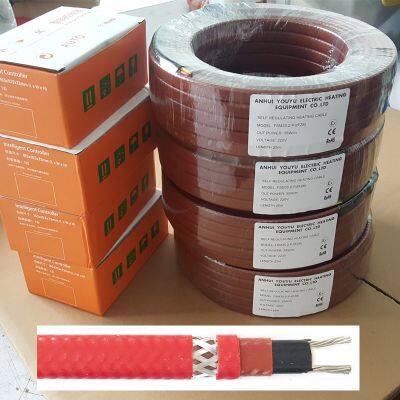

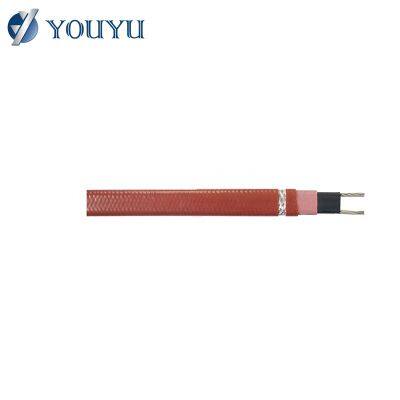

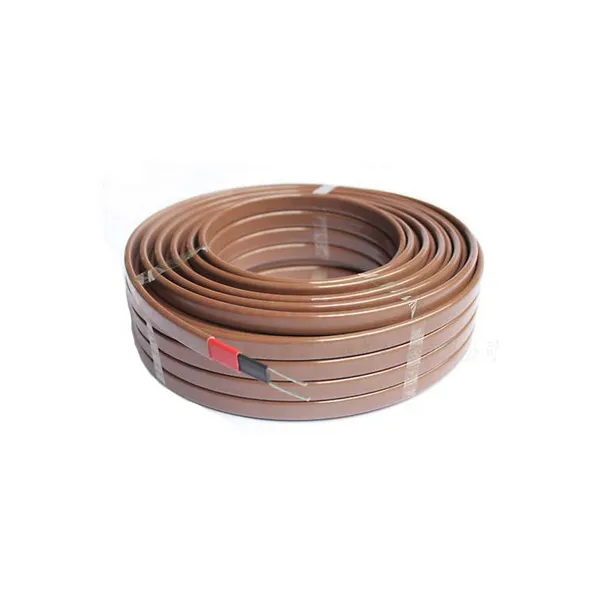

Self-Regulating Heating Cable Outdoor Frost Protection Selflimited Heating Trace Cable
US$ 3.51
≥100 Meters
Key Specifications
Get Latest Price
Insulation Material:
PE,FEP
Conductor Material:
Copper
Jacket:
PE,FEP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Cheap Soil Warming Heating CableUS$ 2.11MOQ: 100 Meters -
Driveway Heating Systems Heating Cable With Thermostat Fire Protection Self Regulating Heating CableUS$ 3.51MOQ: 100 Meters
-
Self Regulation Heating Cable 220v 15wm Refrigerator Defrost Heating Cable Exterior Driveway Heating CableUS$ 3.51MOQ: 100 Meters
-
Blue Heat Trace Cable Electric Concrete Subfloor Self Regulating Underfloor Heating Cable Drain Heater CableUS$ 3.51MOQ: 100 Meters
-
Heating Cables for Propagating Heating Cables for Propagating Heating Electric Cable Wire Floor WarmUS$ 2.67MOQ: 200 Meters
Conductor Material
Copper
Jacket
PE,FEP
Number of Conductors
Customers' Demand
Model Number
Customized
Brand Name
Youyu
Place of Origin
Anhui, China
Conductor
copper
Insulation
polyolefin
Outer jacket
polyolefin
Voltage
110V-380V
Power
25W/m-60W/m
Shielding
Aluminum magnesium weaving
Product Description
Summary

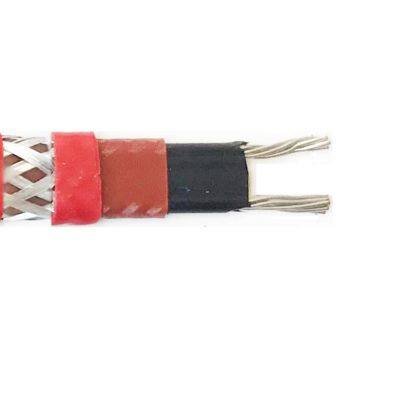

Self-regulating heating cable is constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer, The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient “PTC”. It has the characteristics of automatically regulating the temperature and output power when heat; It can be sheared to use and overlapped by itself without the problems of overheat and burnout.
Working Principle
In each self regulating heating cable, circuits between the bus wires change with the ambient temperature. As temperature decreases, the resistance decreases which produces more output wattage; Conversely, as temperature increases, resistance increases which lower the output wattage, loop back and forth.
Features
1. Energy efficient automatically varies its power output in response to pipe temperature changes.
2. Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable.
3. No overheat or burnout. Suitable for use in non-hazardous, hazardous and corrosive environments.
Applications
1. Processing of agricultural and sideline products and other applications, such as fermentation, incubation, breeding.
2. It applies to as all kinds of complicated environment such as ordinary, danger, corrosion, and explosion-proof areas.
3. Frost protection, ice-melting, snow-melting and anti-condensation.
Type |
Power
(W/M, at 10℃)
|
Maximum Tolerance Temperature |
Maximum Maintain Temperature |
Minimum
Installation Temperature
|
Maximum Usage Length
(based on 110/220V)
|
Low Temperature
|
10W/M
15W/M
25W/M
35W/M |
105℃
|
65℃±5℃
|
-40℃
|
50/100m
|
Medium Temperature
|
35W/M
45W/M
50W/M
60W/M
|
135℃
|
105℃±5℃
|
-40℃
|
50/100m
|
High Temperature
|
35W/M
50W/M
60W/M
|
205℃
|
120℃±5℃
|
-30℃
|
50/100m
|
Company Information
Anhui Youyu Electric Heating Equipment Co., Ltd was founded in 2012, located in High-tech Industrial Development Zone, Wuhu city, Anhui province, China. It is an energy saving, high and new technology enterprise which integrates professional research, manufacture, sale, engineer, design and construction and has independent intellectual property.
In a few years, company has obtained EAC, CE, ROHS, ATEX, ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health management certificate and many other industry quality and explosion proof certificates. Taking client on top priority, we set up strict quality control system and considerate after-sale service. We warmly welcome partners from home and abroad to establish long-term business relations.
Certificates
CSA, EAC, CE, ROHS, ATEX, ISO9001, ISO14001, OHSAS18001
Customers
FAQ
1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 1000m.
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance. Parts of samples are free of charge. Delivery cost is on buyer's account.
6. What is warranty of your product?
2 years free warranty for self-regulating heating cable. Its design service life is 15 years.
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products, and can also put your logo on the heating cable.
8: If your heating cable eco-friendly?
Our heating cable is all in accordance with ROHS, you can buy and use freely.
9: Can I cut the heating cable anywhere?
You can freely cut and use within the maximum use length of a single power supply according to your needs.
10: Does the heating cable can be used on industrial area and hazardous area?
Yes, we have self regulating heating cable which is applicable to the industrial area and hazardous area. We have ATEX, CE certificates.
