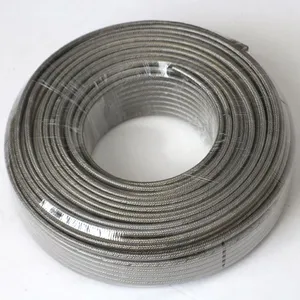

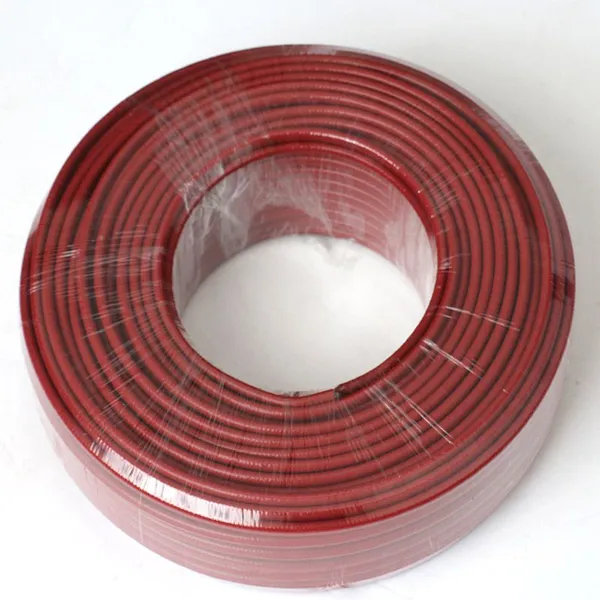

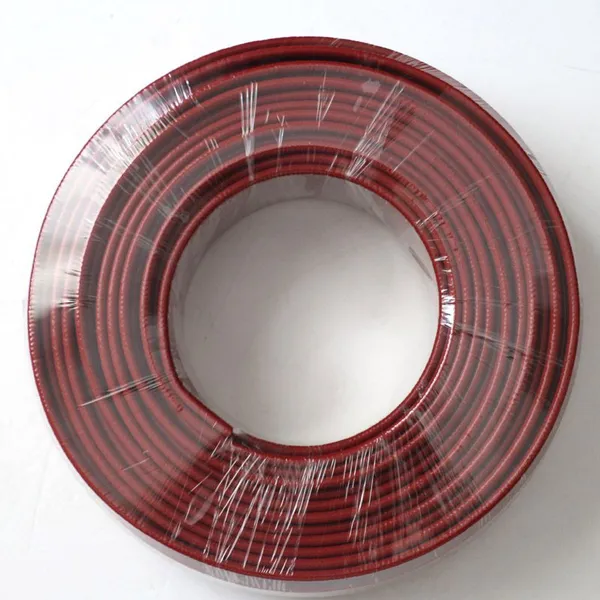

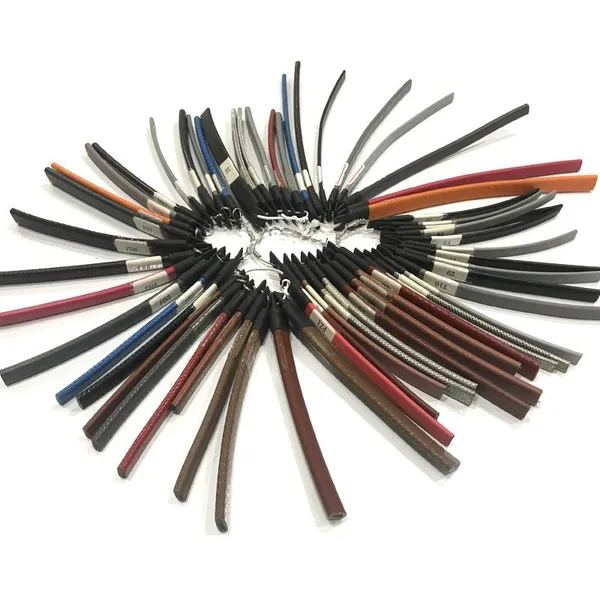

Help CenterHeat Energy Saving Electric Self Regulating Heating Cable 230V Defrost Heating Cable
Related Products
-
Outdoor Solar Energy Pipe Temperature Trace Self Regulating Heating CableUS$ 3.51MOQ: 100 Meters -
Professional Self-regulating Heating Cable 16w/m 24w/mUS$ 3.51MOQ: 100 Meters
-
High Standard Solar Energy Electric Heaters Heat Tracing CableUS$ 6.24MOQ: 50 Meters
-
Factory OEM Self-regulating Heat Trace Cable With Fluorine Material InsulationUS$ 3.51MOQ: 100 Meters
-
The Multifunctional Tech Heat Tape Flat Wire Underground Heating CableUS$ 3.51MOQ: 100 Meters
Summary
Self-regulating heating cable is constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer, The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient “PTC”. It has the characteristics of automatically regulating the temperature and output power when heat; It can be sheared to use and overlapped by itself without the problems of overheat and burnout.
Working Principle
In each self regulating heating cable, circuits between the bus wires change with the ambient temperature. As temperature decreases, the resistance decreases which produces more output wattage; Conversely, as temperature increases, resistance increases which lower the output wattage, loop back and forth.
Features
1. Energy efficient automatically varies its power output in response to pipe temperature changes.
2. Easy to install, can be cut to any length (up to max circuit length) required on site with no wasted cable.
3. No overheat or burnout. Suitable for use in non-hazardous, hazardous and corrosive environments.
Applications
1. Processing of agricultural and sideline products and other applications, such as fermentation, incubation, breeding.
2. It applies to as all kinds of complicated environment such as ordinary, danger, corrosion, and explosion-proof areas.
3. Frost protection, ice-melting, snow-melting and anti-condensation.
Type |
Power
(W/M, at 10℃)
|
Maximum Tolerance Temperature |
Maximum Maintain Temperature |
Minimum
Installation Temperature
|
Maximum Usage Length
(based on 110/220V)
|
Low Temperature
|
10W/M
15W/M
25W/M
35W/M |
105℃
|
65℃±5℃
|
-40℃
|
50/100m
|
Medium Temperature
|
35W/M
45W/M
50W/M
60W/M
|
135℃
|
105℃±5℃
|
-40℃
|
50/100m
|
High Temperature
|
35W/M
50W/M
60W/M
|
205℃
|
120℃±5℃
|
-30℃
|
50/100m
|
