Most Popular Warm Electric Underfloor Heating Cable Mat Floor Heating System
| Voltage | 220V |
| Power | 150w/m2 |
| Heating Conductor | Alloy Wire |
| Insulation | FEP |
| Shield | Aluminum foil + Copper wire |
| Outer Sheath | PVC |
| Max. Surface Temperature | 70℃ |
| Max. Withstand Temperature | 120℃ |

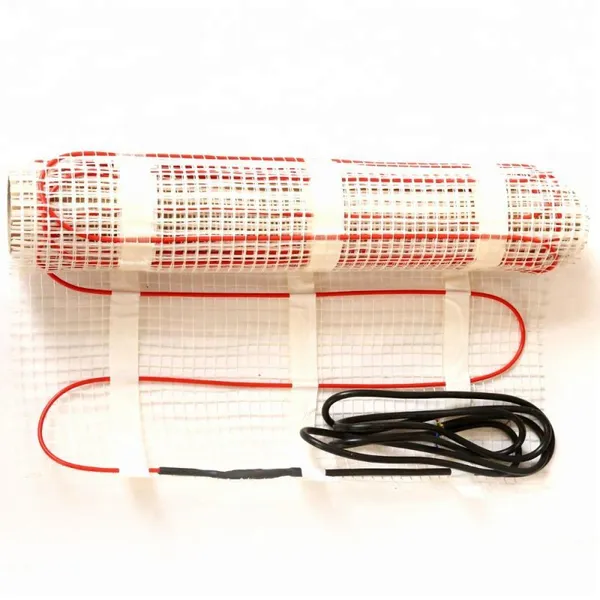

Indoor Underfloor Heating Mat
Heating mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor bathroom floor electric warm feet mat and twin conductor bathroom floor electric warm feet mat.
|
Structure |
Single conductor heating mat |
Twin conductor heating mat |
|
Glass net |
10*10mm 300 g/square meter Back double-sided tape |
10*10mm 300 g/square meter Back double-sided tape |
|
Thickness |
4-4.5mm |
3-5.5mm |
|
Power output |
100w/square meter,150 w/square meter |
150 w/square meter |
|
Rated voltage |
220v(Customized) |
220v(Customized ) |
|
Length |
2*2m |
1*2m |
|
Cable construction |
single conductor |
twin conductor |
|
Outside diameter |
2.5mm |
3mm |
|
Insulation |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Conductor |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Shield |
Aluminum foil + copper wire |
Aluminum foil + copper wire |
|
Max. Ambient Temp |
120 ℃ |
120 ℃ |
| 1. How much electricity is consumed per hour? |
| Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 . |
| In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2. |
| When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price. |
| 2. Do I use insulation materials? |
| We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced. |
| 3. Is it safe to use in a humid place? |
| Yes, our products are of high quality and have a grounding wire. |
| 4. How long is the warranty time? |
| 25 years for heating cable & heating mat. |
| 2 years for for constant wattage/self-regulating heating cable and thermostats. |
| 5. Can I crop it? |
| Yes, you can crop the grid |
| 6. What is the thickness of the cable? |
| The cable is 3.5mm thick. |
