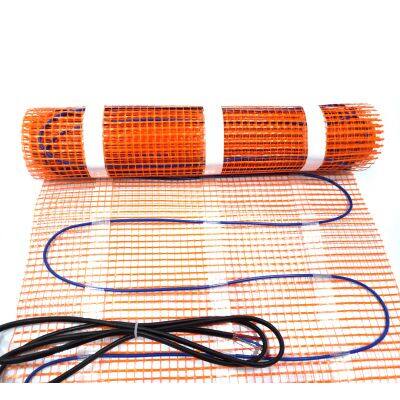

Brand new tape 220v 100w mat under the ground outdoor electric sidewalk heating for wholesales
Product Model
Product Application
Heating mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo It is installed with tile adhesive and has almost no effect on the ground elevation. Heating matcan also be laid directly on the original ground without the need for other treatment of the original ground. In addition,the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fastheating system is the best choice for home makers like bathrooms. Heating mat used for overall heating, comfortable heating, wall heating,Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor in-slab snow melting heating mat and twin conductor in-slab snow melting heating mat.
1. Ground heating system for public buildings and residential buildings;
2. Bathroom floor warming system;
3. Concrete floor, wooden floor or tile floor heating;
4. Driveway snow melting or ice antifreeze system.
Technical Parameter
|
Structure |
Single conductor heating mat |
Twin conductor heating mat |
|
Glass net |
10*10mm 300 g/square meter Back double-sided tape |
10*10mm 300 g/square meter Back double-sided tape |
|
Thickness |
4-4.5mm |
3-5.5mm |
|
Power output |
100w/square meter,150 w/square meter |
150 w/square meter |
|
Rated voltage |
220v(Customized) |
220v(Customized ) |
|
Length |
2*2m |
1*2m |
|
Cable construction |
single conductor |
twin conductor |
|
Outside diameter |
2.5mm |
3mm |
|
Insulation |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Conductor |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Shield |
Aluminum foil + copper wire |
Aluminum foil + copper wire |
|
Max. Ambient Temp |
120 ℃ |
120 ℃ |
Installation
1. Laying the insulation broad on the ground; keep the ground dry before install;
2. A special reflective film is placed on the insulating material to reflect heat;
3. Put on the heating mat, and there is adhesive on the back of the heating mat net, which can be attached to the ground material. The whole installation process is much easier and faster.The floor mat is only 3-5mm thick, and has little influence on the height of the floor. The position such as closestool or platform basin can avoid;
4. Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the construction can be carried out with professional tools;
5. Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.
Warning
Product Advantages
2 . The material is safe , pollution-free and has a long shelf life ;
3 . No professional installation is required . The self-adhesive desian makes the installation quick and easy ;
4 . Heat fast and the temperature is uniform
5 . Can be laid directly in the onginal ground without any clean of it
| 1. How much electricity is consumed per hour? |
| Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 . |
| In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2. |
| When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price. |
| 2. Do I use insulation materials? |
| We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced. |
| 3. Is it safe to use in a humid place? |
| Yes, our products are of high quality and have a grounding wire. |
| 4. How long is the warranty time? |
| 25 years for heating cable & heating mat. |
| 2 years for for constant wattage/self-regulating heating cable and thermostats. |
| 5. Can I crop it? |
| Yes, you can crop the grid. |
| 6. What is the thickness of the cable? |
| The cable is 3.5mm thick. |
