Help CenterDT4 Seamless Pure Iron Tubing for High-Performance Electrical Equipment Applications
Related Products
-
Industrial Grade Seamless Pure Iron Tube With Excellent Magnetic Permeability & Corrosion ResistanceNegotiableMOQ: 1 Ton -
High-Purity DT4 Electrical Pure Iron Seamless Tube for Precision Instrument ComponentsNegotiableMOQ: 1 Ton
-
Industrial Pure Iron Seamless Tube With Superior Magnetic Properties for Sensor ComponentsNegotiableMOQ: 1 Ton
-
Electrical Pure Iron Tube Precision Drawn Seamless Pure Iron Tube for Vacuum Chambers & Scientific InstrumentsNegotiableMOQ: 1 Ton
-
Pure Iron Precision Drawn Tube Vacuum-Degassed DT4 Electrical Pure Iron Seamless Tube for Critical Electronic ApplicationsNegotiableMOQ: 1 Ton

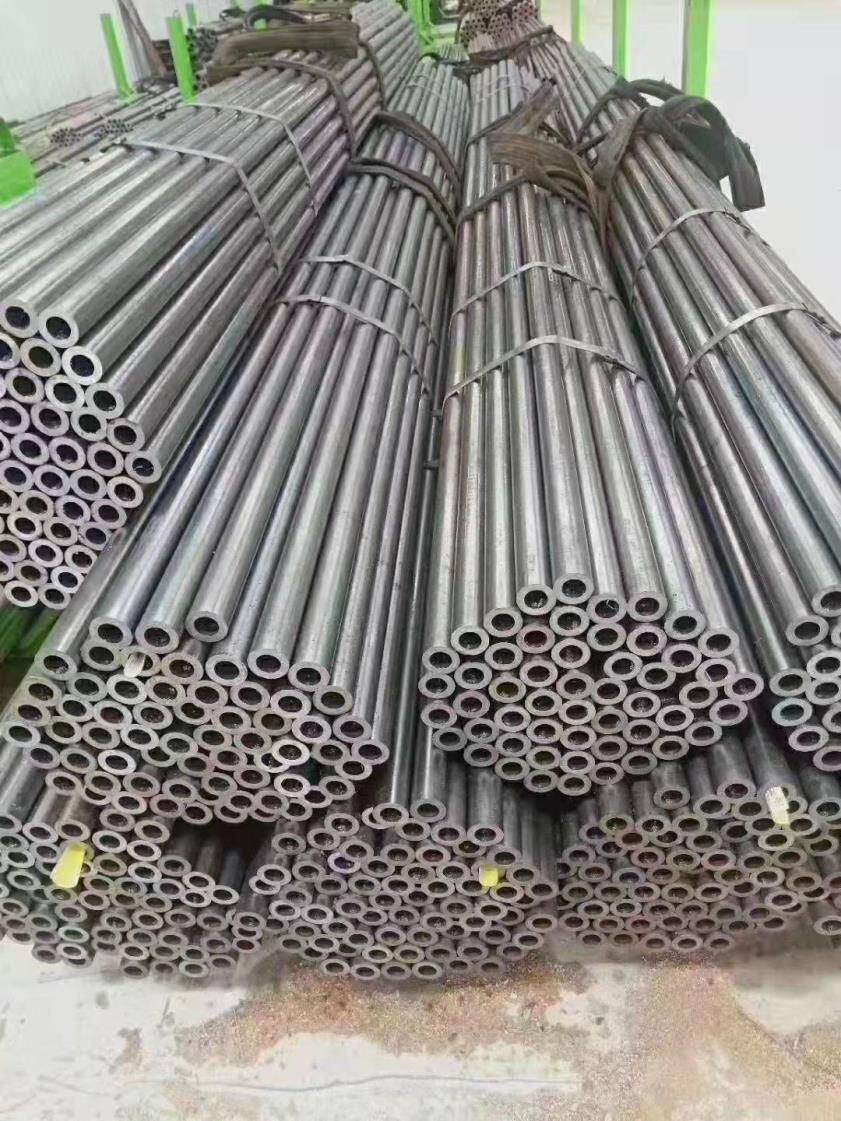

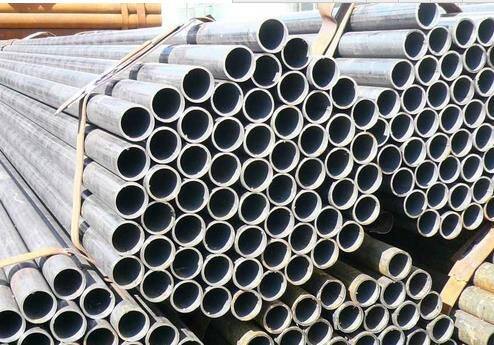

Engineered for precision electromagnetic applications, Shanxi Juli Run's DT4 Seamless Pure Iron Tubing delivers exceptional magnetic performance with industry-leading material purity. This specialized conduit material features ultra-low carbon content and seamless construction, making it ideal for high-efficiency transformers, sensitive sensors, and critical electromagnetic components where consistent magnetic flux is paramount.
Our tubing undergoes strict quality control to ensure minimal impurities (99.8%+ purity), directly contributing to reduced core losses and enhanced energy efficiency in electrical systems. The seamless design eliminates magnetic discontinuities that can compromise performance in demanding applications.
- Superior Magnetic Response: Exhibits high magnetic permeability and low coercivity for rapid magnetization/demagnetization cycles
- Critical Impurity Control: Carbon content maintained below 0.004% to prevent magnetic aging
- Precision Manufacturing: Cold-drawn process ensures dimensional accuracy and surface integrity
Technical specifications can be customized according to application requirements, with standard compliance to both Chinese (GB/T 6983) and international (ASTM A848) material standards:
| Property | Value | Testing Standard |
| Minimum Purity | 99.8% | GB/T 223 |
| Carbon Content | ≤0.004% | ASTM E1019 |
| Relative Permeability | ≥9,500 μ/μ₀ | IEC 60404-4 |
| Coercive Force | ≤72 A/m | IEC 60404-4 |
The manufacturing process involves multiple stages of purification and precision cold drawing, resulting in tubing with:
- Consistent wall thickness (±0.05mm tolerance)
- Optimal grain structure for magnetic uniformity
- Surface roughness (Ra) ≤ 0.8μm for reduced eddy current losses
Applications benefit significantly from these material characteristics. In power transformer cores, the tubing contributes to reduced no-load losses and improved efficiency ratings. For scientific instruments, the consistent magnetic properties ensure measurement accuracy and signal stability. Electromagnetic actuators utilizing this material achieve faster response times and higher force density.
FAQ Section:
Q: What distinguishes DT4 grade from other electrical iron materials?
A: DT4 features significantly lower carbon and impurity levels compared to commercial grades, resulting in superior magnetic softness and reduced hysteresis losses.
Q: Can custom diameters and wall thicknesses be produced?
A: Yes, we manufacture tubing in non-standard dimensions according to technical drawings. Minimum order quantities apply for custom specifications.
Q: How does seamless construction benefit magnetic applications?
A: Seamless tubing eliminates weld lines that create magnetic inhomogeneities, ensuring consistent flux distribution throughout the component.
Q: What surface protection is available for the tubing?
A: Standard material is supplied with oil coating. VCI paper wrapping or vacuum packaging can be provided for extended storage periods.
Q: Do you provide material certification?
A: Mill test reports including chemical composition and magnetic properties are available upon request.
For engineers designing next-generation electromagnetic systems, this tubing represents a critical material solution that balances performance with manufacturability. The combination of ultra-high purity and precision dimensional control makes it particularly valuable in applications where even minor efficiency improvements translate to significant operational savings. Contact our technical team in Taiyuan to discuss how DT4 tubing can be integrated into your electrical equipment designs, or to request samples for material evaluation.
