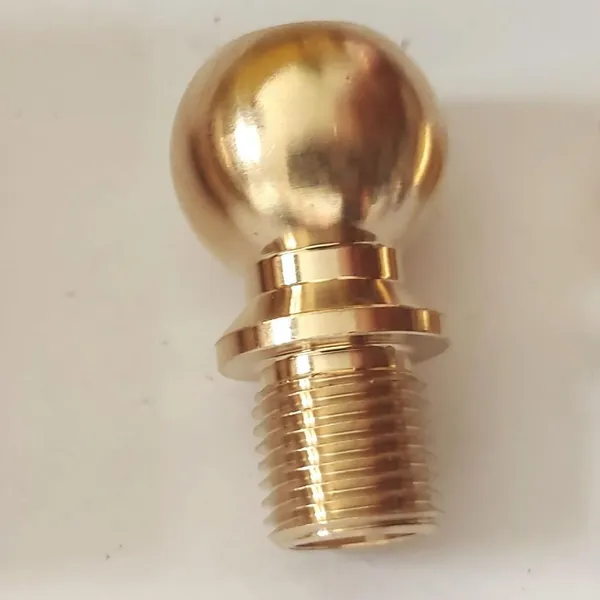

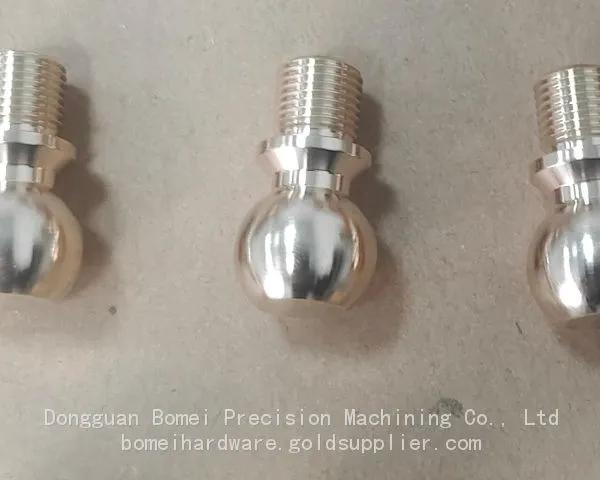

Brass Ball Joint CW614N HPb59-3 CNC Machining Turning Automation Industrial Parts

US$ 0.6 - 14 MOQ: 1 Piece

Key Specifications

Material:

Brass

Application:

Fastener, Auto and Motorcycle Accessory, Hardware Tool, Machinery Accessory

Surface Treatment:

Other

Dongguan Bomei Precision Machining Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

7 days

Material Brass

Application Fastener, Auto and Motorcycle Accessory, Hardware Tool, Machinery Accessory

Surface Treatment Other

Standard GB, EN, API650, China GB Code, JIS Code, TEMA, ASME

Production Type Mass Production

Machining Method CNC Machining

Parameter	Key Details
Material	CW614N brass (high strength, excellent machinability, good corrosion resistance; ideal for heavy-load ball joints); HPb59-3 brass (high lead content for superior cutting performance, cost-effective for mass production; suitable for general industrial automation components)
Processing	CNC precision turning, drilling, tapping (M3–M12 ISO threads), ball grinding, deburring; surface lubrication treatment (reduces pivot friction); 100% dimensional inspection with CMM; torque testing for joint flexibility and stability
Tolerance & Precision	Ball diameter tolerance ±0.005mm; shaft diameter tolerance H7; thread tolerance 6g; concentricity ≤0.008mm (ensures smooth 360° rotation); axial play ≤0.01mm (prevents looseness in automation linkage)
Size Range	Ball diameter: 5–50mm; shaft length: 10–200mm; customizable thread lengths, flange sizes, and tapered shafts; compatible with standard automation linkage rods (diameter 8–30mm)
Mechanical Properties	CW614N: Tensile strength ≥350 MPa, hardness ≥100 HB; HPb59-3: Tensile strength ≥320 MPa, hardness ≥90 HB; operating temperature -40°C to 150°C; wear-resistant for long-term repeated pivot motion
Compatibility	Fits industrial robotic arms, conveyor system linkages, hydraulic cylinder actuators, and packaging machine mechanisms; compatible with steel rods, aluminum brackets, and plastic components; supports bolted and press-fit installation

Application Scenarios

Industrial Robotic Arms: Brass ball joints for robotic end-effector linkages—smooth rotation ensures precise positioning and movement flexibility in assembly line operations.
Conveyor Automation Systems: HPb59-3 ball joints for belt tensioners and guide rail adjusters—corrosion-resistant and durable for continuous 24/7 production line use.
Packaging Machinery: CW614N high-strength ball joints for sealing and cutting mechanism linkages—withstands high-frequency pivot motion without deformation.
Hydraulic & Pneumatic Actuators: Precision ball joints for cylinder rod end connections—low axial play ensures accurate stroke control in industrial automation processes.
Material Handling Equipment: Brass ball joints for forklift and crane control linkages—wear-resistant surface reduces maintenance frequency in heavy-load working conditions.
