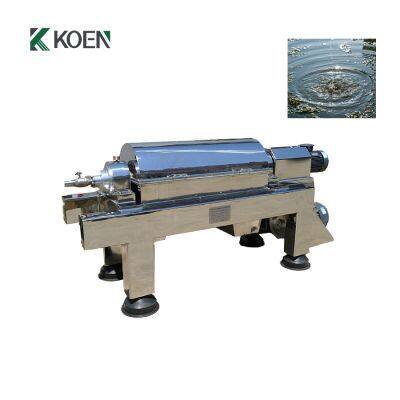

LW 2 Phase Industrial Soy Protein Extraction Decanter Centrifuge Machine
The LW horizontal screw centrifuge is a new type of two-phase horizontal screw centrifuge mainly suitable for (two phase )liquid-solid separation .
Our decanter centrifuge can used in soy protein separation plant .waste water treatment plan .and also applicable separation of liquid-solid from the olive oil,fish oil,avocado oil , coconut oil and so on .
This centrifuge can continuously produce with a high production capacity and small energy consumption per unit,but also has the best separation effect,minimum material loss,most convenient operation and most economical installation and maintenance costs,the new light and heavy liquid phase distribution devices and reliable labyrinth seal structure are used to achieve the best oil and water separation,the advanced slag-discharge structure is also used to achieve the continuous and smooth solid phase slag discharge avoiding the occurrence of blocking materials ,while eliminating solid phase and water mixing in downtime.
After the decanter’s drum and screw conveyor start to full speed.due to the high speed rotating generating a strong centrifugal force,Material from the feed pipe through the feed hole spiral cylinder into the drum,into the drum under the action of centrifugal force,larger specific gravity solid phase sink attached to the drum wall,forming an annual layer of solid phase,Screw conveyor under the action of the differential mechanism(The differential is to ensure the stability of differential speed device,dual frequency adjust speed devices shared bus,achieved drum speed and differential speed stepless adjustable,can adapt to changes in the flow, concentration,to ensure a good and stable separation effect ,spiral and drum produces a constant differential speed.The solid sediment dehydrated from the small end of the cone drum slag outlet launched,the proportion of light clear liquid from the cylinder end of the overflow overflow.So a continuous feeding, separation, slag, water, to achieve continuous separation effect.
This type of centrifuge is designed,manufactured and accepted in accordance with the standard JB/T502-2004 “Screw discharging and setting centrifuge”
· All parts coming into contact with the product are made of stainless steel.
· 3-phase AC motor for controlled torque starting via frequency converter
· Approximately 80 to 90 % of the oil is recovered.
· Low personnel costs due to continuous and automatic operation.
· Highest g-force for higher solids output
· Adjustable bowl speed via VFD
· Automatic adjustment of differential speed via VFD
· Two motor drive
· Belts for both primary motor and secondary motor

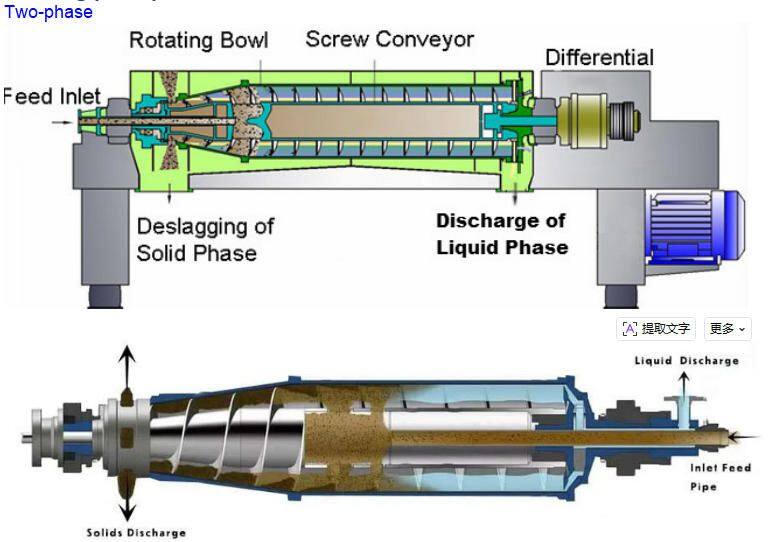

Working principle
Technical Parameters:
Model |
Diameter |
Max. Speed |
Separation Factor |
Capacity (M3/H) |
Power |
Weight (kg) |
Overall Size |
LW250×1000 |
250 |
5400 |
4080 |
2-10 |
11-15 |
1000 |
2600×760×1115 |
LW300×700 |
250 |
4600 |
3553 |
2-10 |
11-15 |
1120 |
2335×814×1170 |
LW300×1000 |
300 |
4600 |
3553 |
2-10 |
11-18.5 |
1380 |
2635×814×1170 |
LW350×1000 |
350 |
4200 |
3450 |
2-18 |
15-30 |
1950 |
2712×872×1244 |
LW350×1320 |
350 |
4200 |
3450 |
3-22 |
22-30 |
2200 |
3012×872×1244 |
LW350×1550 |
350 |
4200 |
3450 |
2-18 |
15-30 |
1950 |
2800×1380×850 |
LW430×1320 |
430 |
4000 |
3845 |
4-28 |
22-37 |
2500 |
3120×940×1320 |
LW430×1600 |
430 |
4000 |
3845 |
4-28 |
22-37 |
2500 |
3000×1500×1000 |
LW430×1800 |
430 |
4000 |
3845 |
4-28 |
22-37 |
2950 |
3600×940×1320 |
LW480×1800 |
480 |
3650 |
3580 |
6-35 |
37-45 |
4550 |
3650×1010×1396 |
LW480×2000 |
480 |
3650 |
3580 |
8-40 |
45-55 |
5050 |
3850×1010×1396 |
LW500×2000 |
500 |
3500 |
3423 |
8-40 |
45-55 |
5800 |
4150×1380×1558 |
LW530×2120 |
530 |
3500 |
3630 |
10-50 |
45-75 |
7200 |
4270×1380×1558 |
LW530×2200 |
530 |
3500 |
3630 |
10-50 |
45-75 |
7200 |
3800×2350×1200 |
LW580×2120 |
580 |
3000 |
29180 |
12-55 |
55-75 |
7800 |
4290×1450×1638 |
LW650×2400 |
650 |
2800 |
29180 |
15-60 |
75-90 |
8300 |
4330×1560×1768 |
Separation Results：
Company :
Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
