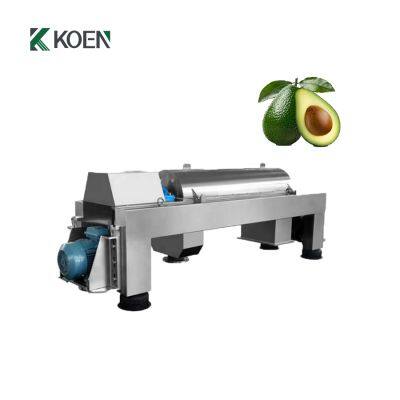

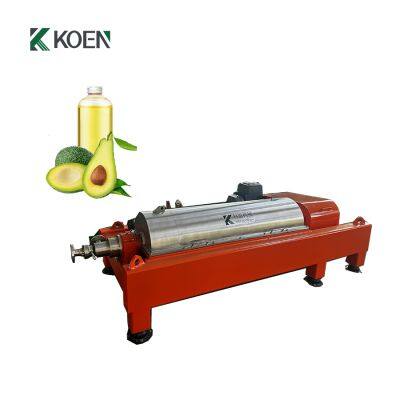

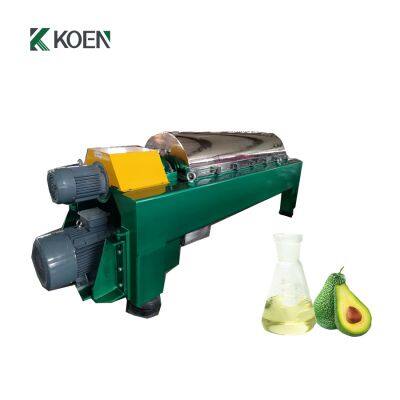

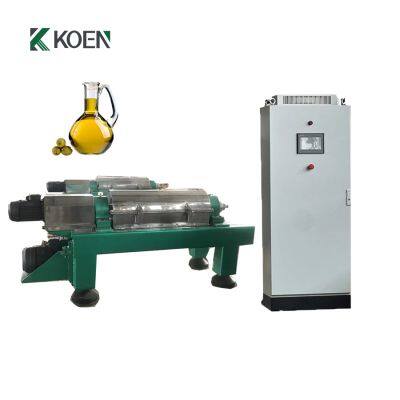

Professional Decanter Centrifuge Sea Buckthorn Oil Extraction Centrifuge Separator
Professional decanter centrifuge sea buckthorn oil extraction centrifuge separator
Main Features:
3 phase liquid-liquid-solid Decanter centrifuges, also called tricanter , Taking advantage of the principle that the heavy liquid,light liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.It is the popular machine throughout the world and widely used in the crude oil separation.Specially used for remove sludge and water from crude oil.

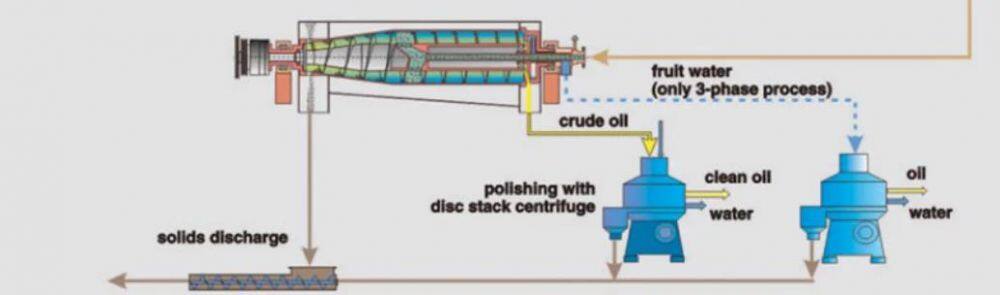

Structure and Principle:
Technical Parameters:
Model | LWS355X1460-N | LWS450X1800-N | LWS520X2080-N | LWS650X2600-N |
Bowl diameter | 355 mm / 14 in | 450 mm/18 in | 520 mm/ 20 in | 650 mm/26 in |
Bowl length | 1460 mm/57 in | 1800 mm/71in | 2080 mm /82 in | 2600 mm/102 in |
Max, Speed | 3500 rpm | 3200 rpm | 3000 rpm | 2500 rpm |
Typical speed | 2800rpm | 2500 rpm | 2300 rpm | 1800 rpm |
G force | 2435 | 2580 | 2620 | 2275 |
Capacity | 5m³/h | 12m³/h | 15m³/h | 25m³/h |
Main drive motor | 15kw | 37 kW | 45-55 kW
| 75-79 kW |
Back drive motor | 7.5kw | 11 kW | 11-22 kW | 30 kW |
Dimensions | 3430*920*1220mm 135*36*48in | 4000*1320*1150mm 157*52*45in | 4510*1410*1170mm 178*56*46in | 50*1800*1450mm 199*71 *57in |
Weight | 2480 | 4200kg | 5000kg | 8900 Kg |

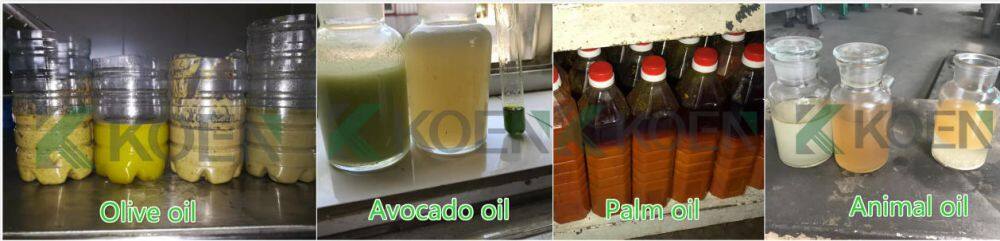

Separation Results:
Company :
Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
