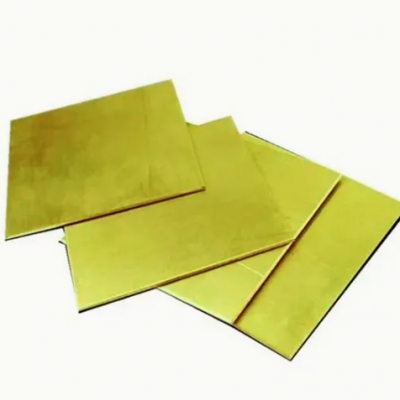

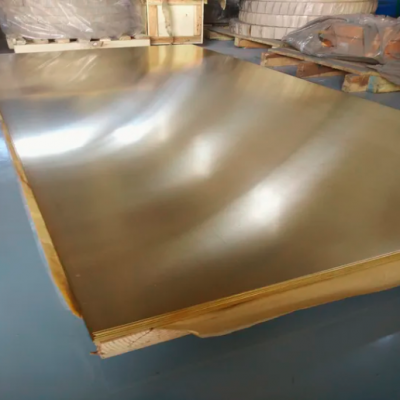

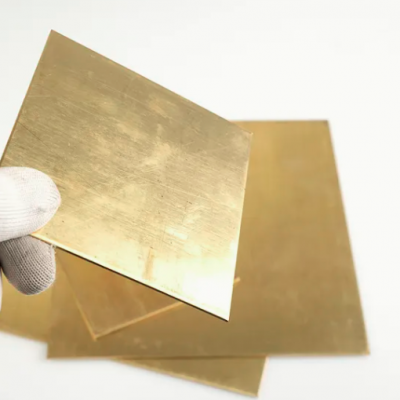

China Brass Plate Pure Copper Plate Sheet H65

Product Description

C2680 brass plate is an alloy with copper as the main component, mainly composed of copper and zinc, and is widely used in many industries such as electronics, electrical, machinery, and construction. It has good machinability, corrosion resistance, and excellent electrical conductivity.

Important indicators of C2680 brass plate:
Chemical composition: C2680 brass plate is mainly composed of copper and zinc, of which the content of copper is usually between about 60%-70% and the content of zinc is about 30%-40%. This ratio gives it high strength and good corrosion resistance.
Mechanical properties:
Tensile strength: usually between 350-450 MPa.
Yield strength: 180-250 MPa.
Elongation: **30%** or more, showing its excellent plasticity and ductility.
Hardness: The Brinell hardness of C2680 brass plate is generally 60-80 HB, and the hardness can be adjusted according to different heat treatment and processing processes.
Conductivity: The conductivity can reach 20-30% IACS, making it widely used in products that require high conductivity.

ALUMINUM PLATE
Alloy No.	C1100	C2680	1060
Width	600,1000mm	<3000mm	Customized
Thickness	600:0.3-20 1000:0.5-20	400-600:0.3-0.5 ≤1000:0.5-3.0 ≤3000:3.0-10	0.3-6.0
Temper	Customized	Customized	Customized

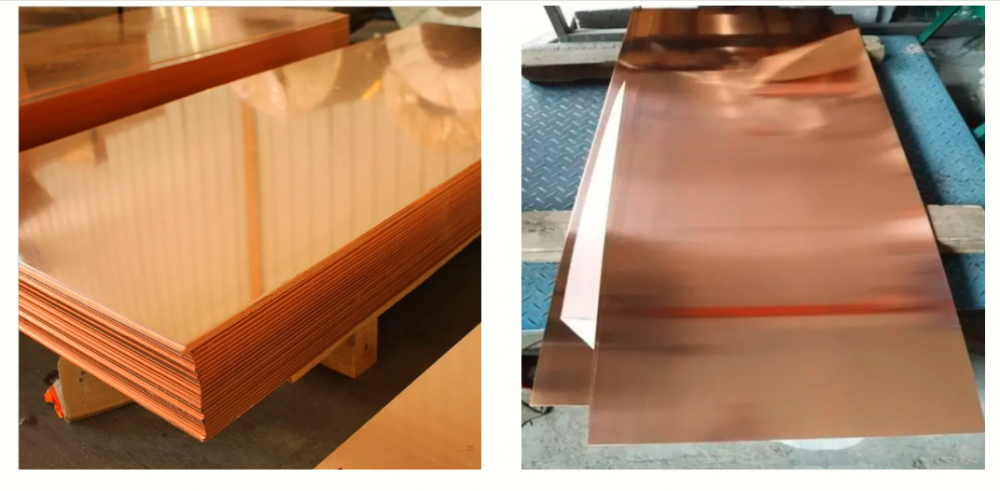

Copper plates and strips are commonly used in conductive, heat-conducting, and corrosion-resistant equipment due to their unique metallic properties and high conductivity and corrosion resistance. Such as wires, cables, conductive screws, blasting detonators, chemical evaporators, storage containers, and various pipelines.
It can also be used to manufacture various load-bearing parts through deep drawing and bending, such as pins, rivets, washers, nuts, conduits, pressure gauges, screens, radiator parts, etc.
