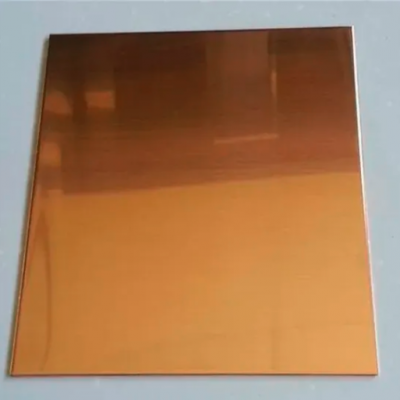

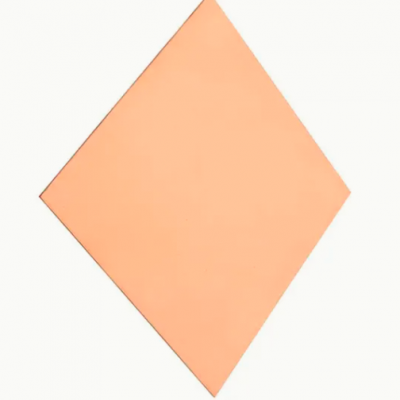

Help CenterHigh-Quality 100mm Deep-Drawing CW008A Copper Plate for Builders
Related Products
-
Premium 2mm Thick CW008A Lead Copper Flange PlateUS$ 50 - 100MOQ: 1 Meter -
High Quality Alloy CW008A Copper Sheet for Automotive Electrical Systems With GBUS$ 50 - 100MOQ: 1 Meter
-
High Quality and Low Price Factory Direct Sales Cheap Source CW008A C10200 Copper Plates Copper SheetUS$ 50 - 100MOQ: 1 Meter
-
Supply Wholesale CW008A Brass Plate for Hotel Decoration CopperUS$ 50 - 100MOQ: 1 Meter
-
Cathode CW008A Cooper Plate/Sheet High Purity 99.99% Copper PlateUS$ 50 - 100MOQ: 1 Meter
| Product Name | 100mm Deep-Drawing Anneal Hairline C10900 Copper Plate for Building |
| Standard | ASTM, AISI, DIN, EN, GB, JIS, etc |
| Material | ASTM B152/B152M-2019: 10900 |
| MOQ | 1 ton |
| Package | Standard export package, suited for all kinds of transport, or as required. |
| price term | EXW, FOB, CFR, CIF, DDP, etc. |
| Contact | If you have any questions, please feel free to contact me. We are sure your inquiry or requirements will get prompt attention. |
| GRADE | TECHNOLOGY | TEMPER | SPECIFICATION(MM) | ||
| THICKNESS | WIDTH | LENGTH | |||
| COPPER | HOT ROLLED | M20 | 4~8 | 600~3100 | ≤6000 |
| >8~150 | 200~3100 | ≤6000 | |||
| COLD ROLLED | O60,H01,H02,H04,H06,H08 | 0.3~ | 400~610 | ≤2000 | |
| 0.5~3.0 | 400~1020 | ≤3000 | |||
| >3.0~12 | 400~3100 | ≤8000 | |||
Chemical Composition
| Elements | Cu(1,2) | Bi |
| Min (%) | 99.99 | |
| Max (%) | 0.001 | |
| (1) Cu value includes Ag. | ||
Copper Alloy
| Type | (GB) | (ISO) | (ASTM) | (EN) | (JIS) | (BS) | (DIN) |
| Red copper | TU2 | Cu-OF | C10100 | CW008A | C1011 | C101 | OF-Cu |
| T2 | Cu-FRHC | C11000 | C1100 | C101 | E-Cu58 | ||
| TP2 | Cu-DHP | C12200 | CW024A | C1220 | C106 | SF-Cu | |
| TP1 | Cu-DLP | C12000 | CW023A | C1201 | SW-Cu | ||
| Sliver copper | TAg0.1 | CuAg0.1 | C10400 | C1040 | CuAg0.1 | ||
| Brass | H90 | CuZn10 | C22000 | CW501L | C2200 | CZ101 | CuZn10 |
| H70 | CuZn30 | C26000 | CW505L | C2600 | CZ106 | CuZn30 | |
| H68 | C26200 | CW506L | C2620 | CuZn33 | |||
| H65 | CuZn35 | C27000 | CW507L | C2700 | CZ107 | CuZn36 | |
| H63 | CuZn37 | C27200 | CW508L | C2720 | CZ108 | CuZn37 | |
| H62 | CuZn40 | C28000 | CW509L | C2800 | CZ109 | ||
| Tin-Bronze copper | QSn4-0.3 | CuSn4 | C51100 | CW450K | C5111 | PB101 | CuSn4 |
| CuSn5 | C51000 | CW451K | C5101 | CuSn5 | |||
| QSn6.5-0.1 | CuSn6 | C51900 | CW452K | C5191 | PB103 | CuSn6 | |
| QSn8-0.3 | CuSn8 | C52100 | CW453K | C5210 | CuSn8 | ||
| QSn6.5-0.4 | |||||||
| Zn-white copper | BZn18-18 | CuNi18Zn20 | C75200 | CW409J | C7521 | NS106 | CuNi18Zn20 |
| BZn18-26 | CuNi18Zn27 | C77000 | CW410J | C7701 | NS107 | CuNi18Zn27 | |
| BZn15-20 | C7541 |
Typical Uses
| General Characteristics | Applications |
|
Good Electrical and Thermal Conductivity
Good Electroplating Ability
Good Corrosion Resistance
Good Cold Forming and Deep Drawing Qualities
Perfect Soldering and Welding
Excellent Against Stress Corrosion Cracking
|
Electric and Electronic Industry
Automotive Industry
Construction Industry
Circuit Breakers
Contact Springs
Lead Frames
Roofing Jewelry
E.V. Components
|
