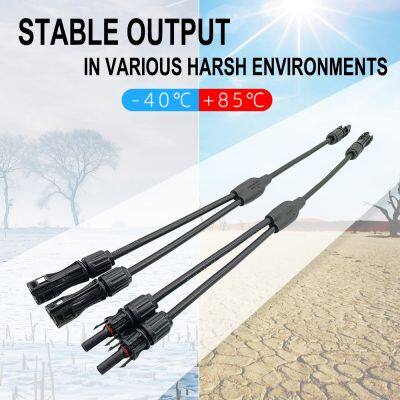

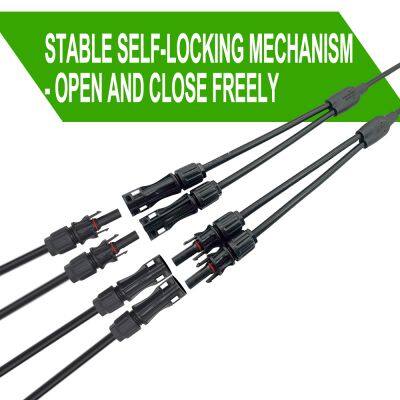

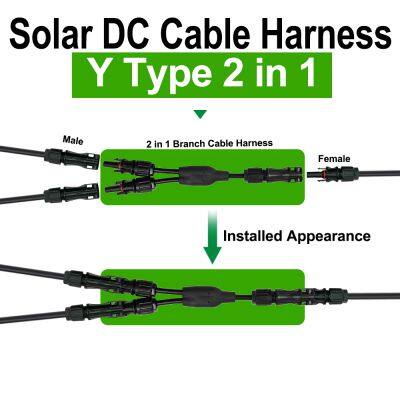

Help CenterDC1500V Solar Panel Wiring Harness Y Type 2 in 1 Cable Branch Without Connector
Product Spotlights
Related Products
-
Solar 1500V DC Smart Branch Wire 3 in 1 Cable HarnessUS$ 5.12 - 8MOQ: 500 Pieces -
Solar Cable Harness Y Type DC1500V 2 in 1 Wire Branch Without ConnectorUS$ 2.46 - 2.62MOQ: 100 Pieces
-
Solar DC Y Cable Harness 1500V 2 in 1 Panels Parallel Branch Wire Solution 45A 50AUS$ 8 - 12MOQ: 1 Pair
-
Solar PV Y Cable Fuse Connector Wire Harness DC 1500V IP68 XLPE 16sqmm Max 500mm LengthUS$ 17.98 - 19.65MOQ: 2 Pieces
-
Solar DC Y Cable Harness 1500V 4 in 1 Panels Parallel Wire Solution 65AUS$ 6 - 6.8MOQ: 5 Pairs
Product Description
| Product Specifications | |||||||||
| Insulation material | PPE/TPE/PA | Safety degree | II | ||||||
| Rated current | Max.100A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1500VDC | Ambient temperature range | -40ºC…+85ºC(IEC) | ||||||
| Test voltage | 8kV(50Hz,Imin) | Suitable cable cross sections | 1.5~10mm2 /16~8AWG | ||||||
| Contact resistance | ≤0.25mΩ | Connecting system | Crimp connection | ||||||
| Contact material | Copper,Tin plated | Nut cap locking force | 0.8-1.0Nm | ||||||
| Degree of protection | IP68(1m,1H) | Upper limiting temperature | 110ºC(IEC) | ||||||
| Overvoltage category/Pollution degree | CATIII/2 | Regulatory approval | TUV/CE(IEC62852:2014) | ||||||
Detailed Photos
Company Profile
NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management, which provide key one-step solution with design, research and development, mass production and sales. The project of our company is divided into two major parts: Firstly, the design, integration, installation and maintenance of PV solar power station, as well as photovoltaic engineering procurement and construction(EPC). Secondly, the development, production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc., which are in line with TUV, CE and other relevant standards. The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others. " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation, social responsibility " is the consistent spirit for NSPV people .
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
FAQ
Q: How old are your company?
A: With over 20 years of experience, NSPV Newsun PV is a trusted manufacturer of PV cable and panel connectors. We hold international certifications like TUV and IEC, ensuring top-quality products. Our global client base and commitment to innovation and customer satisfaction reflect our reliability. You can trust us to deliver proven, high-performance solutions tailored to your needs.
Q: What's your shipment method?
A: We can ship by express, air and sea. Will depending to customers requirement.
Q: What's your Branch Cable Harness price?
A: Please send me your completed Demantion and we will provide the best offer .
Q: How long for the Lead time?
A: Need processing and injection and testing, etc, about 15 to 25 days according.
Q: How do I trust your quality?
A: We can provide you all the certification and testing report which meet your needed.
Q: Where is your location?
A: Out factory and office address is :14F, Building No 12, No.52 Fuhai Road, Xiagang Community, Chang'an Town, Dongguan City, Guangdong., China.
