Features of 6-35KV All Cold Shrink Power Cable Accessories:
Full cold shrink technology: The entire set of products adopts the most advanced full cold shrink technology. No open flame or special tools are required. There is no need to push with great effort. During installation, simply pull out the wire core, and the elastic rubber body will quickly shrink and tightly grip the required installation area.
Reliable insulation: Imported liquid silicone rubber is adopted to ensure excellent insulation and high recovery elasticity. After installation, it always maintains appropriate radial pressure on the cable body, making the inner interface closely combined and preventing electrical breakdown due to the breathing effect during cable operation.
Excellent sealing performance: The intermediate joint adopts a unique triple sealing process. Coupled with the excellent sealing and hydrophobic properties of silicone rubber, it completely eliminates operational accidents caused by atmospheric conditions.
Easy installation: The installation dimension of the stress cone is extended, allowing for greater installation dimension deviation and reducing installation errors. No special training is required during installation. Just follow the installation manual to operate accurately. No open flame or special tools are needed, significantly reducing quality accidents caused by improper operation.
Widely applied: It has excellent anti-pollution, anti-aging, hydrophobic properties and superior cold resistance, making it particularly suitable for high-altitude areas, cold regions, humid areas, salt spray areas and heavily polluted areas.

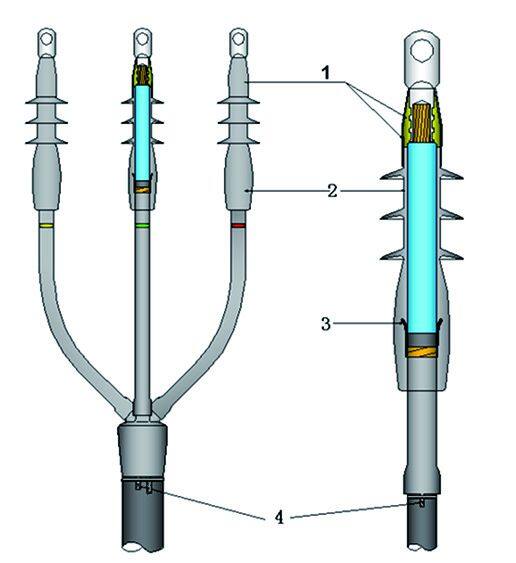

Features: 1. Environmental top sealing treatment Three steps to provide a seal against the entrance of the external environment. 2. Excellent external housing Imported LSR offers excellent hydrophobicity and great anti-tracking property to ensure the power safety. 3. Stress control Stress cone adopts well designed geometric analysis to smooth out the high stress-intense area. 4. Earth connection Adopt Solderless earth connection to connect metal screen or armour to ground. For cables with wire screen, copper wires are imbedded in the sealing mastic to prevent any corrosion by moisture ingression. Note: Terminations can be ordered as standard kits (without lugs ) or complete kits. Terminations and components for other cable types are available on request.
