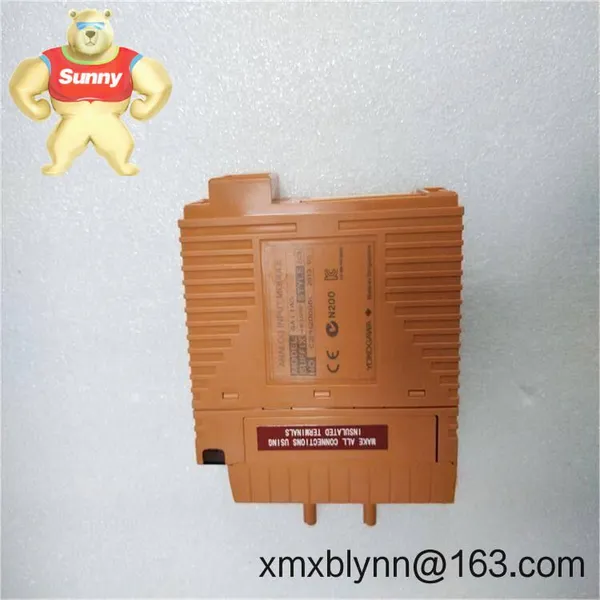

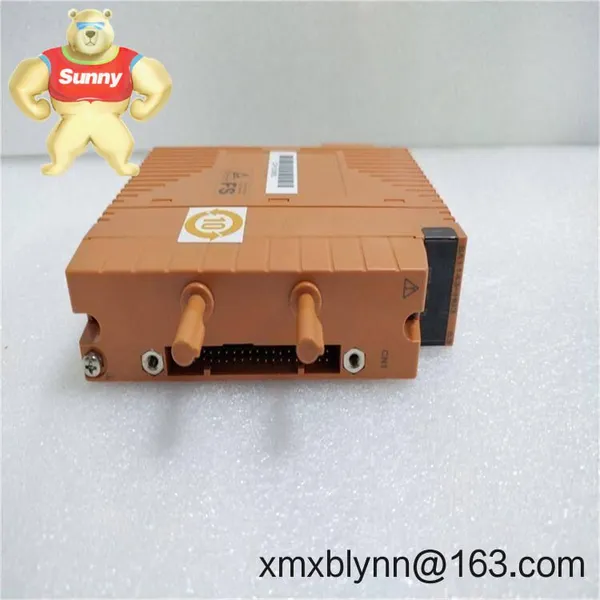

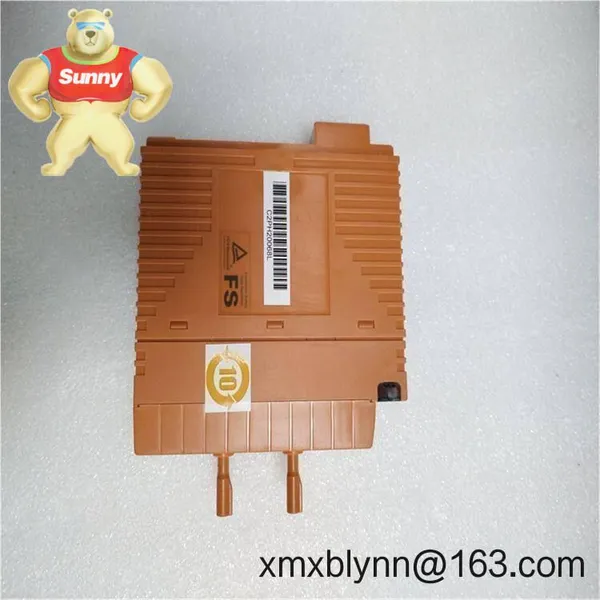

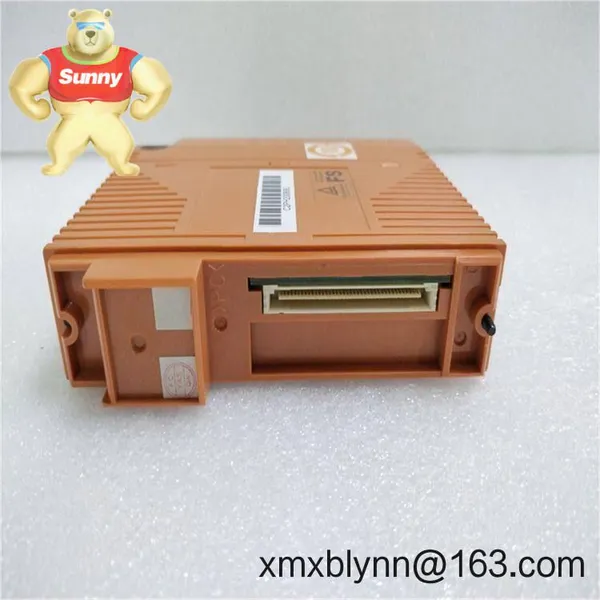

Help CenterYokogawa SAI143-H63: Your 16-Channel Analog Signal Anchor for Critical Processes
Related Products
-
Yokogawa SAI533-H33: Rock-Solid Analog Output for Process Control That Won’t QuitUS$ 2945.00MOQ: 1 Pallet -
Yokogawa SCP401-11 Processor Module: Your DCS Brain for Critical Process ControlUS$ 2945.00MOQ: 1 Pallet
-
Yokogawa SPW482-13 S1: Your DCS Power Chain’s Silent GuardianUS$ 2945.00MOQ: 1 Pallet
-
Yokogawa UP55A-001-11-00: The Profile Controller That Actually Handles Your Trickiest Thermal RampsUS$ 2945.00MOQ: 1 Pallet
-
Yokogawa YS1700-000/A34: Your Go-To Programmable Controller for Precision Temperature ControlUS$ 2945.00MOQ: 1 Pallet
HART-over-analog transparency – Pull device diagnostics without interrupting control signals. In many cases, this means avoiding unscheduled shutdowns when a thermowell starts clogging.
Redundant 24VDC power acceptance – Keeps running during brief outages. A client in Texas told me this saved their ethylene cracker during a lightning strike last monsoon season.
±0.05% basic accuracy – Tighter than most competitors. For custody transfer applications, that tiny margin prevents million-dollar reconciliation gaps.
Hot-swap capable – Replace modules without killing the whole rack. You'll want this during ammonia plant turnarounds when every minute counts.
| Parameter | Specification |
|---|---|
| Brand/Model | Yokogawa SAI143-H63 |
| HS Code | 8538.90.00 (Electrical apparatus for switchboards) |
| Power Requirements | 24VDC dual redundant (18-32V range), 1.2A max per module |
| Dimensions & Weight | 110 x 140 x 105mm, 480g (fits standard 19" rack) |
| Operating Temperature | -20°C to 60°C (derate above 45°C) |
| Signal Input/Output | 16-ch 4-20mA w/HART, 16-bit resolution |
| Communication Interfaces | Vnet/IP (Yokogawa proprietary), supports FCS bus |
| Installation Method | DIN-rail mount in IEC 60297-3 compliant cabinets |
You'll find these humming inside CENTUM VP systems at LNG terminals monitoring cryogenic valve positions—where a single mA drift could trigger a $250k/hour shutdown. In bioreactor farms, they handle pH and dissolved oxygen signals that make or break vaccine batches. One wastewater plant engineer confessed they'd rather use these than "cheaper" modules because during monsoon season, the SAI143-H63's galvanic isolation stops ground loops from turning their SCADA screens into static snow. While not the cheapest option, it's the one reliability managers stockpile when expanding sulfur recovery units.
Let's be real—nobody buys these for fun. But when your controller rack needs to last 15 years without spares runs, Yokogawa's ecosystem pays off. Compatibility with legacy YS1700 systems means no rip-and-replace trauma during brownfield upgrades. The 365-day warranty covers field failures (not lightning strikes, obviously), and firmware updates come through CENTUM's engineering station—no USB drives in classified zones. A refinery procurement manager told me: "The $1,200 module cost disappears when it prevents one unplanned shutdown." You'll typically see 30% lower lifetime costs versus modular competitors once you factor in reduced calibration labor.
Installation & Maintenance RealityMount it in a NEMA 4X cabinet with at least 50mm clearance above/below for convection cooling—those Texas refineries learned the hard way about dust buildup near cooling vents. Wire inputs with shielded twisted pair (drain to cabinet ground), and avoid sharing conduits with VFDs. For maintenance? Check terminal torque quarterly (0.5 Nm), blow out dust with dry air annually, and run the built-in loop test during turnarounds. One caveat: HART diagnostics require configuration via PRM software—it won't magically talk to your handheld without setup. Skip the "set and forget" mentality; these want attention like a race car engine.
Procurement Notes You Won't Find in BrochuresWe ship in-stock units in 1 week (max 4 weeks for backorders). Payment's 50% upfront via wire, balance before FedEx/UPS/DHL dispatch. No credit cards for first-time buyers—sorry, but we've been burned too many times with customs holds. All units ship with CE, UL 61010-1, and IECEx certifications; RoHS compliance is baked in since 2018. Warranty covers defects but not "oops I wired 240V to the input" moments. Pro tip: Order spares during project commissioning—lead times balloon when everyone's scrambling for the same module during turnaround season.
