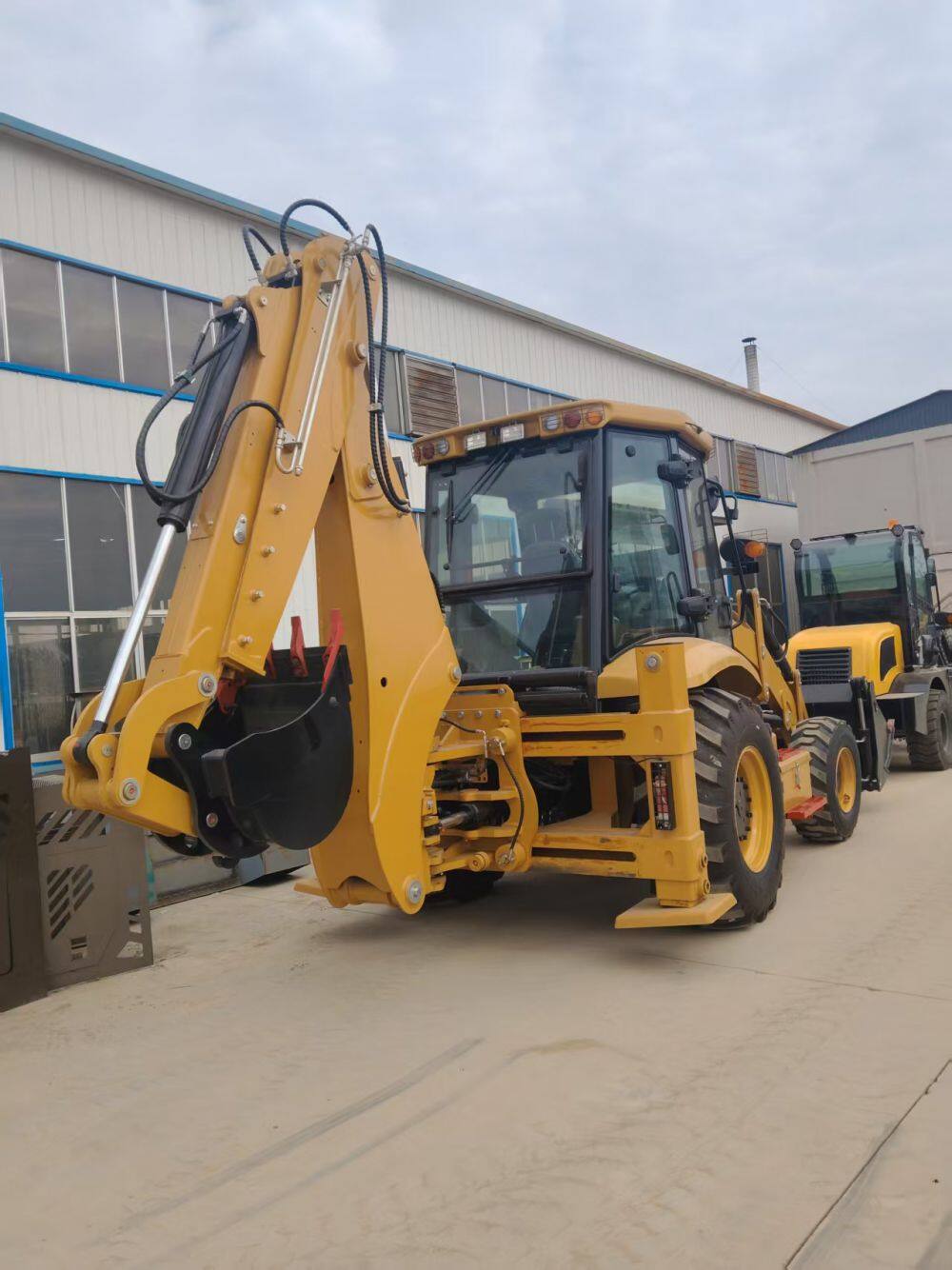

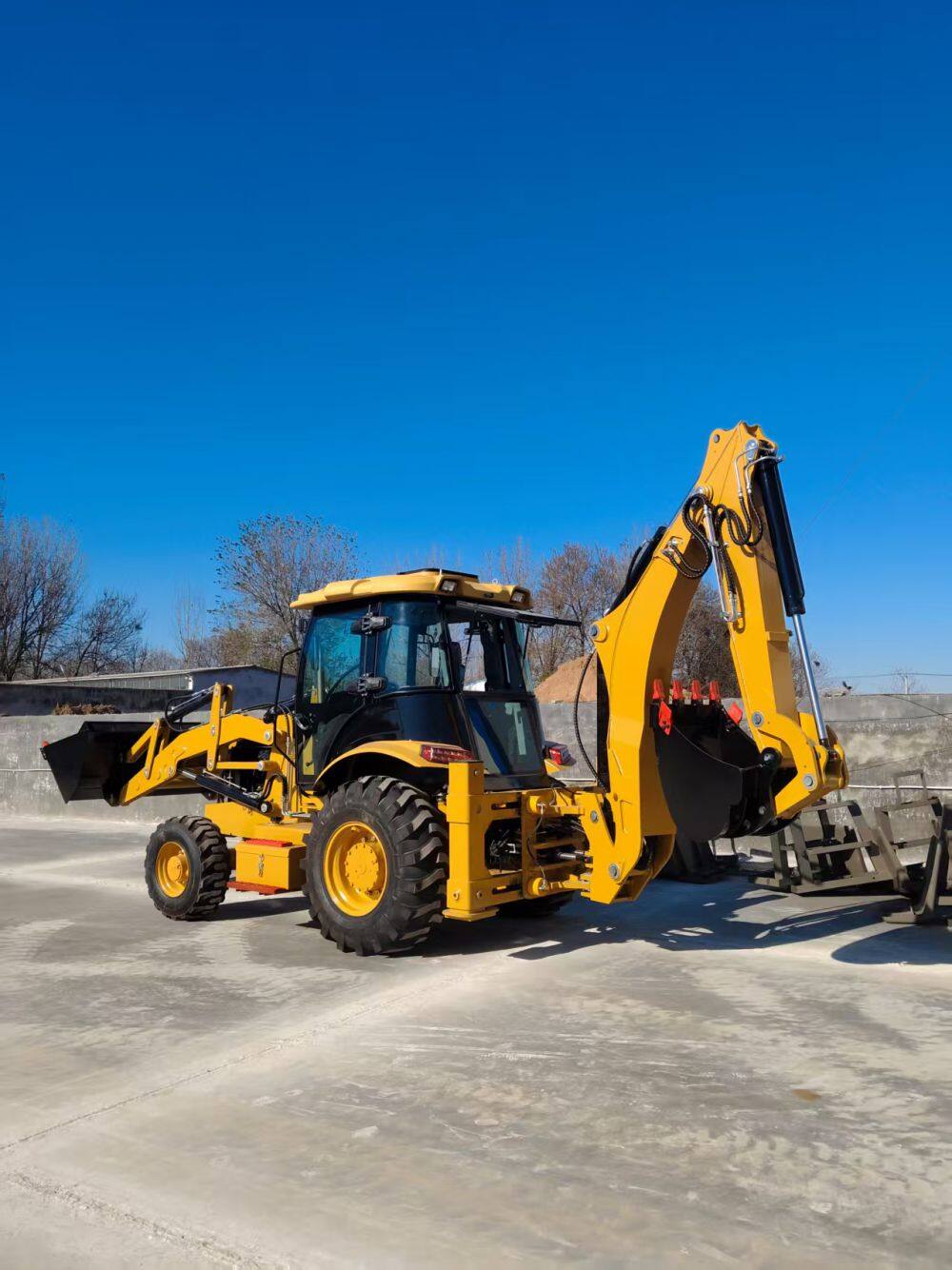

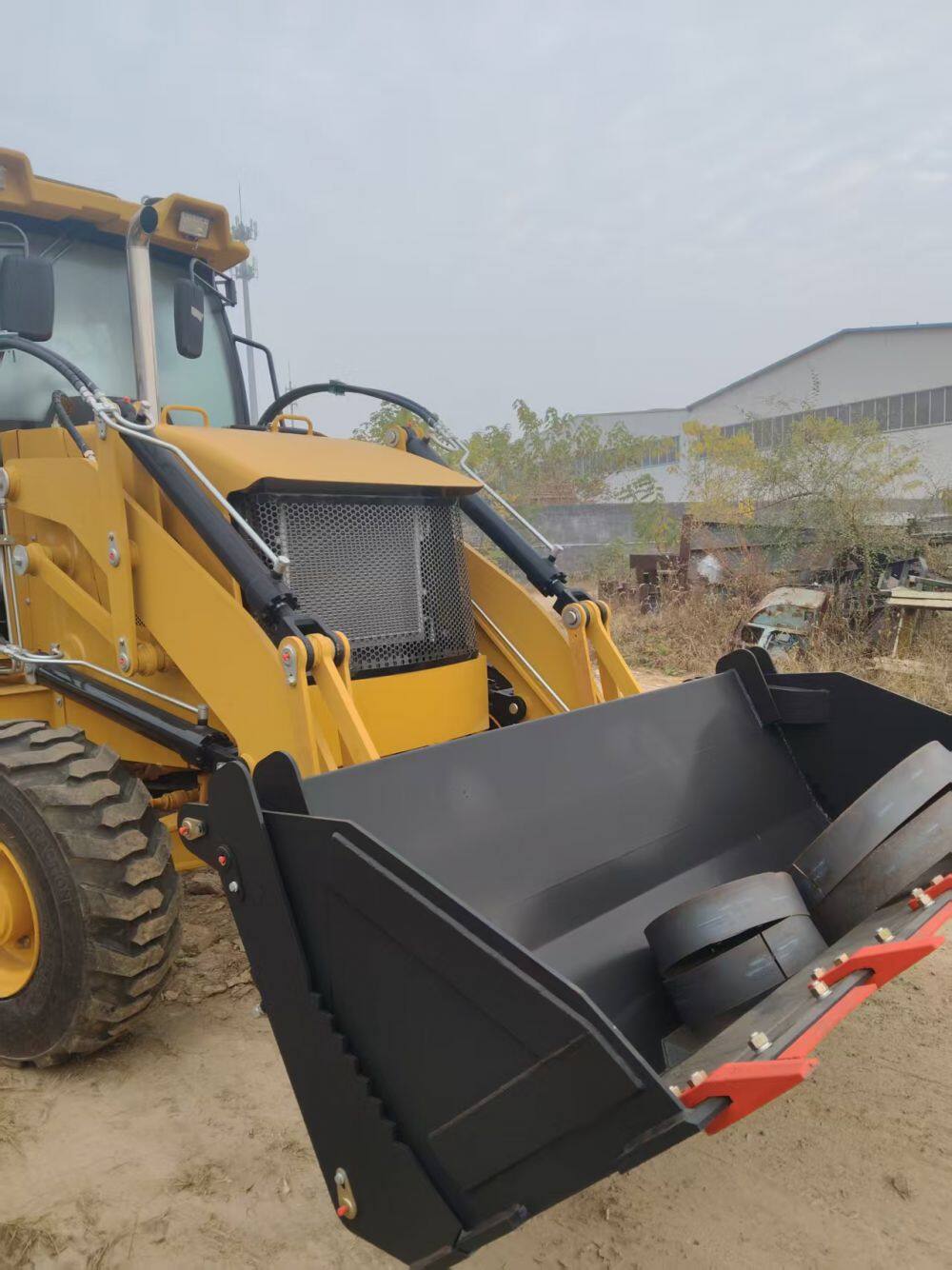

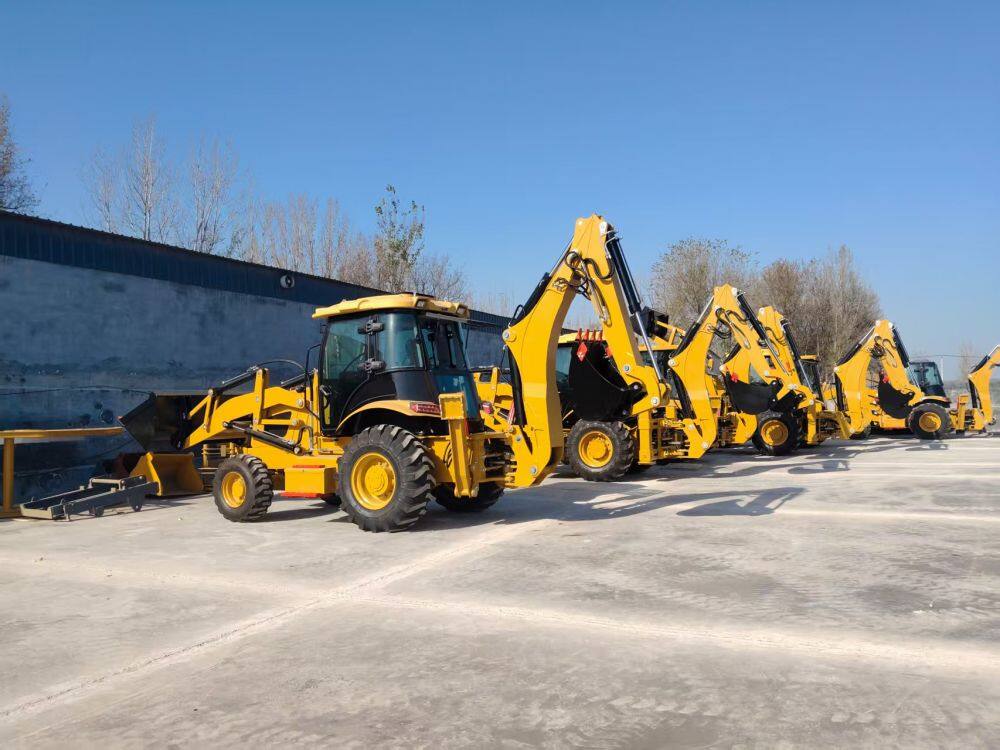

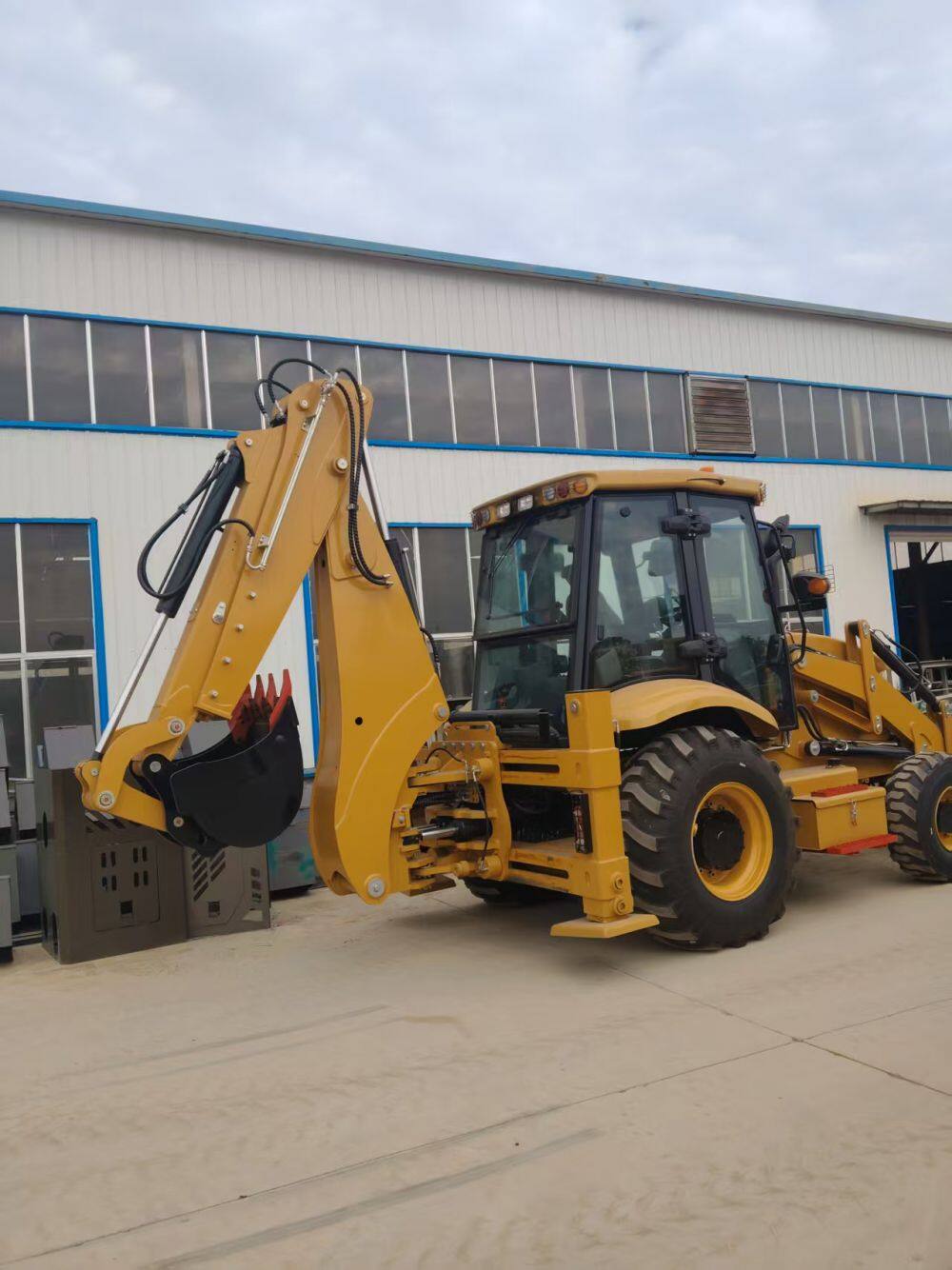

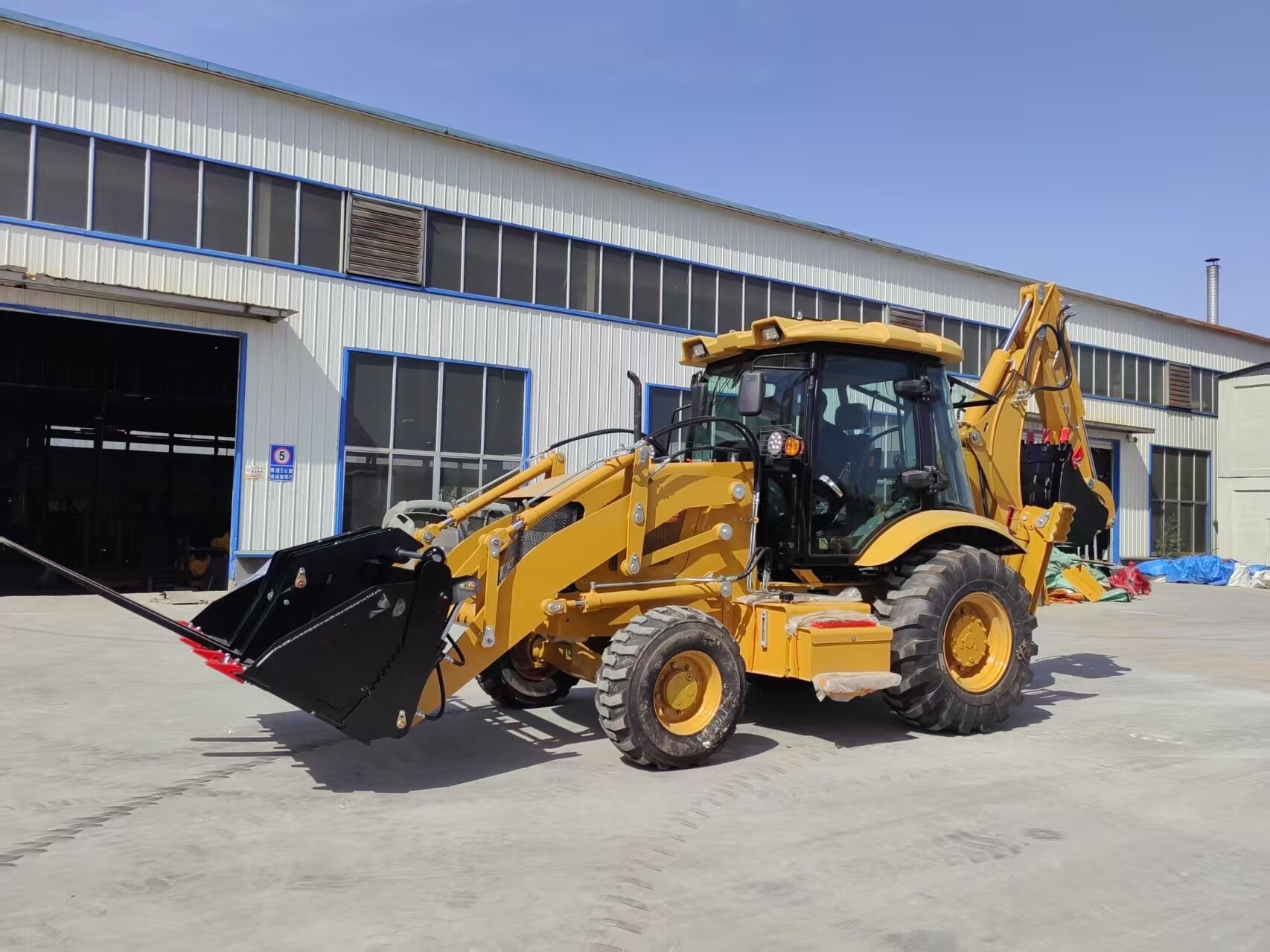

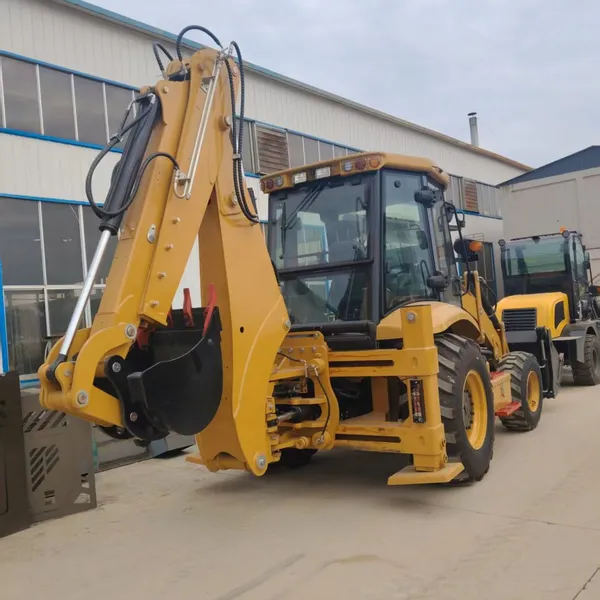

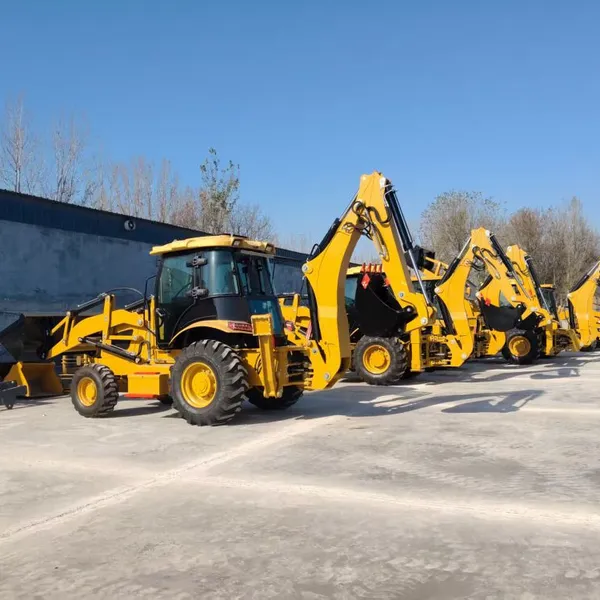

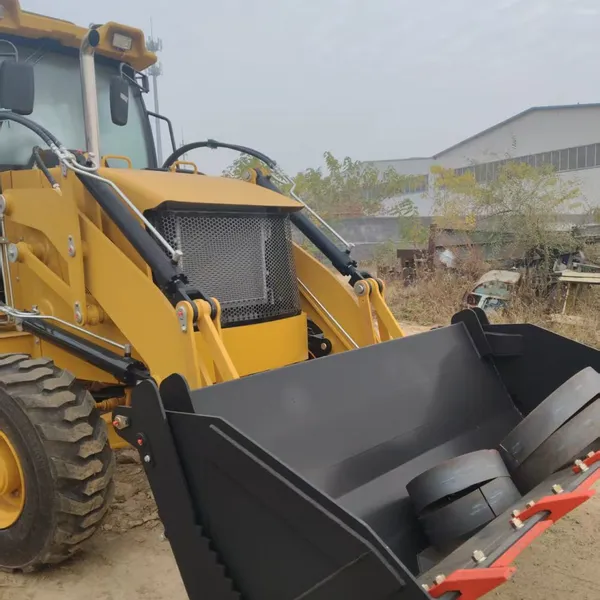

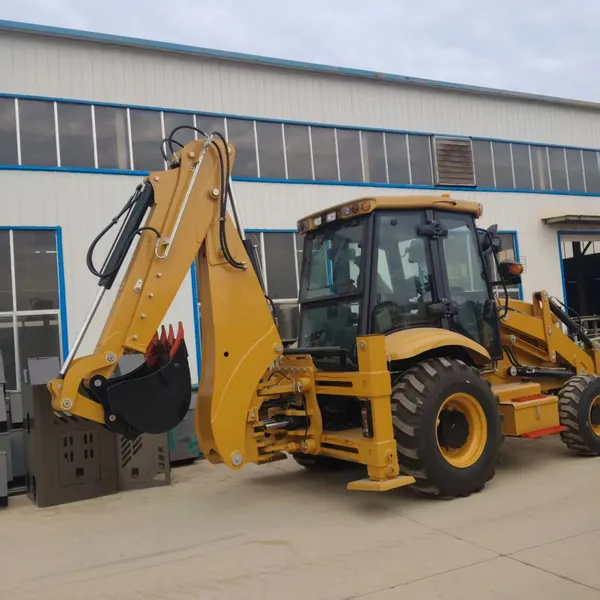

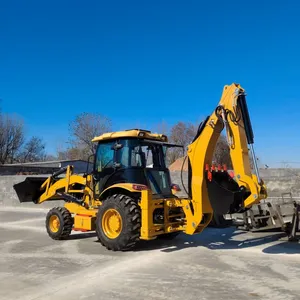

Help CenterLuxury 420F, Folks! The Backhoe Loader is Equipped With an Optional 4-in-1 Bucket and Hydraulic Breaker - Produced by Shandong Luzhuang.
Related Products
-
Technical Parameters and Application Scenarios of Lu Zhuang 420F Backhoe LoaderUS$ 17164.39 - 17282.22MOQ: 1 Unit -
Application Scenarios and Technical Specifications of the LuZhuang 50 LoaderUS$ 33229MOQ: 1 Unit
-
Sanitation Sweeper Warehouse Floor Scrubber Shandong Lu Installed 3800 Road Sweeper 1000L Water Storage TankUS$ 8521.13 - 8896.35MOQ: 1 Unit
-
Lu Zhuang 5-ton Engineering Dump Truck, Four-Wheel Drive, Off-Road, Bucket Capacity 4 Cubic MetersUS$ 7394.37MOQ: 1 Unit
-
is Highly Maneuverable and Can be Easily Adapted to a Variety of Attachments, Allowing it to Perform U-turns in Place With Great Flexibility.US$ 15067.5 - 15498MOQ: 1 Unit
Technical Parameters of 420D Excavating Loader
The Technical Parameter of 420D Backhoe Loader
Total operating weight of the machine
Overall Operating Weight
7100KG
Transport Dimension
Length × Width × Height in mm: L*W*H
7600×2360×2890mm
Wheel base
2250mm
minimum ground clearance
Min. Ground Clearance
300mm
Bucket Capacity
1.5m3
Breakout Force
38KN
loading and lifting capacity
Loading Lifting Capacity
2800KG
unloading height of bucket
Bucket Dumping Height
2800mm
unloading distance of bucket
Bucket Dumping Distance
1062mm
Backhoe Capacity
0.3m3
maximum excavation depth
Max. Digging Depth
4100mm
optional excavation depth
Optional Digging Depth
5000mm
(Extensible arm strap)
dip angle
Swing Angle of backhoe
190o
maximum drawbar pull
Max. Pulling Force
39KN
Engine
Brand/Model
yunnieYN38GBZTurbo engine
type Type
Single-cylinder, direct injection, four-stroke, water-cooled
In Line，Direct injection，Four-Stroke，Water Cooling
Rated Power
76KW
Optional Engine
YUCHAI/YCD4T33T6-115 (National III 90KW)
CUMMINS 74KW 4BT3.9-C100
CUMMINS EURO3 75KW QSB3.9-C100
EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine
Steering System
Steering Angle
±36 o
minimum turning radius
Min. turning radius
6581mm
system pressure
Pressure of the system
12Mpa
banjo axle Axle
brand Brand
FEICHENG YUNYU Front Wheel Steering Drive Axle
type of main drive
Main Transmission Type
double deceleration
Double Reduction
Final Reducer Type with Wheel-side Reduction
Single Stage Final Reducer for the Wheel-side Reduction
rated load
Rated Loader of Axle
4/18.5t
Transmission system
