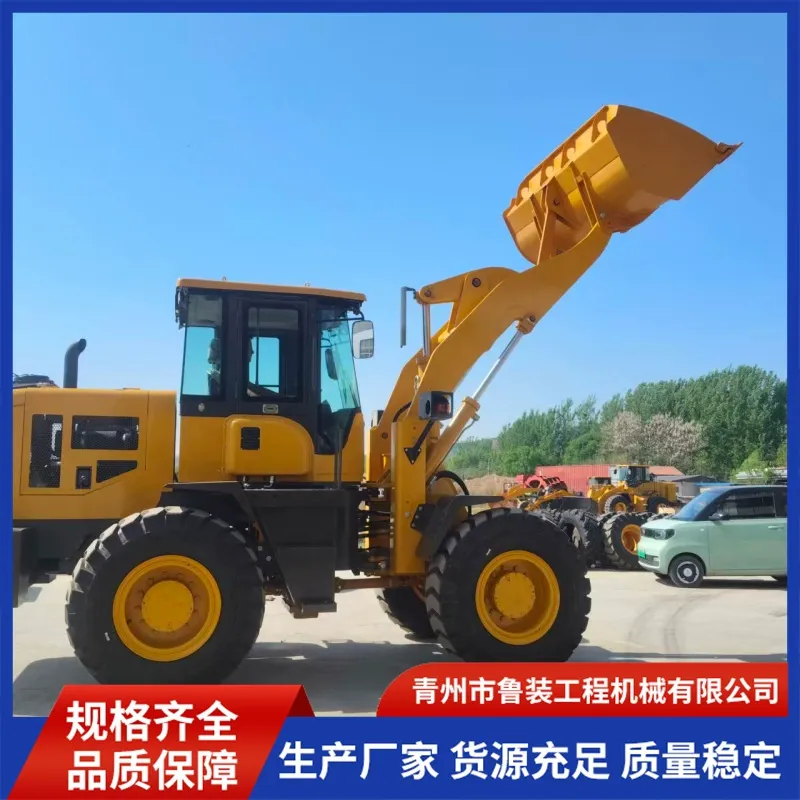

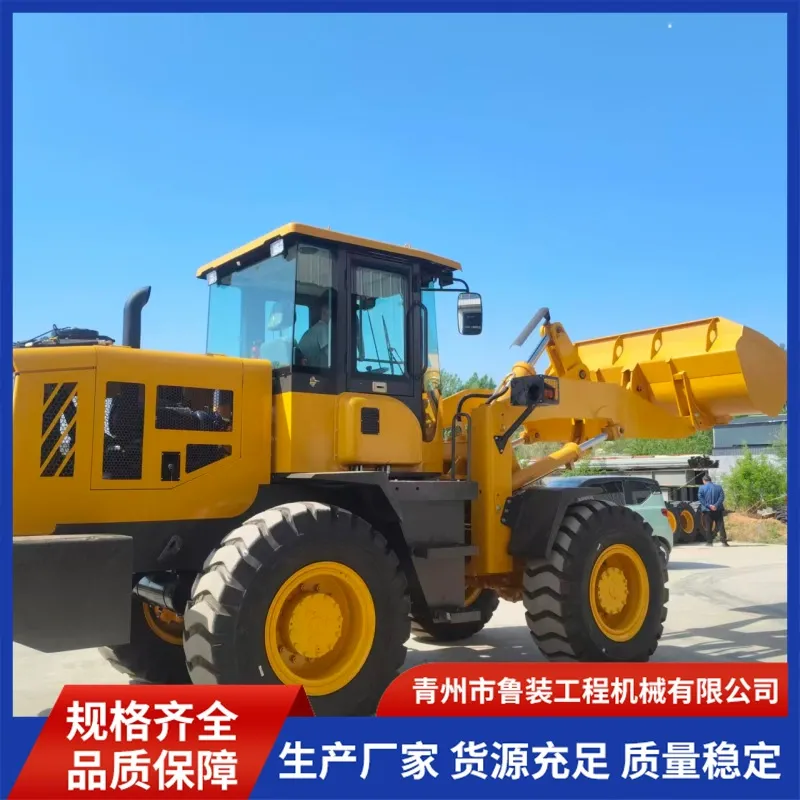

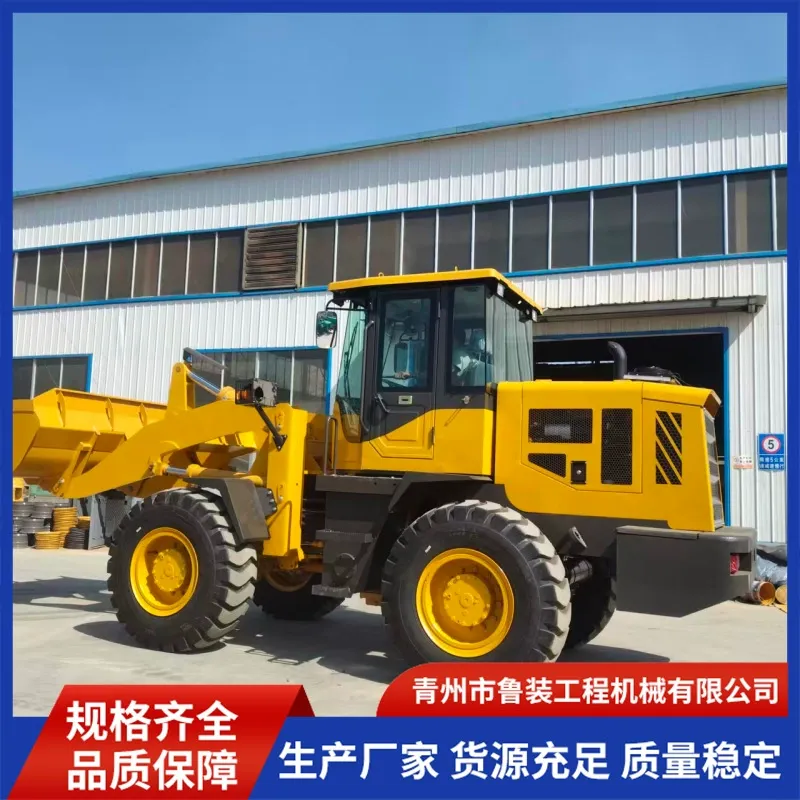

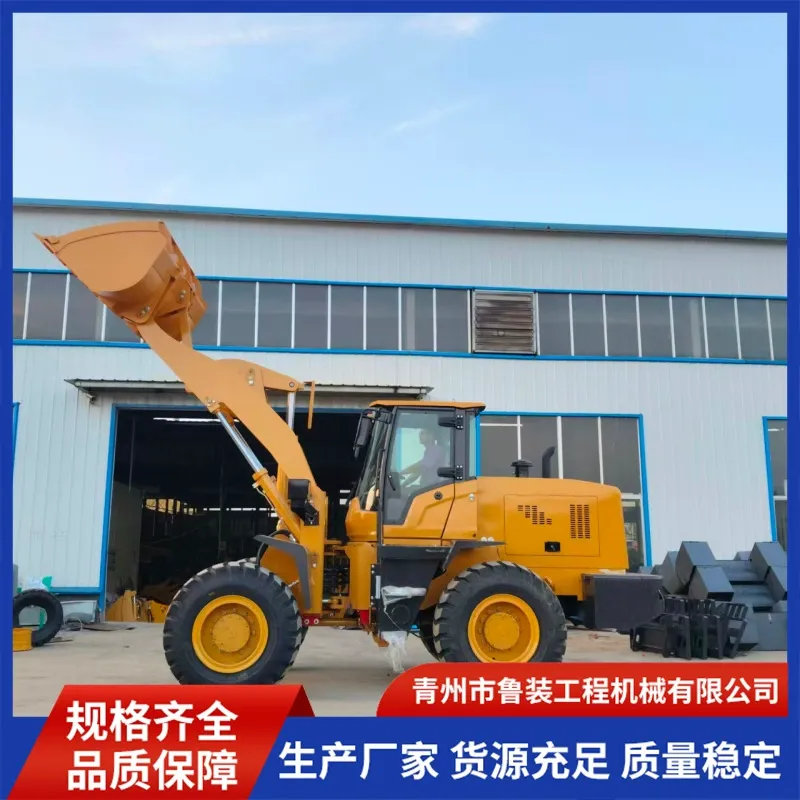

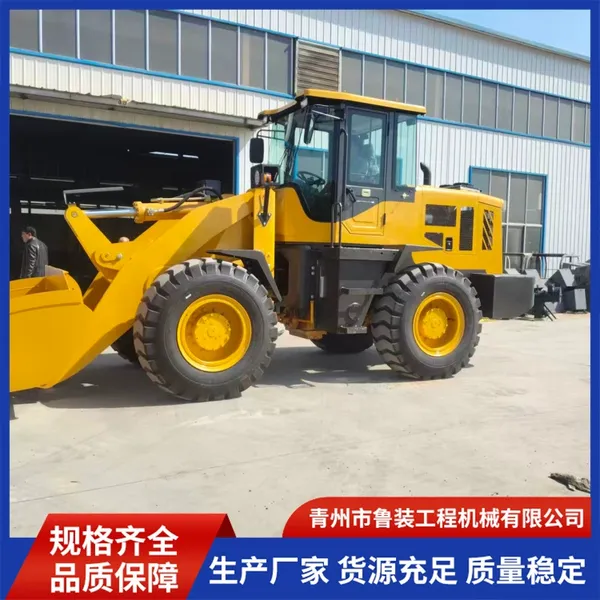

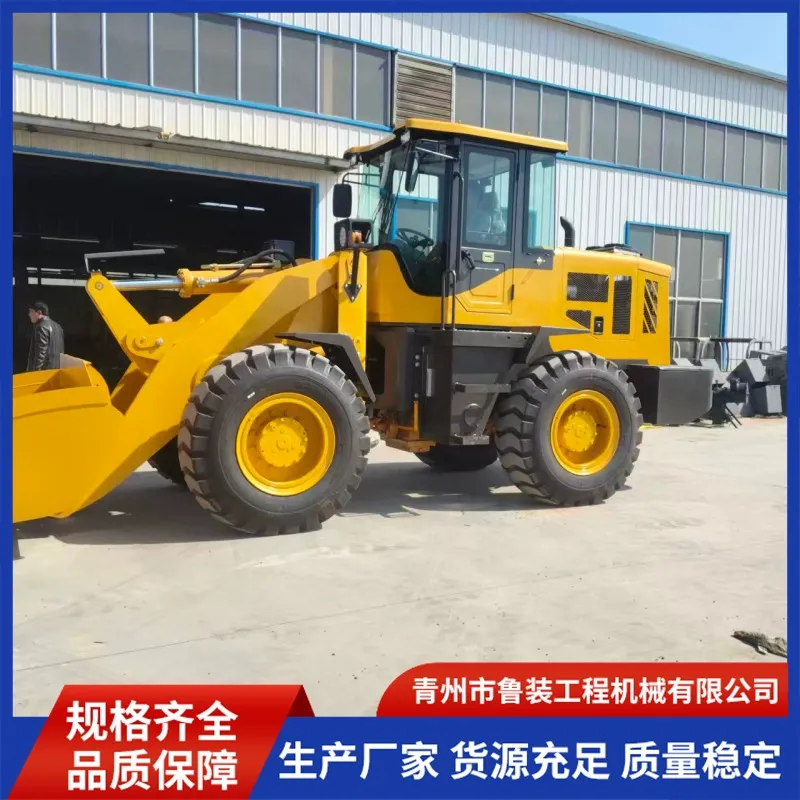

The configuration parameters of the LuZhuang National Standard 30 loader are as follows (based on highly authoritative information):
**Dimensional Parameters:**
Length: 6900 mm
Width: 2470 mm
Height: 3025 mm
Axle distance: 2600 mm – 2900 mm
**Power System:**
Engine: Diesel (specific model not specified)
Power: Approximately 92 kW
Torque: 460 – 520 Nm
Transmission: Single-stage, three-component centrifugal transmission with constant meshing gears.
**Working System:**
Hydraulic system: Working pressure of 16.0 – 16.5 MPa, equipped with a three-way working distribution valve.
Braking system: Four-wheel disc brakes and mechanical brakes.
Tires: High-wear-resistant engineering tires, specification 70-16-241.
**Unloading and Working Capabilities:**
Unloading height: 2.7 – 3.1 meters (adjustable)
Unloading distance: 1000 – 1070 mm
Bucket capacity: 2.7 – 3.0 cubic meters.
**Safety and Environmental Protection Features:**
Equipped with an exhaust water filtration system, meeting mine safety standards.
Features a panoramic cab, LED display, and adjustable seats.
