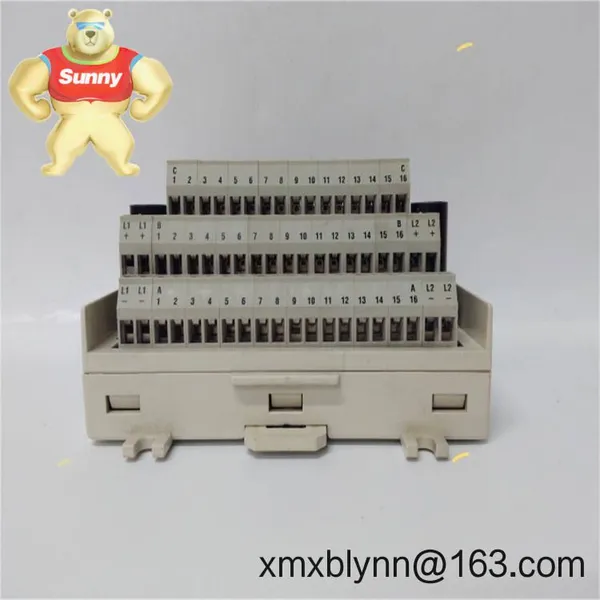

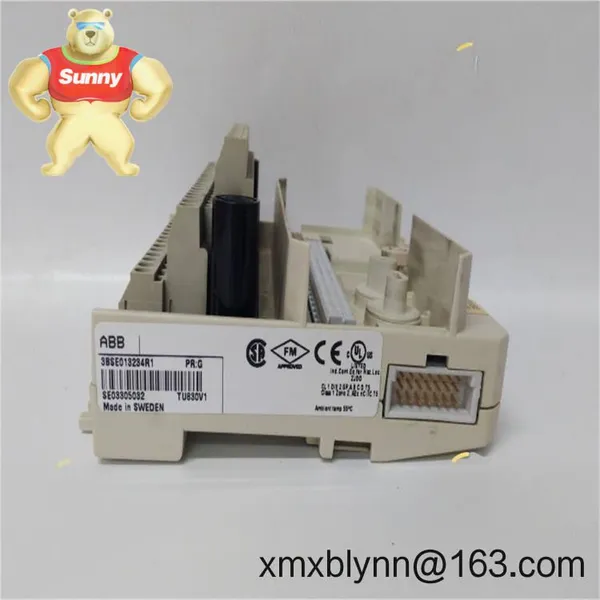

Help CenterABB TU830V1 (3BSE013234R1): Your Modular Signal Distribution Workhorse
Related Products
-
ABB TU847 3BSE022462R1: Your Field-Tested Modbus Workhorse for SCADA SystemsUS$ 2560.00MOQ: 1 Blade -
ABB UFC760BE141 (3BHE004573R0141) Excitation Control Module: Stable Power for Critical GeneratorsUS$ 2560.00MOQ: 1 Blade
-
ABB AC 800M Controller Module 3BHE036342R0101: Precision Process Control for Demanding Industrial EnvironmentsUS$ 2560.00MOQ: 1 Blade
-
ABB 3BHB004744R0010 Gate Pole Drive Unit: Reliable Switchgear Control for Critical Grid OperationsUS$ 2560.00MOQ: 1 Blade
-
ABB GVC704AE01 (5SHX1060H0001 / 3BHB003230R0101) – Gate Unit for IGCT Control in Medium-voltage DrivesUS$ 2560.00MOQ: 1 Blade
Tool-less wiring – Those spring-cage terminals? From my experience, they cut panel build time by nearly 30% compared to screw terminals. Just push the lever, insert wire, release. No more dropped screwdrivers in tight cabinets.
Modular hot-swapping – Need to replace a signal conditioner during production? The snap-in design means you pull one module without disturbing neighbors. A maintenance tech at an automotive plant told me this saved them 45 minutes per changeover.
8.4mm pitch density – Fits standard DIN rail spacing but packs more I/O per foot. In cramped control cabinets (like those retrofit jobs), every millimeter counts.
15A current rating – Handles typical PLC outputs without breaking a sweat, though I'd still avoid daisy-chaining high-power solenoids directly through it.
| Parameter | Specification |
|---|---|
| Brand/Model | ABB TU830V1 (3BSE013234R1) |
| HS Code | 8536.90 (Electrical apparatus for switch/prot. circuits) |
| Power Requirements | Passive component – no external power needed |
| Dimensions & Weight | 8.4 x 62 x 70 mm (WxHxD), 28g – fits tight spaces |
| Operating Temperature | -25°C to +70°C (but avoid condensation below 0°C) |
| Signal Compatibility | Supports TU-series modules (analog/digital I/O, relays) |
| Installation Method | Top-hat DIN rail (35mm) – snaps in without tools |
You'll typically find these bases in the guts of machinery where signal integrity matters: food processing lines with variable-frequency drives causing electrical noise, wastewater plants with high-humidity cabinets, or even wind turbine nacelles where vibration shakes cheaper terminals loose. One customer in chemical manufacturing actually uses them for pH sensor signal conditioning – those analog inputs get nasty when terminal corrosion creeps in.
ABB's global service network means firmware updates for connected modules won't leave you stranded – unlike some obscure brands.
The 365-day warranty covers field failures (not accidental drops, obviously), and in-stock units ship in 1 week. For urgent retrofits, that's a lifesaver.
Payment terms are straightforward: 50% to lock inventory, balance before FedEx/UPS/DHL dispatch. No hidden restocking fees if you need to adjust quantities.
Install these in standard 19" cabinets with at least IP20 protection – no need for fancy sealed enclosures unless you're in a washdown area. One caveat: avoid cramming them next to power contactors; leave 50mm spacing for heat dissipation. For maintenance, just wipe contacts annually with isopropyl alcohol (no abrasives!). And if you're using analog modules, recalibrate every 18 months – that's when drift usually starts showing in harsh environments.
Pro tip: When wiring, don't exceed 1.5mm² conductors. I've seen stripped wires cause cross-connections in tight pitches – not fun to debug at 3 a.m.
Certified for Real-World UseCarries CE, UL 508A, and RoHS compliance – no surprises during safety audits. The polycarbonate housing is UL94 V-0 rated, so it won't propagate flames if things go sideways. And while ABB doesn't shout about it, their 5-year field failure rate is under 0.8% based on last year's service logs. That reliability? It shows up when your production manager stops asking about spare parts.
