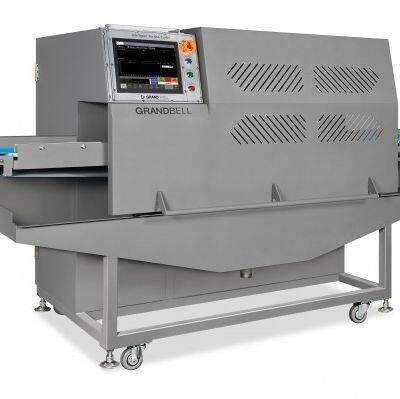

Portion Cutter

Use a 3D vision system and high-performance software to accurately cut raw materials. ▪The next generation laser and vision system accurately position and cut the raw material quickly. ▪Accuracy is guaranteed, which reduces raw material loss and can replace skilled personnel, thereby reducing labor costs. ▪Weight cutting and length cutting can be selected, so it can be applied to various processing methods. ▪It is equipped with a touchscreen interface that allows users to enter conditions conveniently. ▪Various functions for user convenience, such as a reporting function that allows production volume to be aggregated on the day and a function that displays fault diagnosis indicators, etc., have been applied.

Cut meat for pork cutlet, cut chicken partial meat, beef/pork sirloin, fish/partial meat group meal, cut salmon slices, etc

▪Size : 2700×1470×1750㎜ ▪

Belt width : 300㎜ ▪

Belt speed : Adjustable ▪

Maximum : 12cuts/sec

 ▪Weight error range : Within ±3% ▪

Power : 7.5kw ▪

MAX product Height : 135㎜ ▪

MAX product Length : 550㎜ ▪

Product Width : 280㎜ ▪

Input and outlet height of product : 150㎜ ▪

Minimum thickness when cut to thickness : 10㎜
