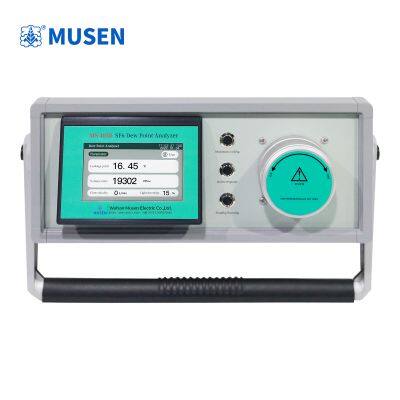

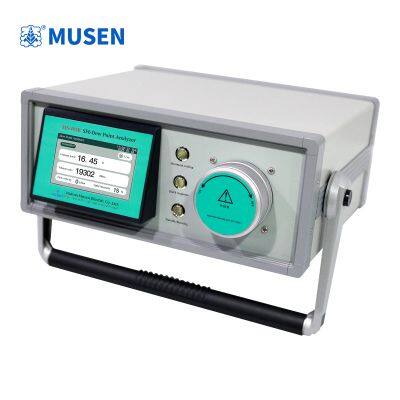

Help CenterMS-405B, SF6 Dew Point Analyzer
Related Products
The SF6 dew point analyzer is a portable, precision dew point meter manufactured using advanced technology.
It accurately measures the dew point temperature of gases.
The perfect combination of a high-quality dew point sensor and intelligent electronic control technology enables its successful
application in accurately measuring dew points under various environmental conditions.
Dew point measurement is based on the cold mirror principle. Through a semiconductor cold stack, water vapor in the measured
gas condenses into water or frost on the mirror surface. When the water in the gas reaches a two-phase equilibrium, the temperature of the mirror surface at this point is the dew point or frost point of the gas.
Compared to other types of dew point meters, the cold mirror dew point meter provides more accurate dew point temperature
measurements and also features good measurement repeatability, stable and reliable results, and ease of operation.
The portable cold mirror method SF₆ gas dew point meter is a standard instrument for humidity measurement in fields such as
power, gas, meteorology, electronics, petroleum, chemical, and metrology, and is an ideal choice for establishing humidity standard devices.
1. The cold mirror balancing principle eliminates measurement errors caused by hysteresis, resulting in high measurement accuracy.
2. Excellent repeatability, fast response, high sensitivity, and good stability.
3. A 3.5-inch full-color high-resolution LCD screen can simultaneously display instrument operating parameters such as dew point,
specular intensity, and sample gas flow rate. It can also perform dew point value and moisture concentration conversion.
4. Features a maximum cooling capacity testing function and a low-humidity rapid balancing function to ensure the instrument
can quickly and accurately measure dew point.
5. Convenient gas path connection, simple operation, and easy portability, suitable for various applications.
6. Touchscreen human-machine interface with dynamic graphic curve display; easy and intuitive operation.
7. Rich system function expansion; other functions can be customized according to requirements.
1. Dew point measurement range: -60℃ - +20℃ (at 20℃ atmospheric pressure)
2. Dew point accuracy: ±0.1℃ - ±0.2℃
3. Dew point repeatability: ±0.05℃
4. Measurement mode: Four levels
5. Auxiliary cooling: Heat pipe
6. Dew point temperature sensor: PRT-100
7. Display: 5-inch full-color high-resolution LCD screen
8. Gas path connection: ¼〃 stainless steel PTFE (polytetrafluoroethylene)
9. Sample gas flow rate: 0.2 L/min - 1 L/min
10. Operating temperature: -10℃ - +40℃; Storage temperature: -10℃ - +50℃
11. Ambient temperature: 90%RH max (no condensation)
12. Power supply: 220Vac±10% 50-60 Hz Power consumption:<50W
SF6 dew point analyzer, SF6 dew point meter, SF6 gas dew point analyzer, cold mirror type SF6 gas analyzer
