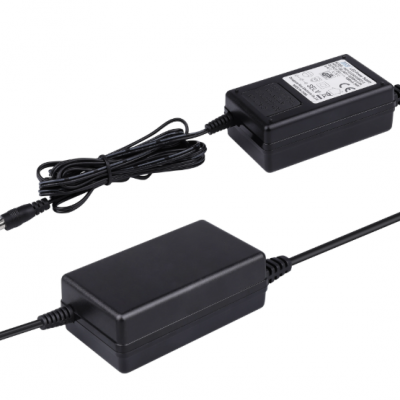

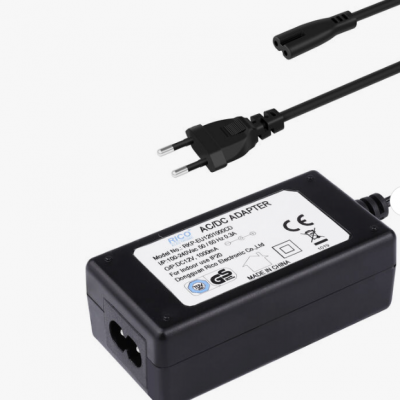

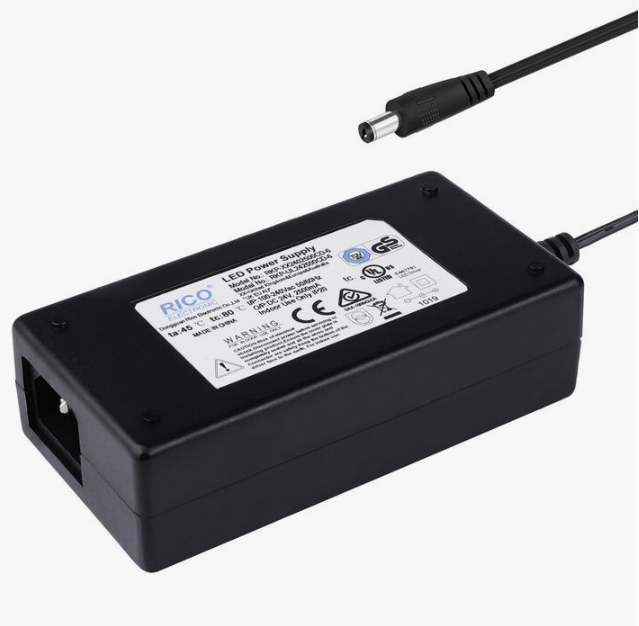

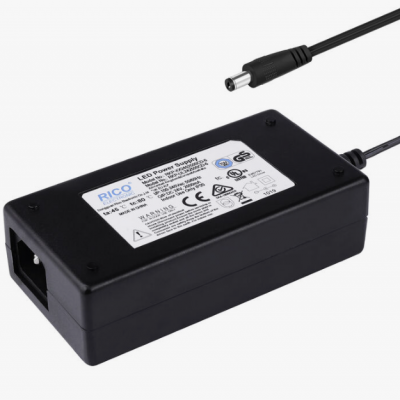

China manufacturer 24W 24VDC 1000mA IP20 SELV Cord Conncected AC/DC Switching power supply
AC/DC Adapter/LED Power Supply/LED Driver
Model No.: RKP-EU2401000CD-5
Key Specifications:
Input voltage: 100-240VAC
Input frequency range: 50/60Hz
Input current: 0.5A
Input with VDE power cord 2x0.75mm Min
Efficiency: more than 80%
Output voltage: 24Vdc
Output current: 1000mA
Output power: 24W
Output with 18AWG Min while the output current more than 2A and 21AWG Min while the output current less than 2A UL2468 UL2464
No load power consumptions: less than 0.1W
With 2-4 hours full load aging test and 100% hi-pot test
Temperature ambient: 40℃
Surface temperature of body: 75℃
Humidity range: 35 to 80% RH
Constant voltage precision: ±5%
MTBF: ≥ 60000 hours at 25℃
Type: cord connected
Dimansions: 88x51x31mm
Weights: 0.11kg
Lead time: 18-20 days
Special Features:
Universal AC input/full range
Certificates: TUV/GS CE
Efficiency standard: DOE VI, NRCan, ERP, CEC, CoC V5 Tier2
Protections: SCP, OVP, OCP and OTP
Primary to secondary with safety isolated
High reliability and light weight
Low working temperatures
Low noise, energy saving and environment friendly
Fire-proof plastic case and cooling by free air convection
Low cost and high efficiency
Low ripple design
3 years lifespan(working time: 2-5 years)
OEM/ODM orders are accepted
Applications:
Home appliances
POS machine
Medical equipment
Input voltage: 100-240VAC
Input frequency range: 50/60Hz
Input current: 0.5A
Input with VDE power cord 2x0.75mm Min
Efficiency: more than 80%
Output voltage: 24Vdc
Output current: 1000mA
Output power: 24W
Output with 18AWG Min while the output current more than 2A and 21AWG Min while the output current less than 2A UL2468 UL2464
No load power consumptions: less than 0.1W
With 2-4 hours full load aging test and 100% hi-pot test
Temperature ambient: 40℃
Surface temperature of body: 75℃
Humidity range: 35 to 80% RH
Constant voltage precision: ±5%
MTBF: ≥ 60000 hours at 25℃
Type: cord connected
Dimansions: 88x51x31mm
Weights: 0.11kg
Lead time: 18-20 days
