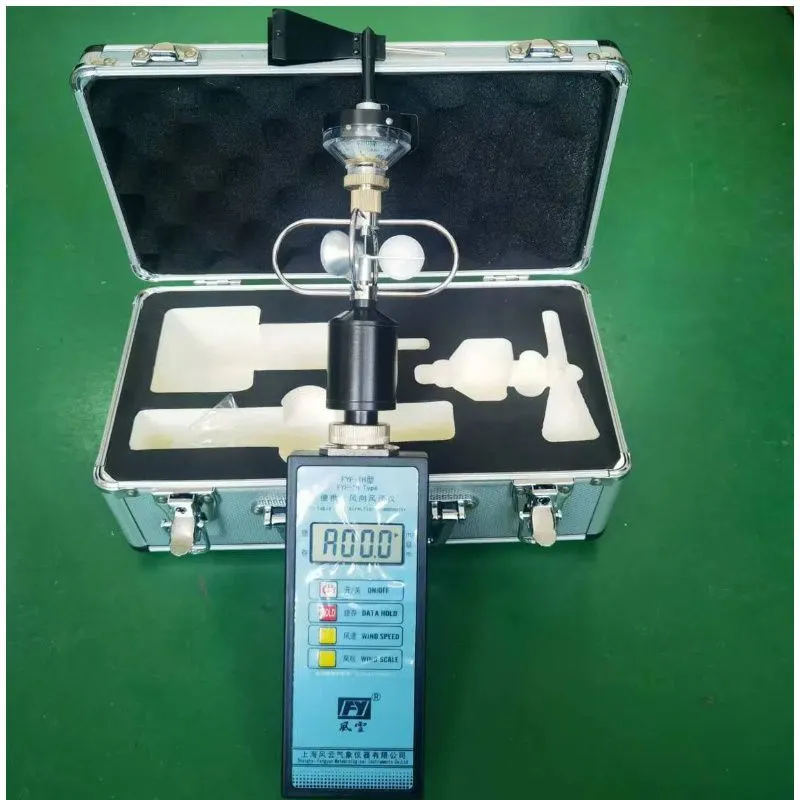

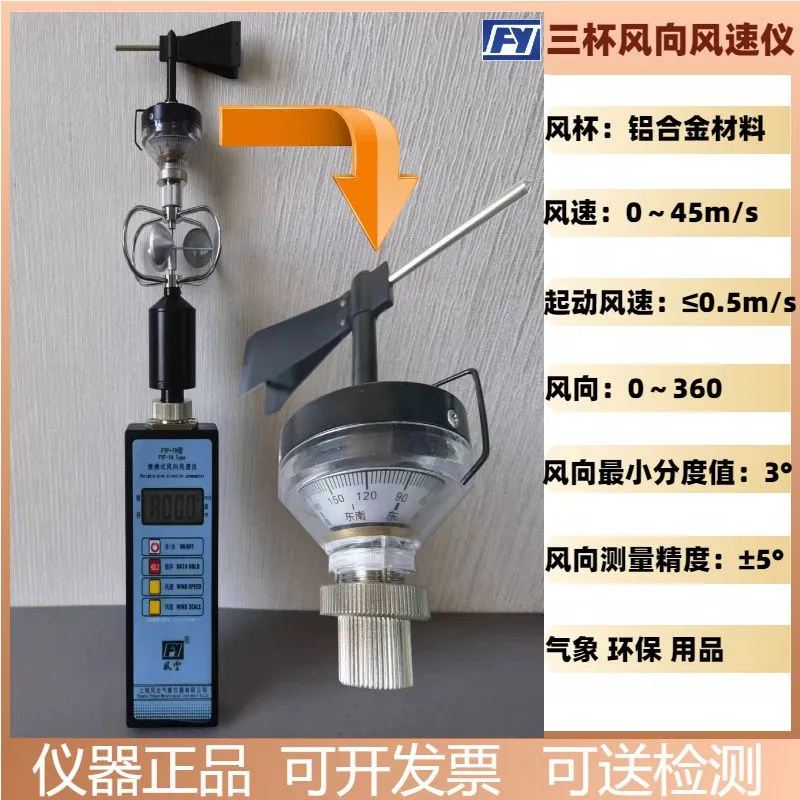

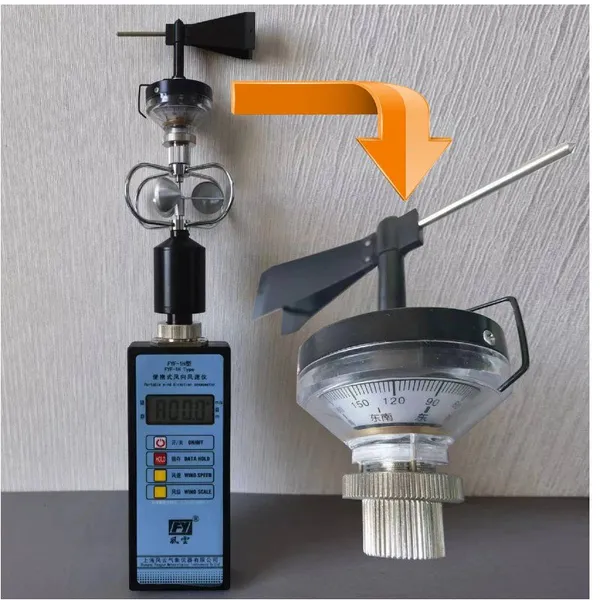

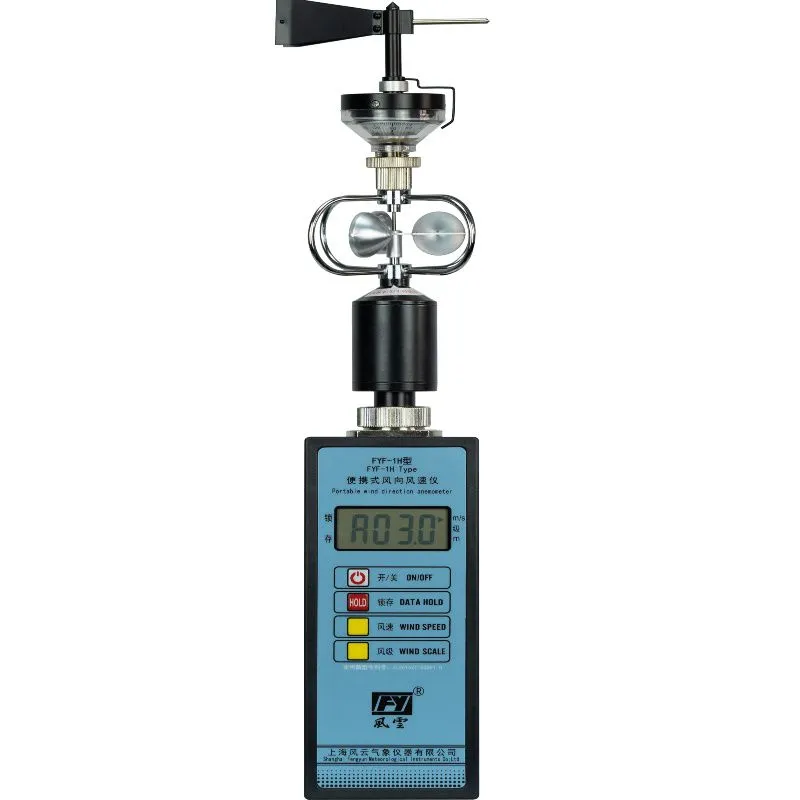

FYF-1H portable anemometer, portable anemometer
The wind speed part of the FYF-1H portable anemometer adopts microcomputer technology, which can simultaneously measure instantaneous wind speed, instantaneous wind level average wind speed, average wind level, and corresponding wave height parameters It has a data latch function for easy reading The wind direction section adopts an automatic north pointing device, which eliminates the need for manual north pointing during measurement and simplifies the measurement operation This instrument is small in size, light in weight, and fully functional. It can be widely used in environmental monitoring, agriculture, meteorology, oceanography, scientific exploration, and other fields to measure wind parameters of natural environments.
1、 Working principle: The FYF-1H portable anemometer cup is made of aluminum alloy material stamped, with exquisite workmanship, accurate measurement, stable indication, and easy portability. It is a commonly used instrument for environmental detection and meteorological environmental protection. Welcome to purchase.

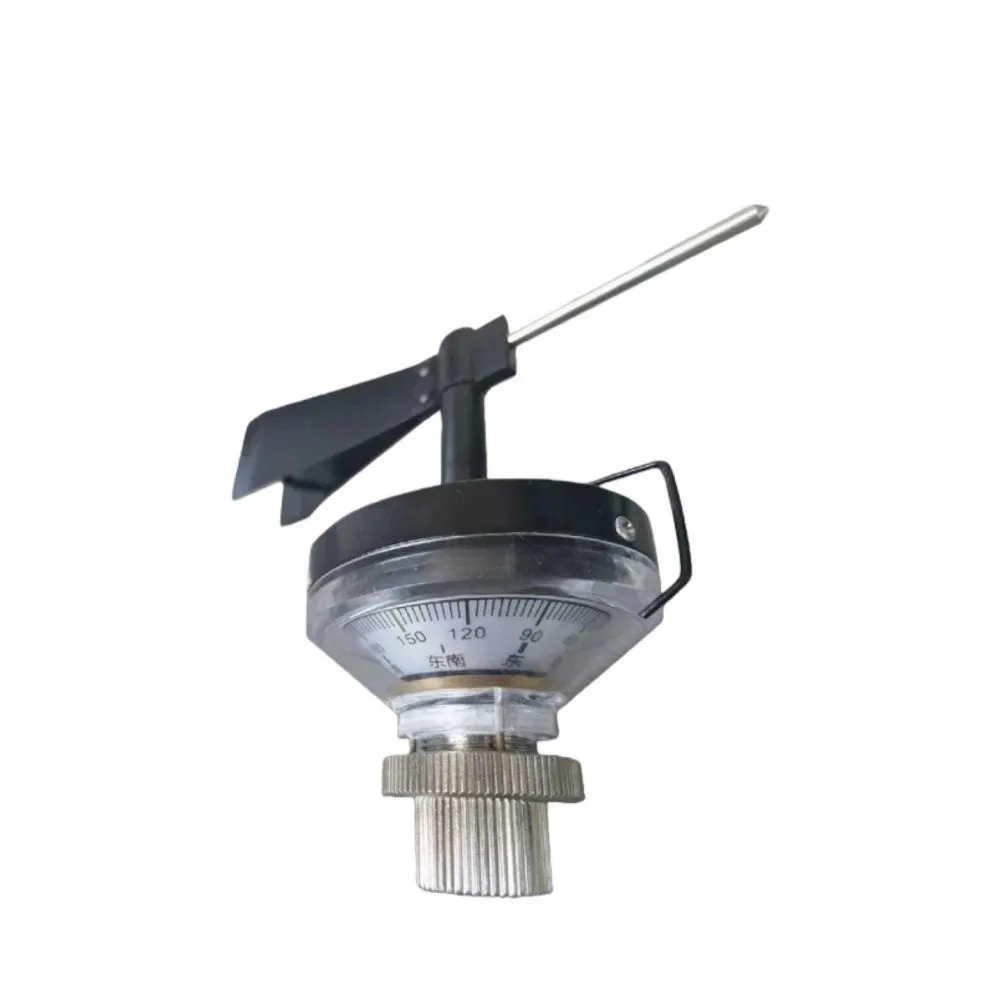

1. Wind direction section: composed of wind vane, wind direction dial (magnetic compass), etc., the wind direction indication is determined by the position of the wind direction pointer on the wind direction dial.
2. Wind speed section: Using a traditional three cup rotating frame structure, the microcontroller inside the instrument samples and calculates the output frequency of the wind speed sensor. Finally, the instrument outputs instantaneous wind speed, one minute average wind speed, instantaneous wind level, one minute average wind level, average wind speed, and corresponding wave height. The measured parameters are displayed directly in numbers on the LCD monitor.
2、 Main technical indicators:
1. Wind speed technical indicators:
◎ Determination method: Three cup method
◎ Cup body material: Aluminum alloy material
Measurement range: 0-45m/s
◎ Starting wind speed: ≤ 0.5m/s
◎ Maximum allowable error: ± (1% standard wind speed value+0.2m/s)
◎ Displayed wind speed parameters: instantaneous wind speed, average wind speed, instantaneous wind level, average wind level, and their corresponding wave heights
Display resolution: Wind speed: 0.1m/s; Wind level: Level 1; Wave height: 0.1m
2. Wind direction technical indicators:
Measurement range: 0-360 °;
◎ Minimum division value: 3 °
◎ Wind direction and starting wind speed: 1.0m/s
Measurement accuracy: ± 5 °
◎ Wind direction to north: automatic north direction
3. Compliant with environmental standards: HJ194-2017
4. Working environment temperature: -30~50 ℃; Humidity ≤ 100% RH (no condensation)
5. Power supply: 3V (3.4-2.68V), 2 No. 5 batteries (3 No. 5 batteries for teaching purposes, please distinguish)
6. Dimensions and weight: 410 × 100 × 100mm; weight 0.5kg
