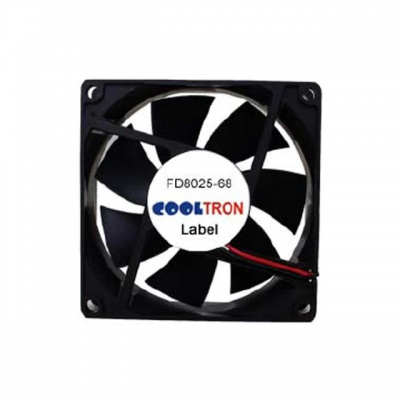

Cooltron 80mm 24V DC Dual Ball Bearing Quiet Industrial Cooling Fan

Product Overview

The Cooltron FD8025B24W3-68-2NU is a high-reliability DC axial fan designed for industrial and electronic cooling applications requiring longevity and whisper-quiet operation1111. Engineered with a durable dual ball bearing system, this 80mm unit delivers consistent airflow while maintaining an ultra-low noise profile of just 15.10 dB(A), making it ideal for noise-sensitive environments22.

Key Specifications

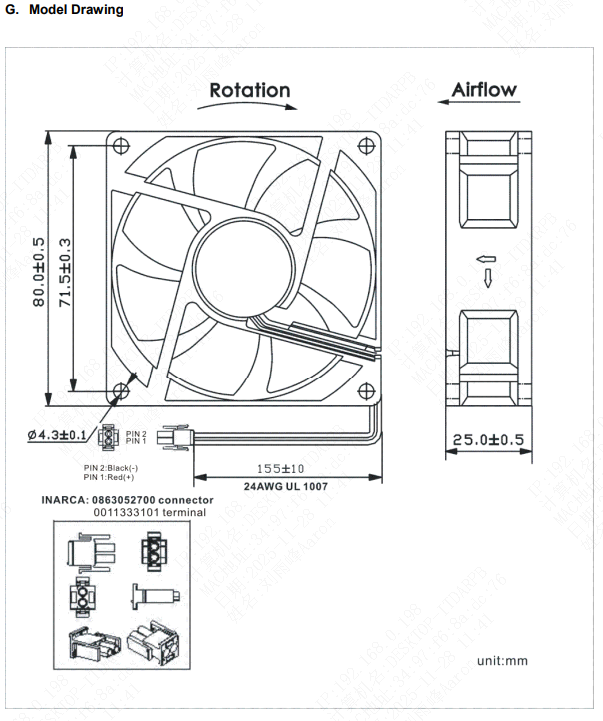

• Dimensions: 80X80X25mm




• Rated Voltage: 24V DC (Operating Range: 12.00V – 27.60V)

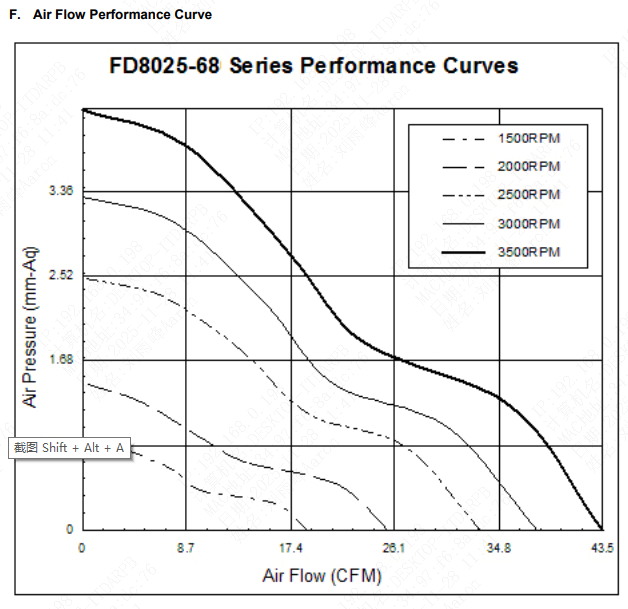

• Airflow: 18.80 CFM (Maximum)




• Speed: 1500 RPM  (±10%)




• Noise Level: 15.10 dB(A)




• Input Power: 0.96W (0.04A Rated Current)




• Bearing Type: Dual Ball Bearing




Performance & Durability

• Extended Lifespan: Rated for 60,000 hours of continuous operation at 40°C (L10 confidence level).




• Rugged Construction: Housing and blades are constructed from P.B.T. + 30% Glass Fiber (UL 94V-0 flammability rating) for thermal stability and fire safety.




• Environmental Protection: Features IP21 protection rating.




• Circuit Protection: Includes locked rotor protection (72-hour continuous lock capability without damage) and polarity protection against VCC and GND reversal.




Certifications & Connections

• Safety Approvals: Fully certified by UL, CUL, and TUV.




• Connectivity: Pre-equipped with a specialized INARCA connector (0863052700) on UL 1007 26AWG lead wires.




• Operating Conditions: Suitable for temperatures ranging from -10°C ~ +65°C.
