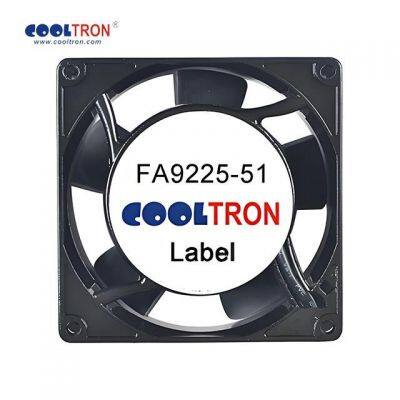

High-Performance 92x92x25mm AC Fan 115V Dual Ball Bearing Impedance Protected

This COOLTRON FA9225B11W7-51P is a high-performance AC axial fan designed for reliable and continuous cooling in various industrial and commercial applications. Featuring a robust construction and dual ball bearings, this fan ensures a long life expectancy and stable operation.

• Size and Design:

• Outline Dimension: $92\times92\times25\text{ mm}




• Bearing Type: Dual Ball Bearing




• Housing Material: Die-Cast Aluminum, Painted Black




• Blade Material: Thermoplastic PBT, UL 94V-0




• Net Weight: 300 Gram




• Rotating Direction: Counter-Clockwise (Looking at Rotor Side)




• Electrical and Performance Data (50/60 Hz):

• Rated Voltage: 115 V AC




• Operating Voltage: 100 to 125 V AC




• Rated Current (50/60Hz): $0.14/0.11\ A




• Power Consumption (50/60Hz): 11/9 W




• Rated Speed (50/60Hz): 2,700/3,200\ R.P.M. ±10%

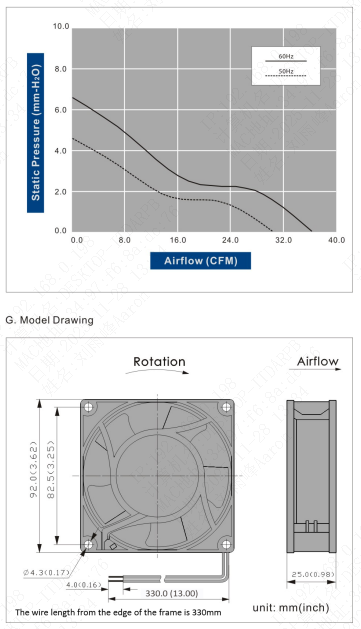

• Maximum Airflow (50/60Hz): 30.0/36.0\CFM




• Maximum Static Pressure (50/60Hz): 4.6/6.5\ mm-H2O}




• Noise Level (50/60Hz): 40.0/45.0\dB (A)




• Protection and Safety:

• Motor Protection: Impedance Protected




• Life Expectancy (L10 at 40°C: 80,000 Hours




• Safety Approvals: CE , UL , CUL




• Compliance: RoHS Compliant




• Environmental Ratings:

• Operating Temperature: -20°C to +70°C




• Storage Temperature: -40°C to +85°C
