Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Versatile FC4 Series Thermal Bullet Camera With 12μm Detector, 550°C Range, and Dual-Function Temperature Analysis for Security Applications
Versatile FC4 Series Thermal Bullet Camera With 12μm Detector, 550°C Range, and Dual-Function Temperature Analysis for Security Applications
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
1 year
Usage:
Industrial
Standard:
Celsius/Fahrenheit, Celsius, Fahrenheit
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantai
Delivery Detail:
7 days
Related Products
-
Reliable FC430T Thermal Camera With 12μm Uncooled Infrared Detector, Smart Alarm Function, and Perimeter Surveillance CapabilityNegotiableMOQ: 50 Pieces -
Reliable FC430T Thermal Camera With 12μm Uncooled Infrared Detector, Smart Alarm Function, and Perimeter Surveillance CapabilityNegotiableMOQ: 50 Pieces
-
FC125T Dual-Spectrum Turret Camera 256×192 Thermal 5MP Visible IP66 for Fire DetectionNegotiableMOQ: 50 Pieces
-
FC225T Dual-Spectrum IP Camera With AI Human/Vehicle Recognition for Perimeter SecurityNegotiableMOQ: 50 Pieces
-
FC460A Thermal Bullet Camera With Fire Detection and Tripwire Intrusion Alarm for Perimeter SecurityNegotiableMOQ: 50 Pieces
Warranty
1 year
Usage
Industrial
Standard
Celsius/Fahrenheit, Celsius, Fahrenheit
After-sales Service
Support
Accuracy
≤0.5°C
Transport Package
Other
Specification
319.5×121.5×103.6mm, ≤1.5kg
Trademark
Raythink
Origin
Yantai

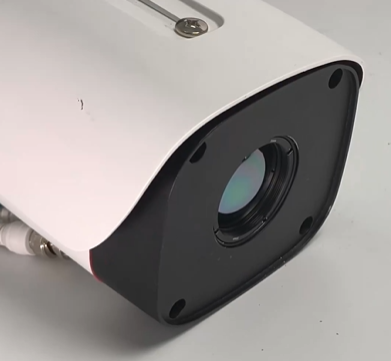

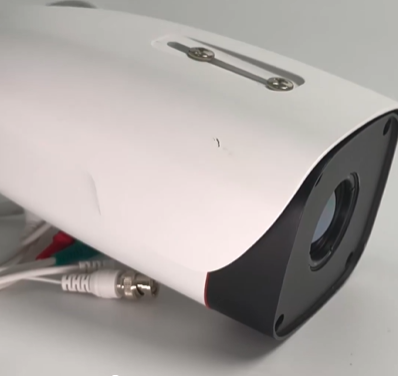

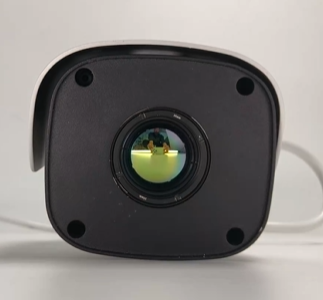

FC460T Thermal Bullet Camera
FC4T thermal bullet camera equipped a high-resolution, 12 μm pixel pitch thermal detector with various lens options.
It supports tripwire/intrusion detection and it integrated temperature analysis methods and fire detection function.
It can be used for perimeter protection and fire prevention in residential areas and commercial facilities.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
|
|
|
|
|
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution384×288Pixel Pitch12μmFocal Length9.1mm/13mm/19mm/25mm | |
| Temperature Measurement | |
| Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing & Intrusion detection2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerDC 12V±25%/POE(802.3at)Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/1 outStorageMicro SD memory（maximum 256G）ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃； | |
Application Scenarios
|
Border and Coastal Surveillance |
Important Area Perimeter |
River Monitoring |
Urban High-Altitude Surveillance |
