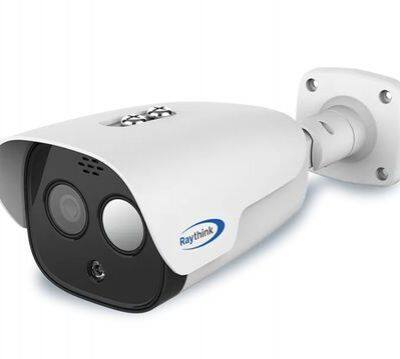

FC460A Observation Thermal Bullet Camera
FC4A thermal bullet camera equipped a 640×512, 12 μm pixel pitch thermal detector with a focal length up to 75mm.
It supports tripwire/intrusion detection.
It can be used for perimeter protection in critical facilities.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
Feature
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Long-Range Detection
Supports 35mm/55mm/75mm fixed-focus infrared lenses to meet long-range detection needs.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
| Detector Type | VOx, uncooled FPA detectors |
|---|---|
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 35mm/55mm |
| Fire Detection | Support |
|---|---|
| VCA | Support Line Crossing & Intrusion detection |
| 2-Way Audio | Support |
| Linkage Action | Video/ Snapshot/Email/Alarm output/sound and light alarm |
| Power | DC 12V±25%/POE(802.3at) |
|---|---|
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in/1 out |
| Storage | Micro SD memory（maximum 256G） |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| Analog | 1 BNC |
| Work Environment | -40℃~+70℃； |
|---|---|
| Protection | IP66 |
| Certification | CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3 |
| Power Consumption | ≤4W |
| Dimenstion(mm) | 334.7×121.5×104.4 |
| Weight | ≤1.5kg |
Application Scenarios
