Disc Pelletizer Pan Granulation Organic Compound Fertilizer Processing Machine

Product Overview

The Disc Pelletizer, also known as a Pan Granulator, is a highly efficient and versatile agglomeration device central to modern compound fertilizer manufacturing equipment lines. It operates on the principle of centrifugal force, friction, and gravity to transform fine powder materials into uniform, spherical granules. This machine is renowned for its high pelletizing rate, controllable particle size, and robust performance, making it a preferred choice for a wide range of applications, from organic fertilizer production to bentonite agglomeration.

Key Features

High Granulation Rate: Achieves a granulation rate of over 93%, maximizing product yield and minimizing raw material loss.

Adjustable Disc Angle & Rotation Speed: The inclination and rotational speed of the disc are easily adjustable, allowing for precise control over granule size and density.

Uniform Granule Formation: Produces strong, spherical, and uniform pellets with excellent appearance.

Corrosion-Resistant Lining: The disc is often lined with special materials to prevent adhesion and resist corrosion, ensuring a long service life.

Low Power Consumption: Designed for energy efficiency, reducing overall operational costs.

Versatile Application: Suitable for a wide range of raw materials, including organic waste, compost, chemical powders, and clay minerals.

Simple Structure, Easy Maintenance: The straightforward design allows for easy operation, cleaning, and maintenance.

Applications

This granulator is incredibly versatile, serving numerous industries and scales of production:

Organic Fertilizer Granulator: Perfect for converting fermented organic waste, compost, and peat into valuable fertilizer granules.

Fertilizer Granulator for Compost: Efficiently turns finished compost into a uniform, easy-to-handle, and marketable product.

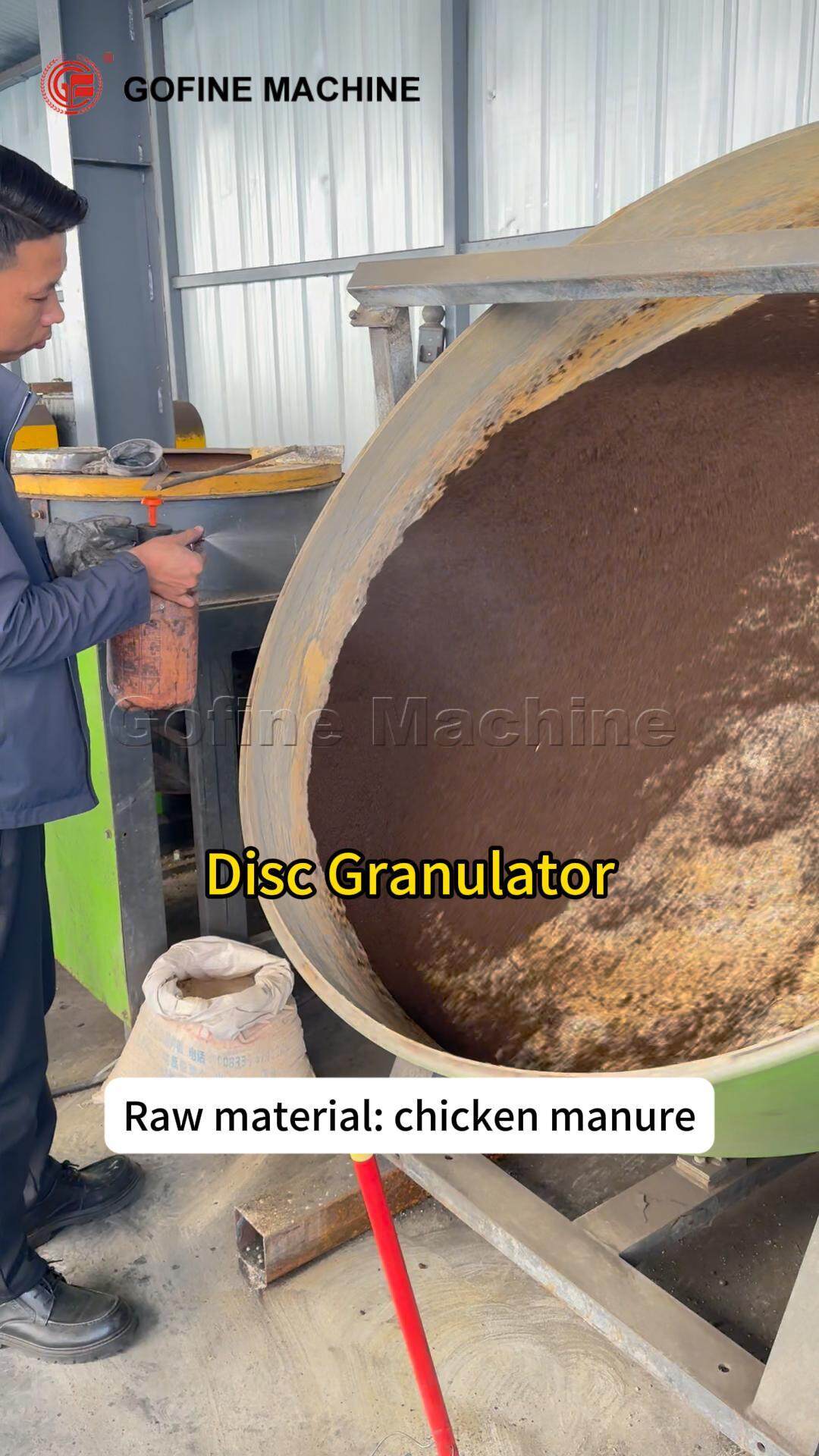

Fertilizer Granulator for Poultry: Directly processes and granulates poultry manure into high-value organic fertilizer.

Compound Fertilizer Manufacturing Equipment: A core component in NPK fertilizer production lines, where multiple nutrients are combined into a single granule.

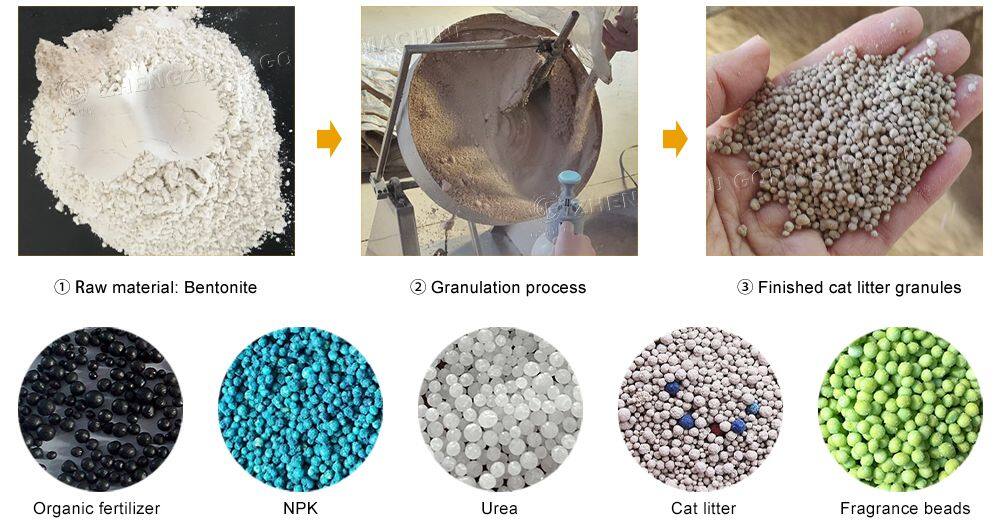

Bentonite Disc Granulator: Ideal for the agglomeration of bentonite clay for use in foundry, civil engineering, and animal feed.

Scalable Solutions: Available in various sizes to function as a high capacity fertilizer granulator for large farms or a compact small scale fertilizer granulator for startups and specialized production.

Custom Fertilizer Granulator: Designs can be customized to meet specific raw material characteristics and output requirements.

Working Process

The operation of the Disc Pelletizer is a continuous and visual process:

Feeding: The raw powder mixture (e.g., compost, fertilizer formula, bentonite) is continuously fed onto the rotating disc.

Liquid Spraying: A fine mist of binder or water is sprayed onto the bed of material to initiate nucleation.

Nucleation and Growth: As the disc rotates, the moistened fines collide and adhere, forming small seed particles (nuclei). These nuclei are continuously lifted by the rotation and then tumble down through the incoming feed, acting as a core for layered growth, much like a rolling snowball.

Spheronization: The tumbling and rolling motion inside the disc gradually shapes the particles into dense, spherical granules.

Discharge: Once the granules reach the desired size, they overflow the rim of the disc due to centrifugal force and are discharged for the next stage, typically drying and screening.

This entire pelletizing process is easily observable, allowing operators to make real-time adjustments for optimal results.

Production Details

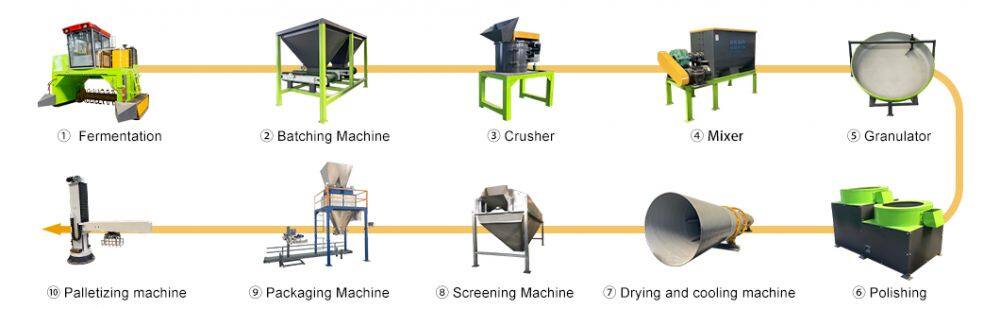

Disc granulation production line process

Our company provides complete disc granulation production line solutions, covering all aspects from initial design and equipment supply to installation and commissioning. This includes core equipment such as raw material mixers, high-efficiency disc granulators, post-processing dryers and coolers, and automated packaging systems. We offer reliable, customized systems dedicated to maximizing your output and product quality, and provide ongoing technical support.
